- Illuminate: The Transmitter and Receiver are in good connections
- Flashing: The Transmitter and Receiver are in poor connections
- Dark: The Transmitter and Receiver are not connected.

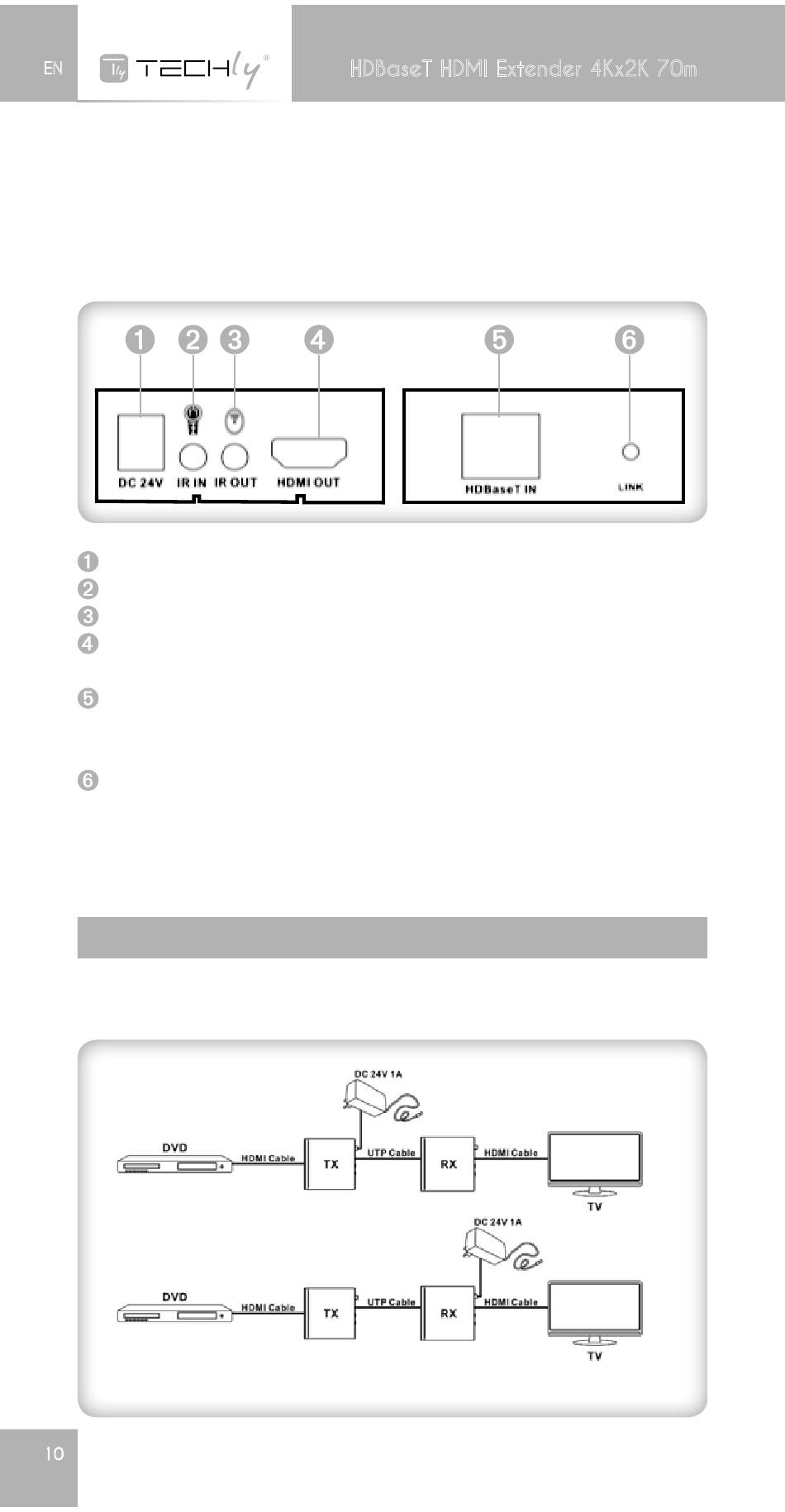

rECEIVEr
dC In: Plug the 24V DC power supply into the unit.
Ir In: Channel 1 IR Receiver. Connect with Wideband IR Rx.
Ir OUt: Channel 2 IR Transmitter. Connect with Wideband IR Tx.
HdMI OUt: HDMI output port. This slot is where you connect the
HDTV or monitor with HDMI cable.
Hd Baset In: Standard HD BaseT signal input port. Connect
HD BaseT transmitter with a UTP cable following the standard of
IEEE-568B.
LInK LEd: The connection status indicating lamp- Illuminata: Il
trasmettitore e il ricevitore sono collegati correttamente.
- Illuminate: The Transmitter and Receiver are in good connections
- Flashing: The Transmitter and Receiver are in poor connections
- Dark: The Transmitter and Receiver are not connected.
dEsCrIPtIOn 1
POE (POwEr OVEr EtHErnEt) aPPLICatIOn ExaMPLE
10
HDBaseT HDMI Extender 4Kx2K 70m
