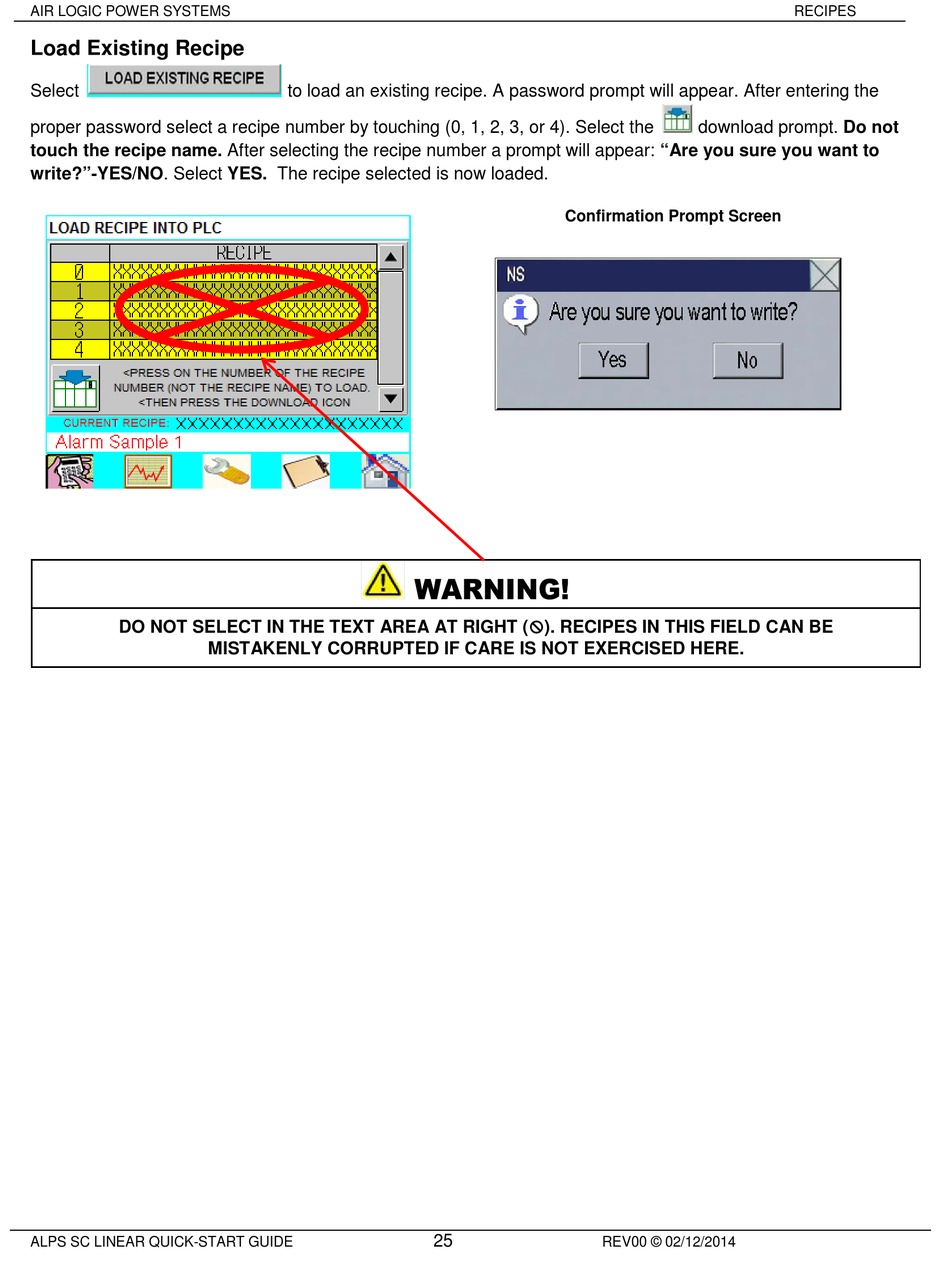

Load Existing Recipe - Alps Electric SC Linear Leak Tester Quick Start Manual

AIR LOGIC POWER SYSTEMS RECIPES

Load Existing Recipe

Select to load an existing recipe. A password prompt will appear. After entering the
proper password select a recipe number by touching (0, 1, 2, 3, or 4). Select the download prompt. Do not
touch the recipe name. After selecting the recipe number a prompt will appear: "Are you sure you want to
write?"-YES/NO. Select YES. The recipe selected is now loaded.
Confirmation Prompt Screen
DO NOT SELECT IN THE TEXT AREA AT RIGHT (). RECIPES IN THIS FIELD CAN BE
MISTAKENLY CORRUPTED IF CARE IS NOT EXERCISED HERE.
25
ALPS SC LINEAR QUICK-START GUIDE REV00 © 02/12/2014
