Manual Setup; Setting The Probe Height - Alps Electric SC Linear Leak Tester Quick Start Manual

AIR LOGIC POWER SYSTEMS (ALPS)
Manual Guided setup continued

Manual Setup

Proceed with Mechanical Instructions (Manual Setup)
Steps:

1. Setting the Probe Height

SS models only. Probe height is adjusted by raising and lowering the probe assembly on the mast until
desired height is attained. Next page: Set the probe height to 1/8
using the handle (picture below) on the probe assembly to fine-tune, set and secure the adjustment.
pages 1-10, 3-1, and 3-90.

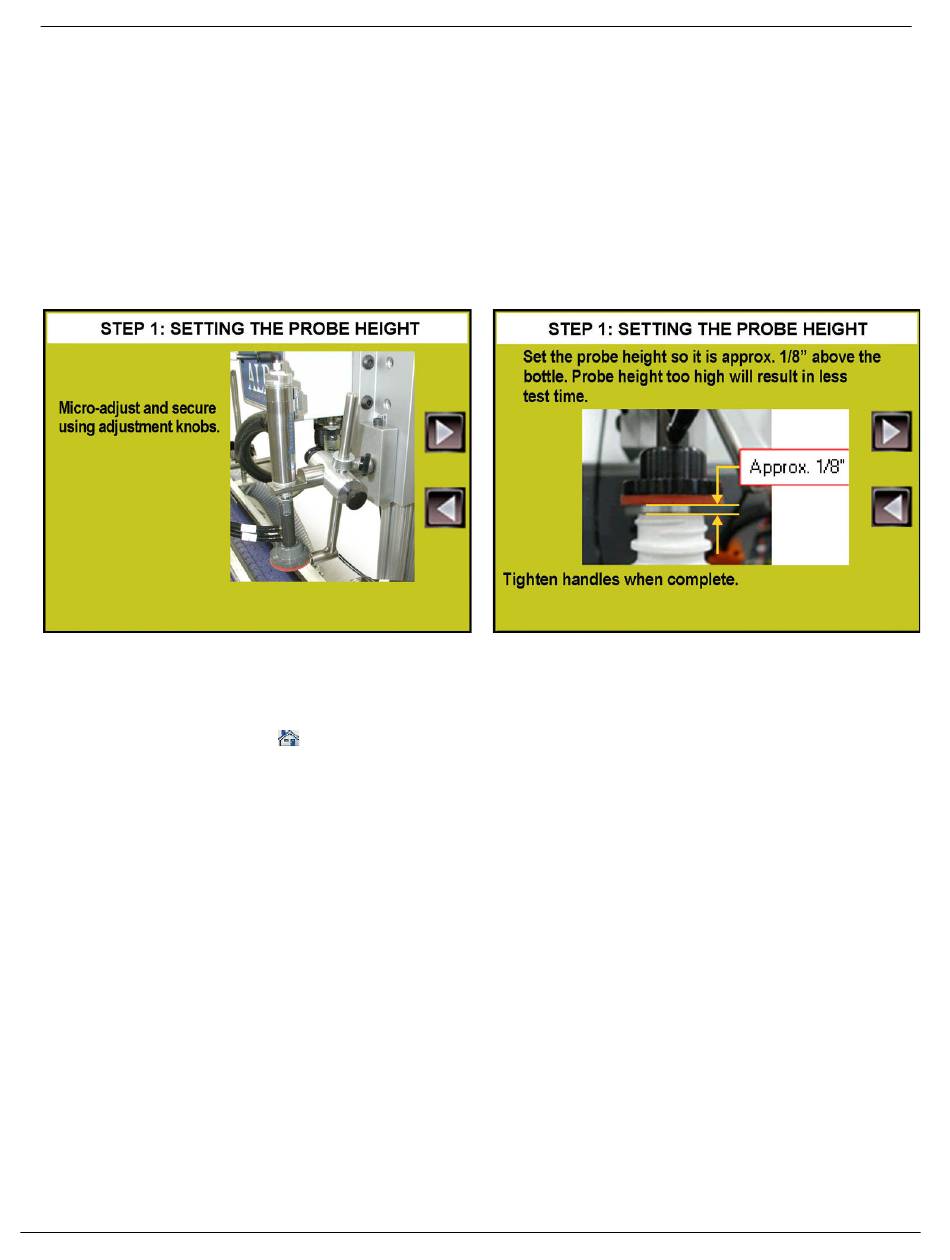

SS Vertical adjustment and probe height.
The "relaxed" setting for the Probe Height should be 1/8" above the opening of the container as shown in the
upper right screen.
Press the CLOSE/HOME (
ALPS SC LINEAR QUICK-START GUIDE
) BUTTON to return to the HOME SCREEN/MAIN MENU.
Note: Screens are shown in order when scrolling right.
10
th
inch. Lock-in the probe height setting
REV00 © 02/12/2014
GUIDED SETUP
See
