AIR LOGIC POWER SYSTEMS (ALPS) GUIDED SETUP

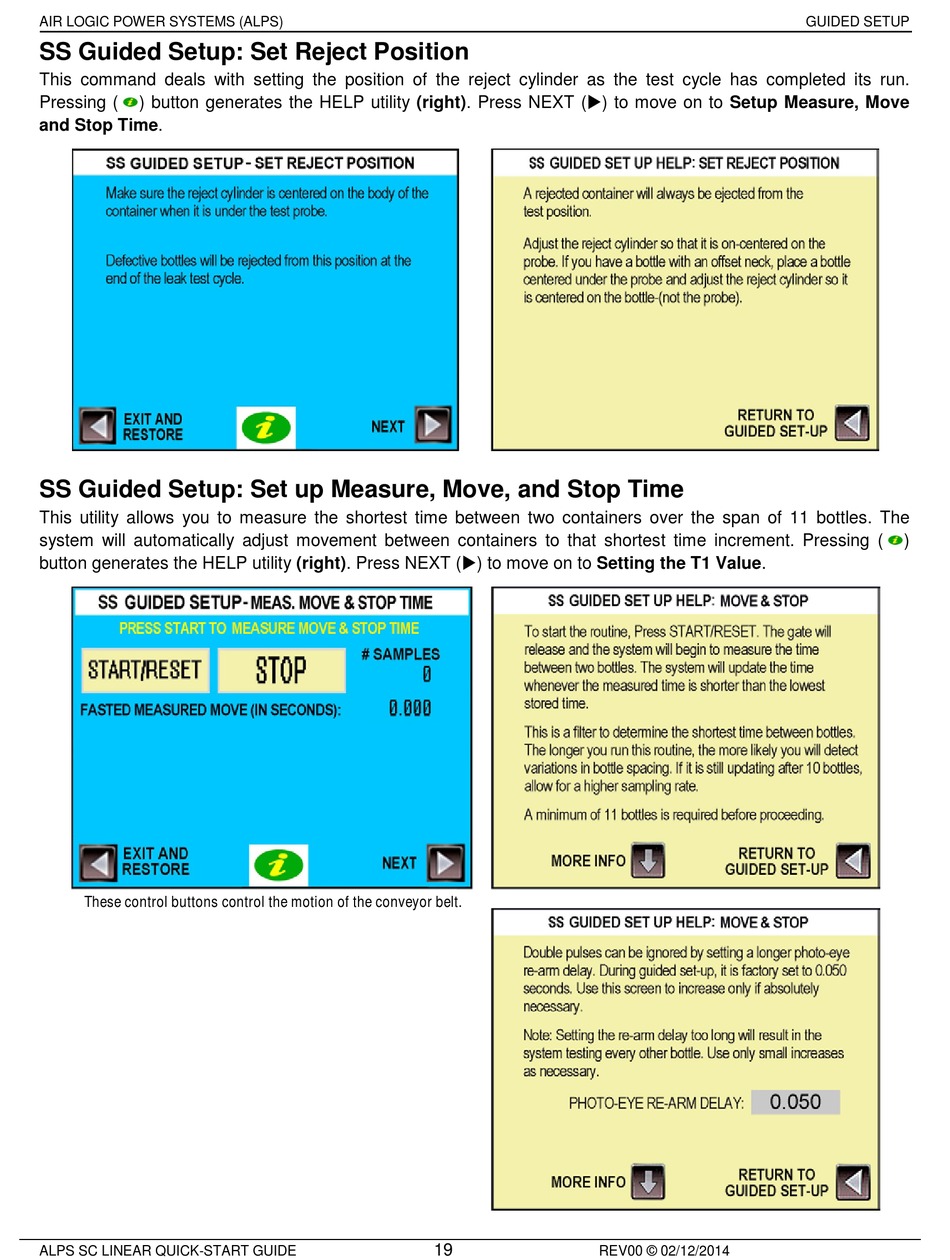

SS Guided Setup: Set Reject Position

This command deals with setting the position of the reject cylinder as the test cycle has completed its run.
Pressing ( ) button generates the HELP utility (right). Press NEXT () to move on to Setup Measure, Move
and Stop Time.

SS Guided Setup: Set up Measure, Move, and Stop Time

This utility allows you to measure the shortest time between two containers over the span of 11 bottles. The
system will automatically adjust movement between containers to that shortest time increment. Pressing ( )
button generates the HELP utility (right). Press NEXT () to move on to Setting the T1 Value.
These control buttons control the motion of the conveyor belt.
19
ALPS SC LINEAR QUICK-START GUIDE REV00 © 02/12/2014
