AIR LOGIC POWER SYSTEMS (ALPS) GUIDED SETUP

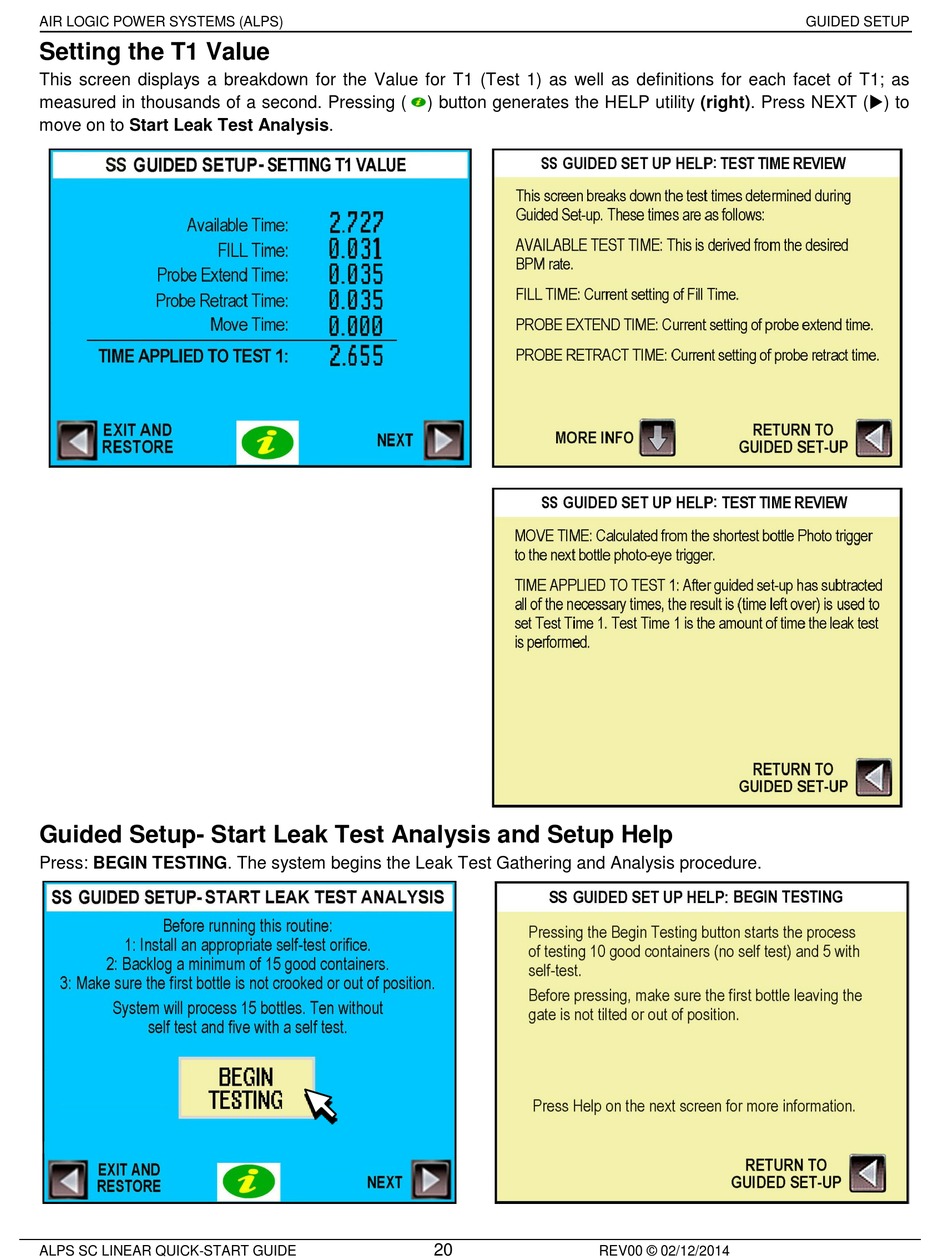

Setting the T1 Value

This screen displays a breakdown for the Value for T1 (Test 1) as well as definitions for each facet of T1; as
measured in thousands of a second. Pressing ( ) button generates the HELP utility (right). Press NEXT () to
move on to Start Leak Test Analysis.

Guided Setup- Start Leak Test Analysis and Setup Help

Press: BEGIN TESTING. The system begins the Leak Test Gathering and Analysis procedure.
20
ALPS SC LINEAR QUICK-START GUIDE REV00 © 02/12/2014
