AIR LOGIC POWER SYSTEMS (ALPS)

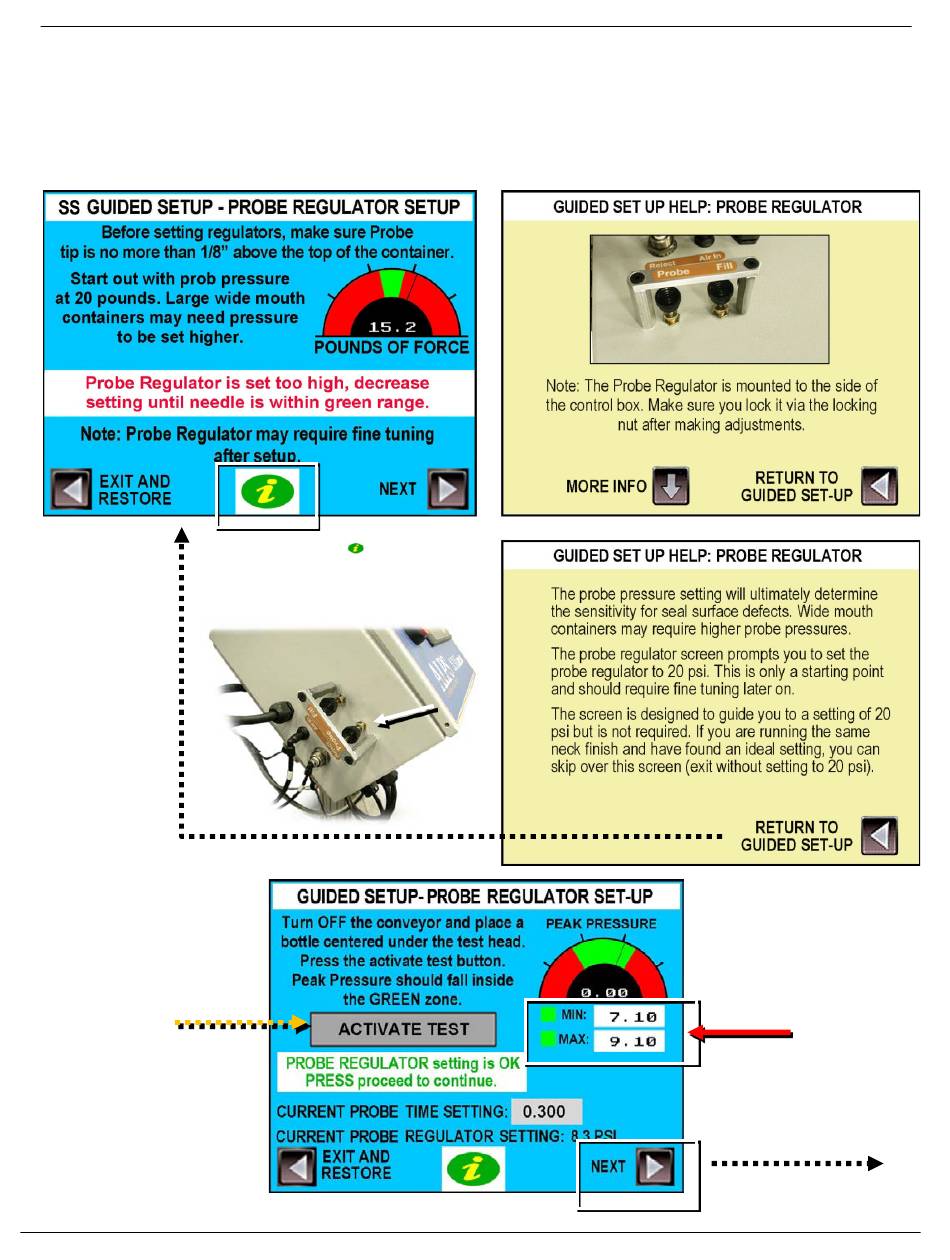

Guided Setup-Probe Regulator Setup and Guided Setup Help
Probe Regulator Setup
If a RED FAIL message appears as shown below, adjust the Probe regulator knob until the black line aligns inside
the green area of the pressure gauge. A new screen appears and a PASS message in GREEN appears indicating
that the setting is OK. Press ACTIVATE TEST to continue. The NEXT button in the lower-right corner appears.
Press NEXT to continue on to the FILL regulator setting adjustment.
Pressing the ( ) button
help utility prompts this
series of help screens to
Press: ACTIVATE TEST.
The NEXT button will
appear.
ALPS SC LINEAR QUICK-START GUIDE
14
REV00 © 02/12/2014
GUIDED SETUP
Note: MIN/MAX values are
standard default values and
cannot be changed.
Continue to Fill Regulator
Setup screen
