1

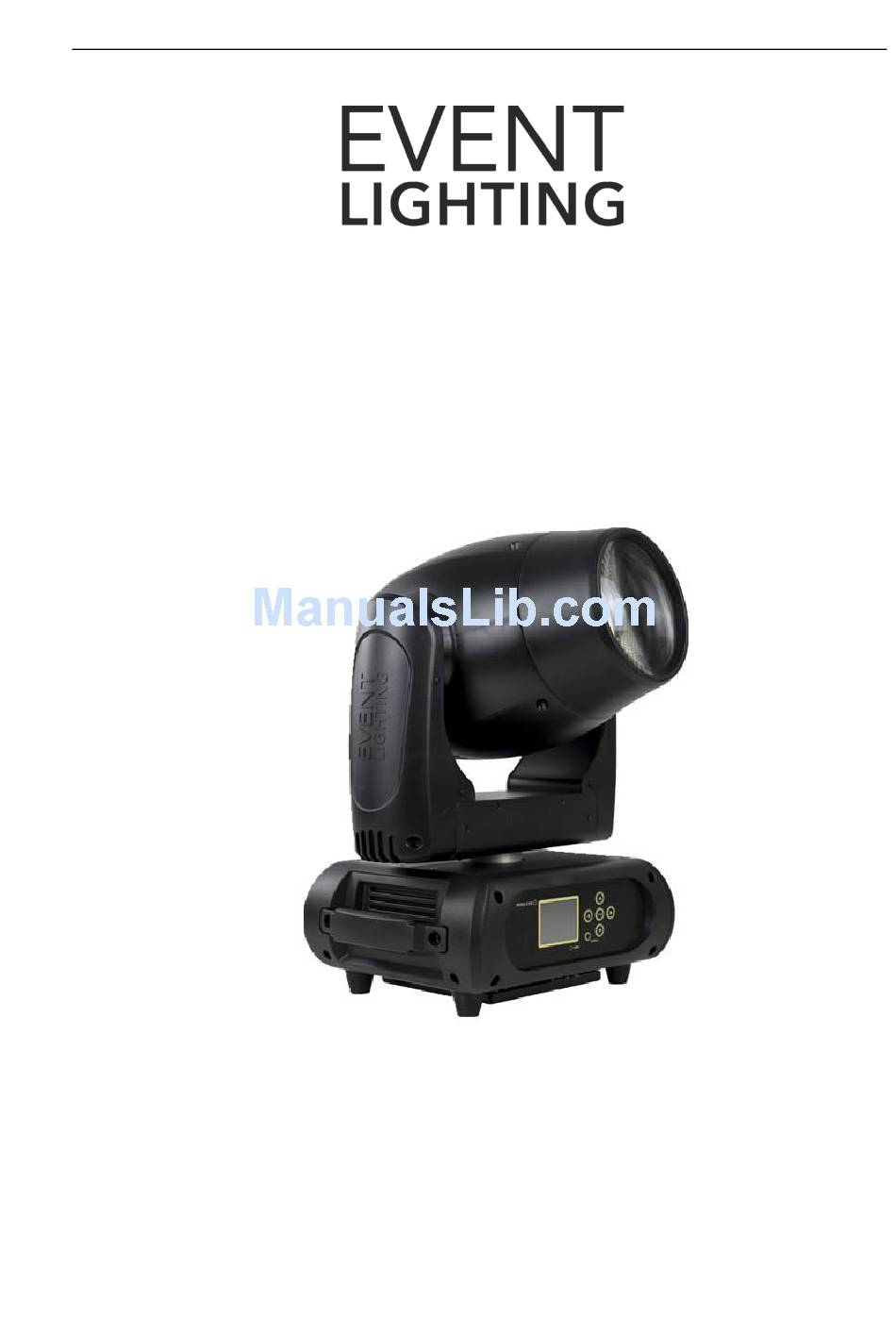

SPOT MOVING HEAD
M1B60W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.1
Advertisement
Table of Contents
Related Manuals for Event Lighting M1B60W
Summary of Contents for Event Lighting M1B60W
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item. -
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... - Page 3 Product appearance, LUX chart, Dimensions Project lens Head Base Display Foot stand Operation button Handle 9. Wireless indicator 10. Mic 11. Left button 12. Battery indicator 13. Up button 14. Down button 15. Enter button 16. Right button 17. 3-pin DMX in 18.
-
Page 4: Gobo Wheel
Colour wheel Open Magenta Orange Sky blue Pink Yellow Green Blue Gobo wheel... - Page 5 Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Address① DMX address setting Wireless① Wireless Enabled Max Temperature① 80~139℃, 80℃...
- Page 6 Brand Show① ON/OFF Show brand or not Key Lock① ON/OFF Key lock on/off Language① En/简/繁/Fr/Sp Language Select Users User Mode① Standard Standard mode Extended Extended mode Basic-8bit Basic mode-8bit Basic-16bit Basic mode-16bit User User program mode Edit User③ Max Channel = XX Edit users mode PAN = CH01 Calibration③...
- Page 7 DMX Chart Channel name function Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement fastest to Slowest Speed Normal Movement Movement With Blackout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions Close Strobe Rate (slow to fast)
- Page 8 Indexed Indexed With Blackout Forward Spin Color Function Reverse Spin Continuous Color Bounce Indexed & Indexed With Blackout Position 1 (Open) Position 2 ~ Position 9 Forward Spin Stop to fastest Color Reverse Spin Stop to fastest Continuous Positioning from 0-360 degrees Color Bounce Position 1 (Open) Position 2 ~ Position 18...
- Page 9 Indexed Position 1 (Open) Position 2 ~ Position 12 Indexed With Blackout Position 1 (Open) Position 2 ~ Position 12 Gobo Indexed With Shake Position 2 Position 3 ~ Position 12 Forward Wheel Spin Stop to fastest Reverse Wheel Spin Stop to fastest Indexed &...
-
Page 10: Technical Specifications
More functions RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at manufacture to distinguish from each other.
