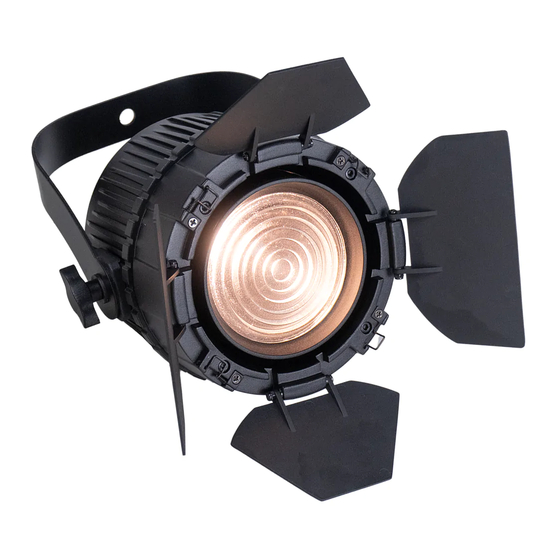

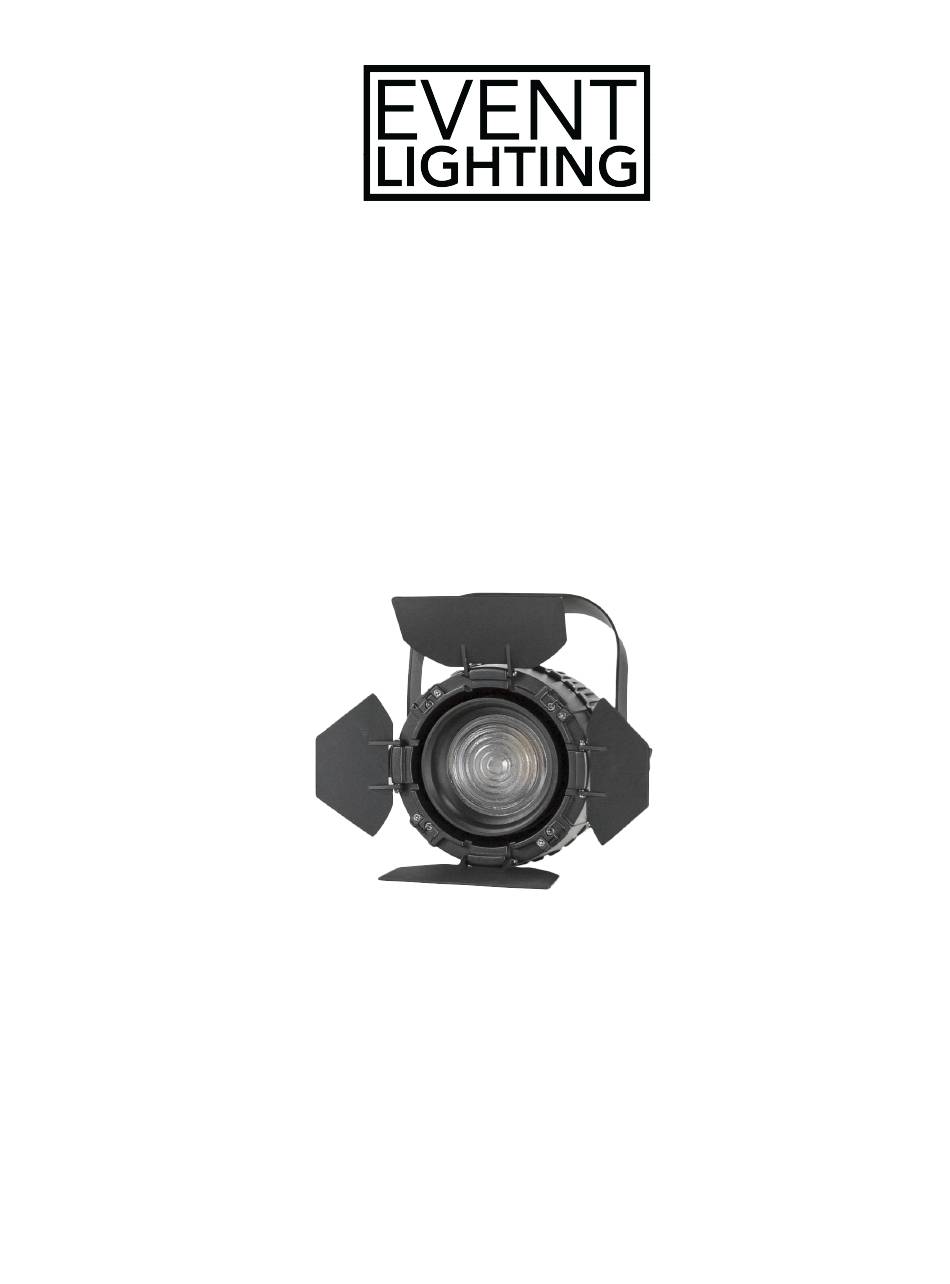

Fresnel
Model No. F2X48
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 3.0
Advertisement
Table of Contents
Related Manuals for Event Lighting Fresnel
Summary of Contents for Event Lighting Fresnel
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Lux chart Dimensions Control Board Operation DMX address setting DMX modes setting Manual colour setting Master/slave setting DMX chart Technical specifications Warranty...
- Page 3 www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
- Page 4 www.event-lighting.com.au Lux Chart Dimensions...
- Page 5 www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function DMX Add <001> - <508> To set DMX address DMX Cha <01>, <02>, <05> To set DMX channel modes Preset <StraW> <WarmW> <White> To select colour from 5 preset colour temperature modes <CoolW>...
- Page 6 www.event-lighting.com.au Fade Mode DMX Chart 1 channels Mode Channel Value Function 000 - 255 Dimmer & Colour temperature 2 channels Mode Channel Value Function 000 - 255 Dimmer 0% ~ 100% 000 - 255 Warm white to cool white...
- Page 7 www.event-lighting.com.au 5 channels Mode Channel Value Function 000 - 255 Master dimmer coarse: 0% ~ 100% 000 - 255 Master dimmer fine: 0% ~ 100% 000 - 255 Warm white to cool white 000 - 007 Shutter closed (No light) 008 - 015 Shutter on 016 - 119...
- Page 8 Housing Materials: Die- cast Aluminum Housing Housing Finishing: Matte Black Cooling: Fanless Cooling with Temperature Protection Net Weight: 2.3 kg Dimension: 202 X 139 X 193mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
