F100/F200/F300WWMZ

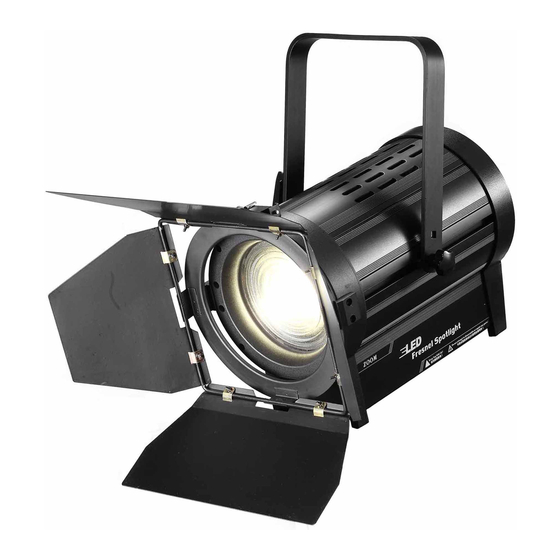

100/200/300 W Warm White Fresnel
USER MANUAL
For your safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: A109.1
Advertisement
Table of Contents
Related Manuals for Event Lighting F100WWMZ
Summary of Contents for Event Lighting F100WWMZ
- Page 1 For your safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Safety Instructions
www.event-lighting.com.au Safety Instructions Warning • Do not open this device, there are no user serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit’s housing may become hot during and after operation. •... -
Page 3: Lux Chart
www.event-lighting.com.au Dimensions Lux Chart Control Panel Operation Menu – Move up one level. Up – Move up one item. Down – Move down one item. Enter – Move down one level / confirm selection. - Page 4 www.event-lighting.com.au Menu Level 1 Level 2 Value Information DMX address 1-512 Set DMX address CHAN CH01 Use 1 channel mode CH02 Use 2 channel mode CH03 Use 3 channel mode Manual 0-255 Manual control of Dimmer 0-255 Manual control of Dimmer-Fine 0-255 Manual control of Strobe CURVE...
-
Page 5: Dmx Chart
www.event-lighting.com.au DMX Chart • This fixture is controlled by the universal DMX 512 protocol. The DMX address is the first channel used to receive instructions from the external controller. For independent control, each fixture must be assigned a unique address for each of its control channels. For example, this device has three channel modes: 1/2/3, if it’s set to 3 channel mode, and there are several fixtures need to be independently controlled, we just simply address first fixture at 1, and second fixture at 4, third one at 7, etc. -
Page 6: Technical Specifications
Technical Specifications F100WWMZ Photometrics • Light Source: 100 W 3,000K COB LED • CRI: 90 • Beam Angle: 12°~25° • Field Angle: 30°~65° • Output: 4928 lux @ 2.5 m @ 12°, 2005 lux @ 2.5 m @ 25°... - Page 7 www.event-lighting.com.au F200WWMZ Photometrics • Light Source: 200 W 3,200K COB LED • CRI: 90 • Beam Angle: 16°~25° • Field Angle: 30°~65° • Output: 7524 lux @ 2.5 m at 12°, 3505 lux @ 2.5 m at 25° • Lens: 150 mm Fresnel •...
-
Page 8: Warranty
DMX Channel Mode: 1 / 2 / 3 • Control Interface: 3-pin XLR Housing • Housing Materials: Aluminium and ABS, matte black finish • Cooling: Sensor Thermostat Controlled Variable Speed Fan • Net Weight: 5 kg Warranty Please refer to your local dealer or contact Event Lighting.
