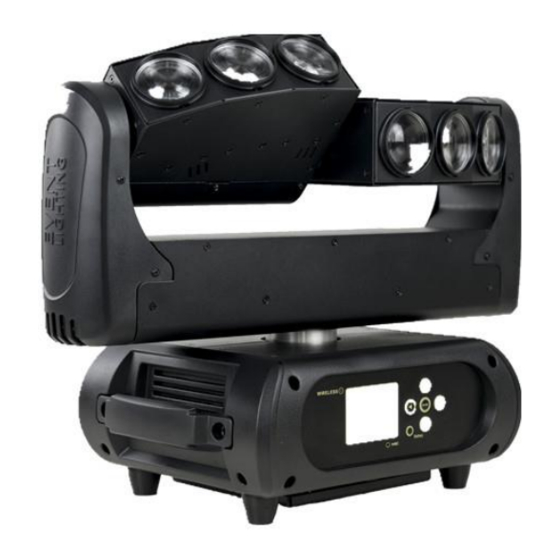

Event Lighting M6B20W User Manual

Multihead beam
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
MULTIHEAD BEAM
M6B20W & M6B10RGBW

USER MANUAL

For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6B20W and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting M6B20W

Summary of Contents for Event Lighting M6B20W

  • Page 1: User Manual

    For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

  • Page 2: Safety Instructions

    Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...

  • Page 3: Product Appearance, Lux Chart, Dimensions

    Product Appearance, LUX Chart, Dimensions M6B20W M6B10RGBW...
  • Page 4 Project lens Head Base Display Foot stand Operation button Handle Wireless indicator 10. Mic 11. Left button 12. Battery indicator 13. Up button 14. Down button 9 10 11 12 13 15. Enter button 16. Right button 17. 3-pin DMX in 18.

  • Page 5: Menu Operation

    Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Address① DMX address setting Wireless① Wireless Enabled Max Temperature① 80~139℃, 80℃...
  • Page 6 Display Bright③ 00~31 10 Display Brightness Brand Show① ON/OFF Show brand or not Key Lock① ON/OFF Key lock on/off Language① En/简/繁/Fr/Sp Language Select Users User Mode① Standard Standard mode Extended Extended mode Basic-8bit Basic mode-8bit Basic-16bit Basic mode-16bit User User program mode Edit User③...
  • Page 7 DMX Chart for M6B20W Channel name function Min DMX Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement fastest to Slowest Speed Normal Movement Movement With Blackout Function...
  • Page 8 Shutter closed Effect 1 slow to fast Effect 2 slow to fast Strobe effect slow to fast Effect 3 slow to fast Shutter Effect 4 slow to fast Pulse-effect in sequences Effect 5 slow to fast Effect 6 slow to fast Random strobe effect slow to fast No function (shutter open) Dimmer...
  • Page 9 DMX Chart for M6B10RGBW Channel name function Min DMX Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement fastest to Slowest Speed Normal Movement Movement With Blackout Function All Tilt Movement Normal Shutter Functions Pulse-effect Forward...
  • Page 10 Shutter closed Effect 1 slow to fast Effect 2 slow to fast Strobe effect slow to fast Effect 3 slow to fast Shutter Effect 4 slow to fast Pulse-effect in sequences Effect 5 slow to fast Effect 6 slow to fast Random strobe effect slow to fast No function (shutter open) Dimmer...
  • Page 11 Color Bounce Black Red=full, Green->up,Blue=0,White=0 Red->down, Green=full,Blue=0,White=0 Red=0 Green=255 Blue->up White=0 Red=0 Green->down Blue=255 White=0 Red=0 Green=0 Blue=255 White->up Virtual Color2 Red=0 Green=0 Blue->down White=255 Red->up Green=0 Blue=0 White=255 Red=255 Green=0 Blue=0 White->down Green Blue White All Color Black Color Continuous Color A Green Blue...
  • Page 12 Green Blue White All Color Black Color Continuous Color F Green Blue White All Color Normal Reset All Pan & Tilt Reset Control Display Off Display On Hibernation The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller.

  • Page 13: More Functions

    More functions RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at manufacture to distinguish from each other.

  • Page 14: Technical Specifications

    Technical Specifications M6B20W M6B10RGBW Input Voltages 100V~240V AC, 50/60Hz Power Consumption 206W 134W Light source 6 pcs 20W white LED 6 pcs 10W RGBW LED Power Connection Neutrik® Powercon input and output connection LED life 60,000 hours 32000 lux @2.5M for per beam...

This manual is also suitable for:

M6b10rgbw
