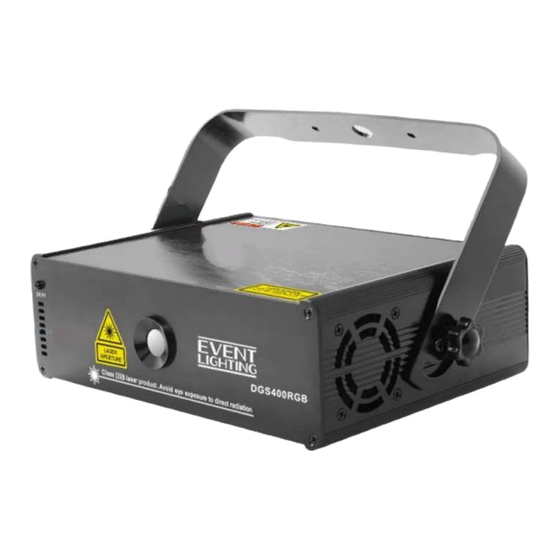

Event Lighting DGS400RGB User Manual

Event Lighting DGS400RGB User Manual

Dgs series animation laser

Advertisement

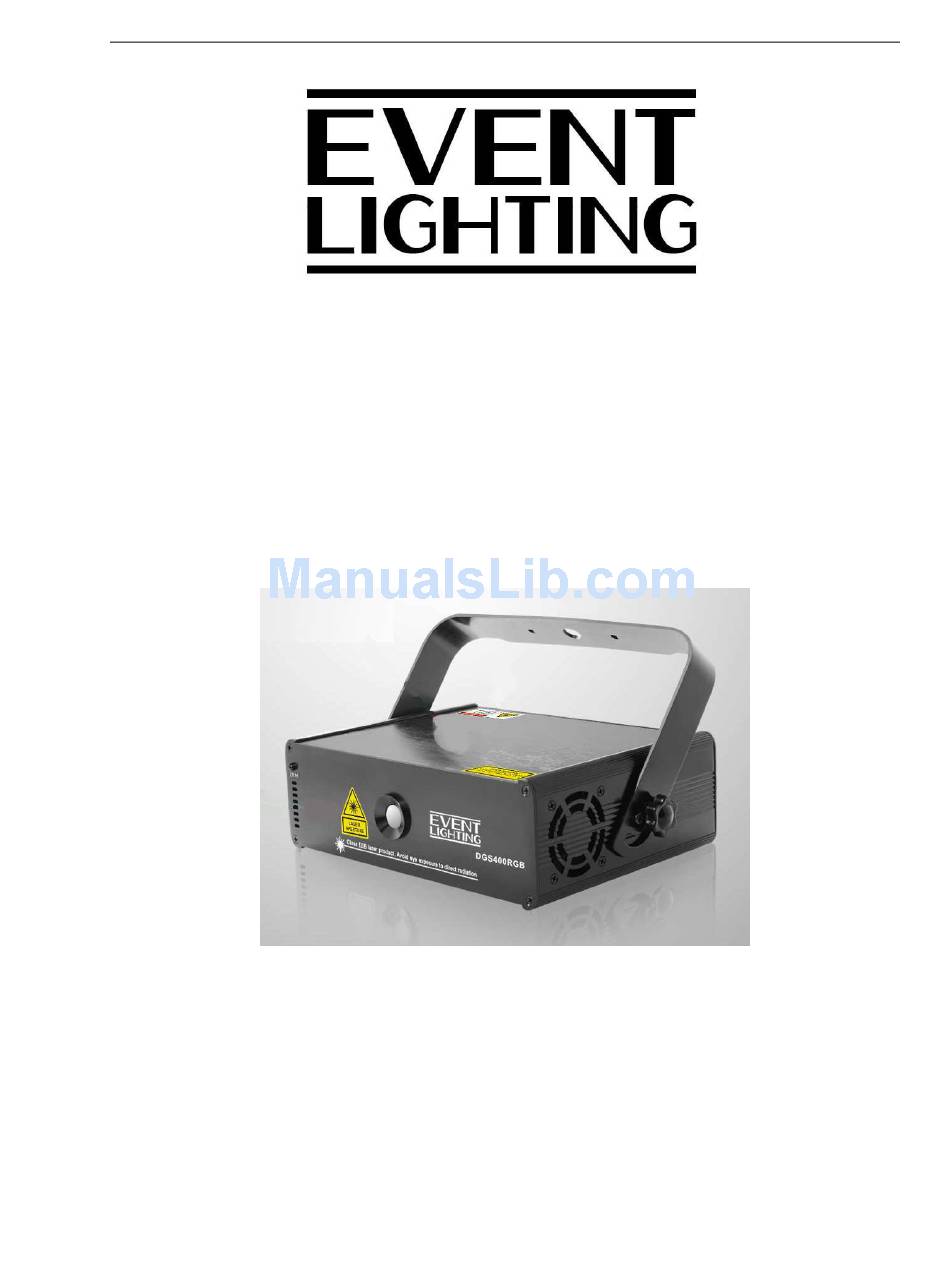

1
DGS Laser
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGS400RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for Event Lighting DGS400RGB

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
  • Page 2: Table Of Contents

    CONTENTS Safety Instructions Product Installation Rear Panel Control Board Operation Standalone Mode DMX Modes DMX Values IR Remote control Warranty Laser Emission Data Specifications...
  • Page 3: Safety Instructions

    Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
  • Page 4: Rear Panel

    Rear Panel DMX input 3PIN Male XLR port, using for DMX DMX output 3PIN Female XLR port,using for DMX Digital display Display mode or address code Safety Loop Attach the safety cable Turn the knob (potentiometer) until the laser works in sync with the music. Mic Sensitivity Knob To turn the laser effect (laser diode) ON/OFF.
  • Page 5: Control Board Operation

    CONTROL BOARD OPERATION Press the "MODE" button to enter the mode select state cycles display panel display "AorS", "Soud", "AUTO", "d***", "SLAV", "OFF" six modes. . "d***" mode, press "UP" or "DOWN" key to select the DMX address. . Press the "ENTER" button to save the current operating mode or address code. OPERATING MODE DESCRIPTION DISPLAY MODE...
  • Page 6 DMX CHANNELS DESCRIPTION: Blackout Manual mode, out of bounds through the mode; when the channel value is less than 5, the pattern 1-49 size will shrink. Manual mode, out of bounds for the exhumation mode, when the channel value is less than 55, the 50 - 99 pattern size will shrink.
  • Page 7 Dynamic level of zoom effect, every 32 values for some of each for different levels of zoom effect, in the 64-255 same paragraph, the greater the value the faster the action. 0-63 The static vertical scaling adjustment. Dynamic vertical zoom effect, every 32 values for CH8 / 19 Scale some, each for different vertical zoom effect, in the...
  • Page 8: Ir Remote Control

    AUTO: Auto Run Mode SOUND: Sound Active Mode WARRANTY Please refer to your local dealer or please contact Event Lighting. LASER EMISSION DATA * As measured under IEC measurement conditions for classification. Laser Classification: Class 3B Green Laser Medium DPSS: Nd:YVO4+KTP,532nm Red Laser Medium LD:...
