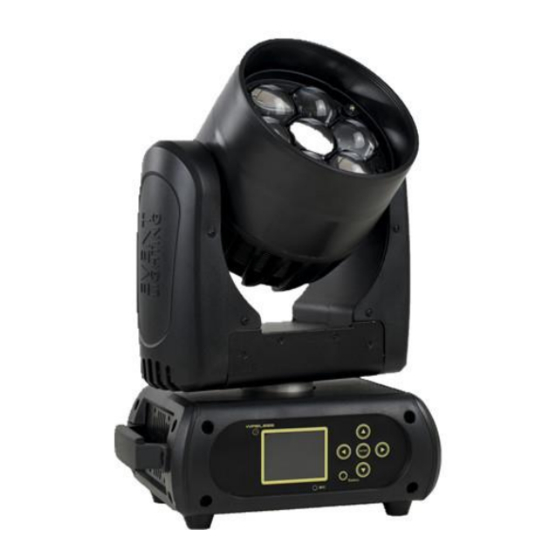

Event Lighting M7W15RGBW User Manual

Wash moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

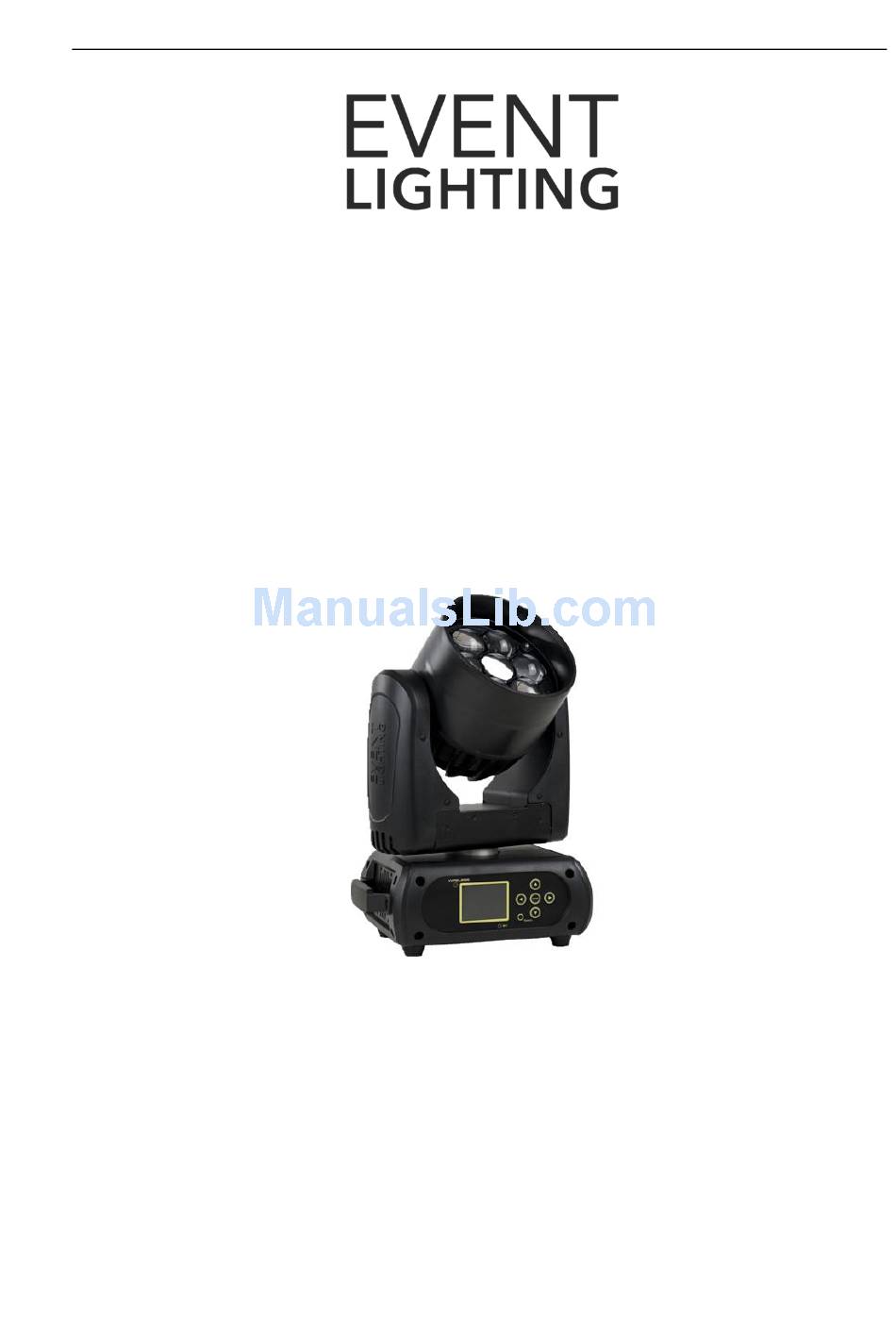

1
WASH MOVING HEAD
M7W15RGBW

USER MANUAL

For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7W15RGBW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting M7W15RGBW

Summary of Contents for Event Lighting M7W15RGBW

  • Page 1: User Manual

    For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

  • Page 2: Safety Instructions

    Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...

  • Page 3: Product Appearance, Lux Chart, Dimensions

    Product Appearance, LUX chart, Dimensions Project lens Head Base Display Foot stand Operation button Wireless indicator Left Button Enter Button Down Button Up Button Right Button Fuse Holder Powercon in Power switch Powercon out 3-pin DMX out 3-pin DMX in...

  • Page 4: Menu Operation

    Fans Speed Near Lamp Fan (depends on fixture) Fan speed Sensors Channel Value Display value of channel Error Message Error channels Fixture Model M7W15RGBW Display brand and model Software Ver 1U01 V1.0.00 Version of each IC 2U01 V1.0.00 Reset Reset all Pan &...
  • Page 5 Key Lock① ON/OFF Key lock on/off Language① En/简/繁/Fr/Sp Language Select Users User Mode① Standard Standard mode Extended Extended mode Basic-8bit Basic-8bit mode Basic-16bit Basic-16bit mode User User program mode Edit User③ Max Channel = XX Edit users mode PAN = CH01 =XXX Calibration③...

  • Page 6: Dmx Chart

    DMX chart Channel name function Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement Speed fastest to Slowest Normal movement Function Movement With Blackout Normal Shutter mode Pulse-effect Forward Shutter Function Pulse-effect Reverse Random Strobe Normal Shutter mode with shutter close Normal Shutter mode speed slow to fast Normal Shutter mode with shutter Open...
  • Page 7 Color Bounce CTC Function Colour Temperature Correction 2000K->2700K White 3200K White 4200K White 5600K White 8000K Forward Spin Rainbow Effect (Slow->Fast) Reverse Spin Rainbow Effect (Slow->Fast) Continuous & Color Bounce Virtual Color1 Black Green Blue White Red=0, Green->up,Blue=full,White=0 Red=0, Green=full,Blue->down,White=0 Red->up, Green=full,Blue=0,White=0 Red=full, Green->down,Blue=0,White=0 Red=full, Green=0,Blue->up,White=0...
  • Page 8 Pattern control Pattern Effect 1~14 Pattern control Picture Effect 1-250 Pattern Speed Pattern Effect Slow-> Fast Pattern Direct access to Pattern of LED 1&LED 2 Byte 1 Bit 0 Bit0=Led1 Red Switch Bit 1 Bit1=Led1 Green Switch Bit 2 Bit2=Led1 Blue Switch Bit 3 Bit3=Led1 White Switch Bit 4...

  • Page 9: More Functions

    Display Off Display On Hibernation The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels. For example, this device has four channel modes: 19/50/18/20, if we set the mode at standard 20 channels mode, and there are several models need to be independently controlled, we just simply address first fixture at 1, and second fixture at 21, third one at 41, etc.

  • Page 10: Technical Specifications

    Technical Specifications Input Voltages: 100V~240V A, 50/60Hz Power Consumption: 125W Light source: 7 pcs Osram 15W RGBW LED Power Connection: Neutrik® Powercon input and output connection LED life: 60,000 hours Lux: 3,500 lumen, 9,700 lux RGBW full on @3M at 6° Beam angle: 6°to 60°...
