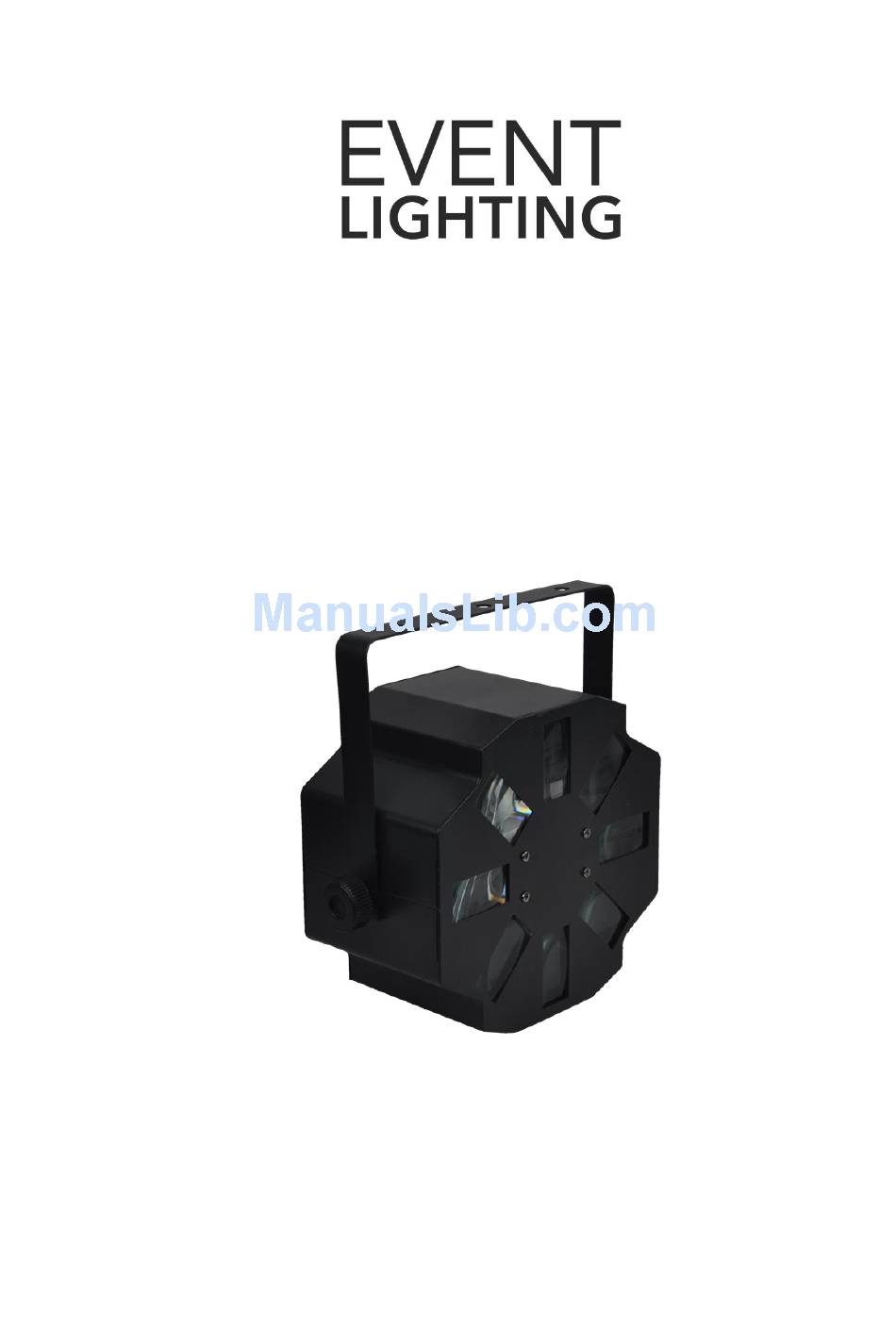

STORM

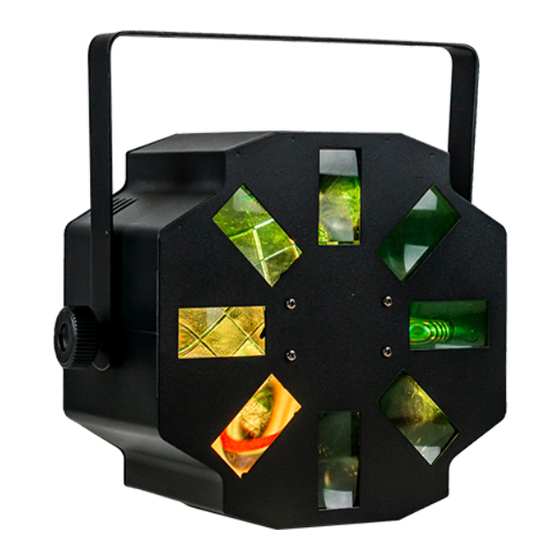

1 x Cree 12W RGBW LED moonflower multi beam effect light with DMX
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
Advertisement
Table of Contents
Related Manuals for Event Lighting SToRM
Summary of Contents for Event Lighting SToRM
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. - Page 2 www.event-lighting.com.au CONTENTS Introduction, safety instructions, product Installation Page 2 Dimensions, control board operation Page 3 Menu Map Page 4 DMX chart Page 5 Technical specifications, warranty Page 6...
-
Page 3: Safety Instructions
The saturated colours provide vivid output that looks great with or without fog - creating a veritable “storm” of dazzling beams. A range of simple control options makes this fixture as easy to use as “set and forget”... -
Page 4: Control Panel
www.event-lighting.com.au Dimensions Control Panel LED display DMX signal LED indicator (on/off) Master mode LED indicator (on/off) Slave mode LED indicator (on/off) Sound active mode LED indicator (flash/off) MENU/RETURN button (select an operation mode or return to previous screen) UP button DOWN button ENTER button (change or activate menu options) 10. -
Page 5: Menu Map
www.event-lighting.com.au Menu Map Press the MENU button to select an operation mode or return to previous menu. Use UP and DOWN button to navigate the menu. Press the ENTER button to change or activate menu options. -
Page 6: Dmx Chart
www.event-lighting.com.au DMX Chart Ch 1 ( 059 – 255 ) Function Ch 1 (000 – 058 ) Function Channel Value 000 - 058 Switch on colour dimmer DMX mode 059 - 078 Auto show 1 079 - 098 Auto show 2 099 - 118 Auto show 3 119 - 138... -
Page 7: Technical Specifications
-Operation modes: 8 Ch DMX, 7 sets of auto show, 2 sets of sound active show, master/slave mode, manual control mode -Fuse: F2A 250V -Net weight: 3.15kg -Overall size: 168 x 309 x 314 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
