DERBY3

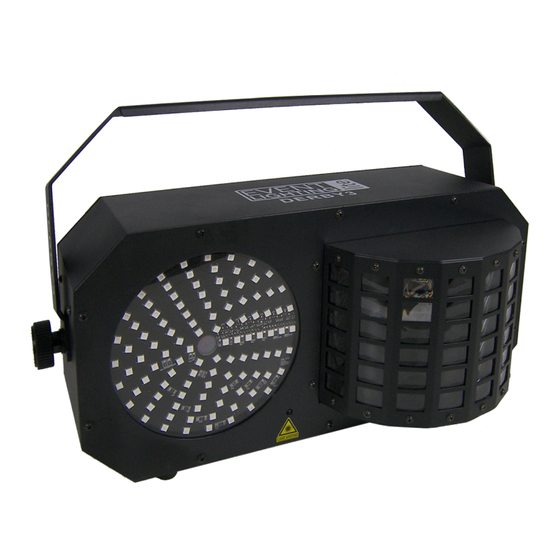

3-in-1 Lighting Effect: Derby, LED Strobe and flood light with RGB Laser
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual
are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or
omissions. Please consult Event Lighting for any clarification or information regarding this item.
Version 1.0
Advertisement
Related Manuals for Event Lighting DERBY3
Summary of Contents for Event Lighting DERBY3

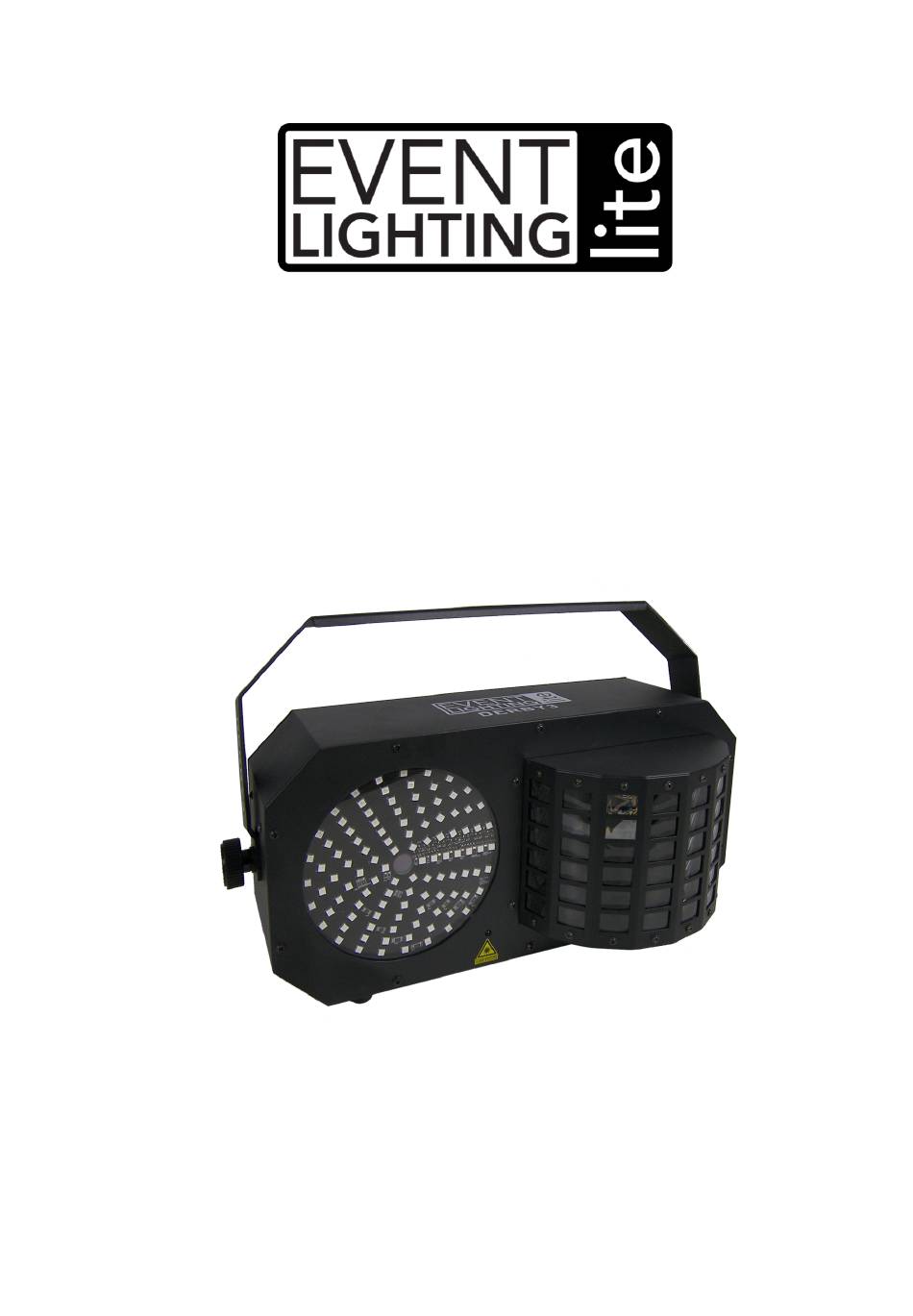

- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 LED laser effect light user manual Content ---------------------------------------------------------------------------------- P2 Introduction -------------------------------------------------------------------------- P3 Silkscreen symbol -------------------------------------------------------------------------P4 Safety/specification ----------------------------------------------------------------------P5 LED Display operation Channel ------------------------------------------------------------------------------------P6-7 Remote ---------------------------------------------------------------------------------------P8 DMX Connection and setting - --------------------------------------------------------P9 Installation Product size， --------------------------------------------------------------P10 - - 1 - -...
- Page 3 LED laser effect light user manual Thank you using our LED laser series products. This fixture is the latest new LED laser product.The product housing used Aluminum plastic material, beautiful appearance, with international advanced electronic control technology and excellent industrial design. Product effect more rich, colorful, and color is gorgeous because of installed high output light source.
- Page 4 LED laser effect light user manual Silkscreen symbol ----------------------------------------------------------------------------- CE certificate ------------------------------------------------------------------------ Only indoor using -------------------------------------------------------------------------- -RoHS certificate ------------------------------- The minimum distance from lighted objects(meter) -------------------------------------------------------------- Max ambient Temp ------------------------------------------------------------ Max housing Temp ------------------------------------------------------------------------- Safety caution ---------------------------------------------------------------------- Be careful of burn ---------------------------------------------------------------------- Danger high voltage -------...
- Page 5 LED laser effect light user manual 1. Safety instruction Once after received this product , please take and put carefully. And check cautiously that whether the product was damaged or not during the transportation, if yes, please not use this fixture and contact local dealers or manufacturers as soon as possible.
- Page 6 LED laser effect light user manual 4.LED Display operation A.（MENU） B．（UP） C．(DOWN） D．（ENTER） E．LED DISPLAY MENU UP/DOWN Value Function Addr 1-512 Address setting 14Ch 14Ch 14 channel setting ChMd 2 channel setting Sh 1 Sh 7 1，Led Show Sh 2 2, Strobe Show Sh 3...
- Page 7 LED laser effect light user manual 5. Channel 14CH mode DMX-512Value Function 0-255 No function 10-44 Show 1，Led 45-79 Show 2, Strobe 80-114 Show 3, Laser CH1 Control Mode 115-149 Show 4, Led + Laser 150-184 Show 5, Led + Strobe 185-219 Show 6, Laser + Strobe 220-255...
- Page 8 LED laser effect light user manual 192-255 Inverted rotation speed Laser pattern pan 0-127 Horizontal position CH11 position 128-255 Horizontal move,speed up rate CH12 Laser pattern tilt 0-127 Choose vertical position position 128-255 Vertical move,speed up rate CH13 Laser scan track Track choose 0-255 choose...
- Page 9 LED laser effect light user manual 6.Remote - - 8 - -...
- Page 10 LED laser effect light user manual Number Button Function Stand By Stand by Hold on 3-10 Show 1-Show 8 Show1-Show7 (Show 8 hold on) LED Color LED color select LED Random LED color randomly Sound ON Sound on Laser Color Laser color select Laser Random Laser color randomly...
- Page 11 LED laser effect light user manual DMX out DMX in First one add 001 Second one add 015 Third one add 029 8. DMX address setting Each fixture must set a specific starting address. When receiving signal, fixture will receive channel control signals of this address from the DMX controller.
- Page 12 LED laser effect light user manual When install this equipment please make sure there's no flammable surfaces (decorated things, etc) within at least 2.5M and maintain minimum distance of 0.5M from the equipment to the walls. Please make sure that there's no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe.
- Page 13 Do not see directly light source when open the light, and make sure power off before do any installation or maintenance. CAUTION Wires connection must be professional person! Warranty Please refer to your local dealer or contact Event Lighting. - - 12 - -...
