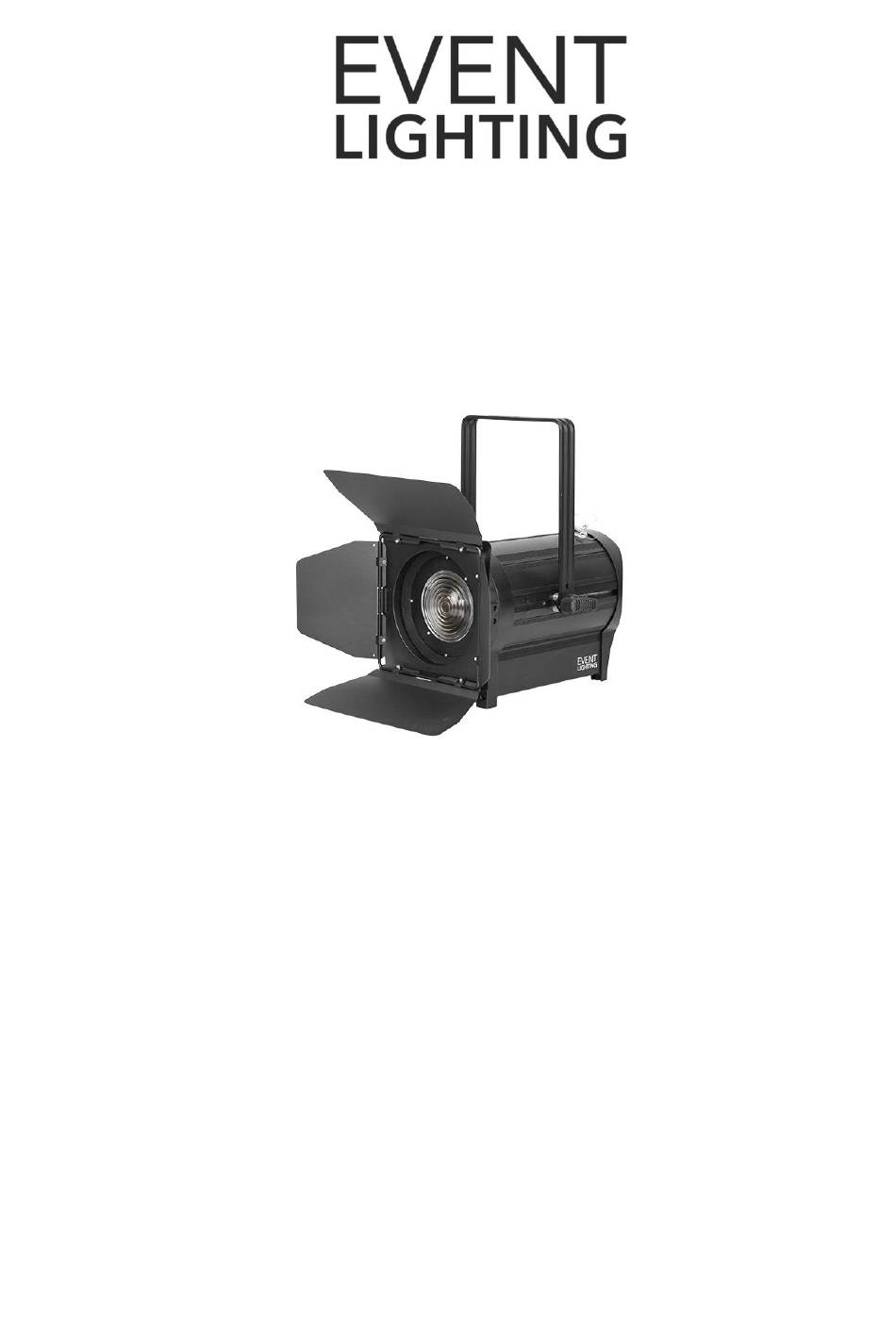

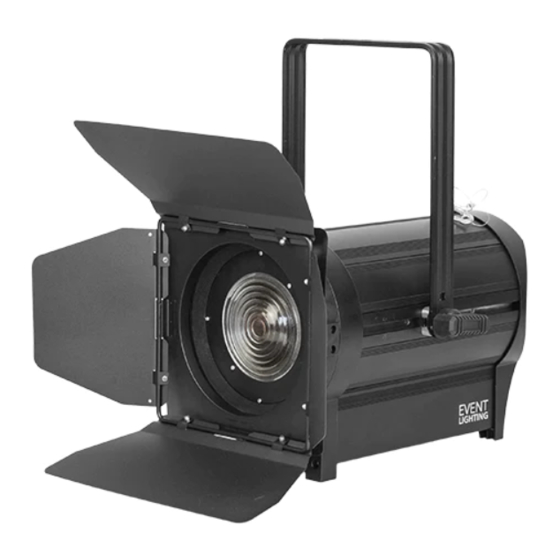

LED Fresnel
F300IIWW
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver M1.8.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting LED Fresnel
Summary of Contents for Event Lighting LED Fresnel
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power Input & Power Linking Product installation Product Installation Fuse replacement Product appearance Lux Chart Dimensions Control Board Operation DMX Addressing DMX Modes Dimmer Curves Static Settings DMX Values Technical Specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
www.event-lighting.com.au Dimensions Lux Chart... -
Page 5: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Press the Menu until one of the following had been displayed: Function Values Description 001 – 512 Set DMX Address. CHAN 02CH, 03CH, 04CH Set DMX Channel Mode. MANUAL DIM: 000 - 255 Manually set intensity of Dimmer (0 = off, 255 = brightest). D_F: 000 - 255 Manually set intensity of Dimmer Fine (0 = off, 255 = brightest). -
Page 6: Dmx Values
www.event-lighting.com.au DMX VALUES 2 channel mode Channel Value Function 000-255 Dimmer Coarse 000-255 Zoom 3 channels mode Channel Value Function 000-255 Dimmer Coarse 000-255 Zoom 000-255 Dimmer Fine 4 channels mode Channel Value Function 000-255 Dimmer Coarse 000-255 Zoom 000-255 Dimmer Fine 000-255 Strobe... -
Page 7: Technical Specifications
www.event-lighting.com.au TECHNICAL SPECIFICATIONS Power • Power Consumption: 300W • Input Voltage: 100 - 240V AC, 50/60 Hz • Power Connection: Seetronic® True 1 in / out Photometrics • Light Source: 3,200K 300W COB LED • CRI: 97 • Beam Angle: 18° - 55° •... -
Page 8: Warranty
• Housing Finish: Matte Black • Cooling: Sensor Thermostat Controlled Variable Speed Fan • Dimension: 388 X 214 X 463 mm • Net Weight: 6.5 kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd... - Page 9 www.event-lighting.com.au Website: www.event-lighting.com.au.
