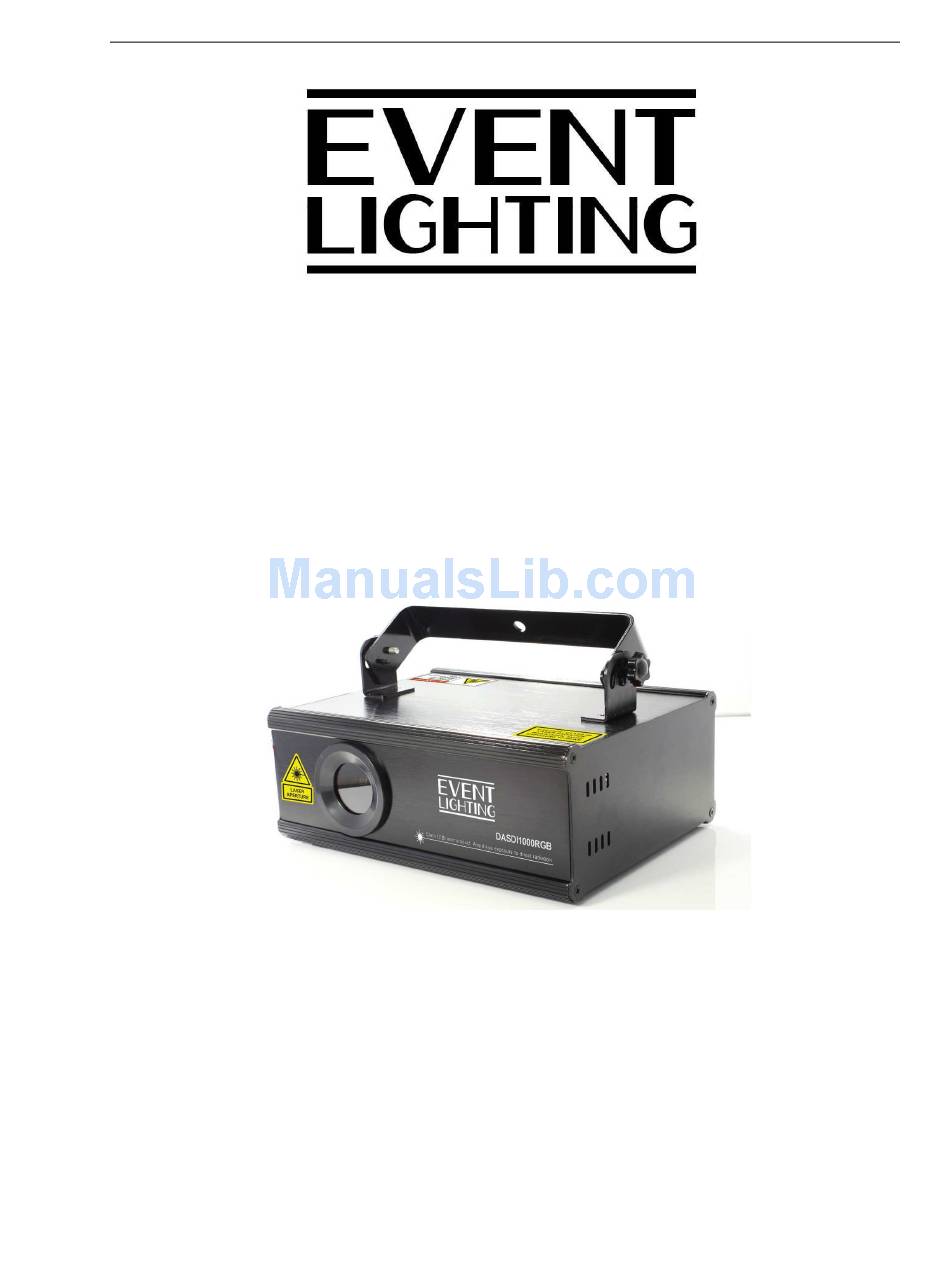

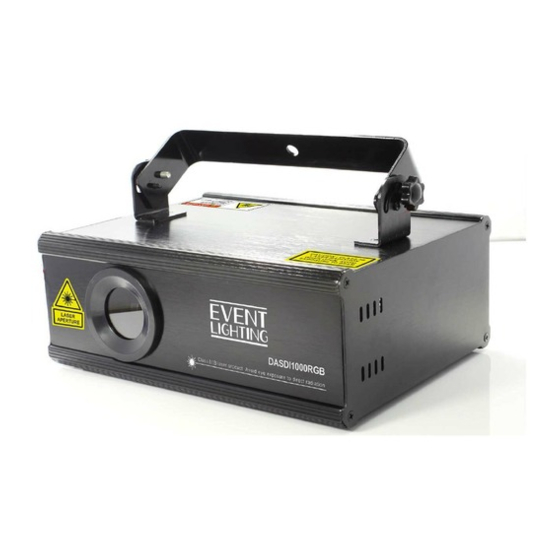

DASDI Laser
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Related Manuals for Event Lighting DASDI1000RGB
Summary of Contents for Event Lighting DASDI1000RGB
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. -
Page 2: Table Of Contents
CONTENTS Safety Instructions Product Installation Rear Panel Control Board Operation Display panel Main screen Play Mode Files operating Pictures setting Setting the sensitivity of sound active Setting the Rotation DMX instructions DMX Values Warranty Laser Emission Data Specifications... -
Page 3: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Rear Panel
Rear Panel DMX input 3PIN Male XLR port, using for DMX DMX output 3PIN Female XLR port，using for DMX Safety Loop Attach the safety cable SIZE The Size of X and Y axis adjustment Standard ILDA DB25 Output (throught) ILDA OUTPUT ILDA INPUT Standard ILDA DB25 Input LCD control Panel... -
Page 5: Control Board Operation
CONTROL BOARD OPERATION Display Panel Instructions Picture1 1.Display Window 2.UP 3.DOWN 4.SDCARD 5.MIC 6.ENTER 7.MENU/EXIT Function Description of Main Display Screen Picture2 1 .Present Play Mode 2. Opening Folder (A:\ shows that it under the SD card root directory) 3. Icons of The folders' types Folder Picture file .ida format Programs List files .ist format... -
Page 6: Play Mode
Play Mode 1 .Seven combined play modes of this machine: -The mode of SD card file browsing -The mode of SD card play list -The mode of Built-in effect -The mode of DMX control Picture3 Picture4 -The mode of SD card file browsing and sound-active -The mode of SD card play list and sound-active -The mode of Built-in effect and sound-active 2. -
Page 7: Pictures Setting
Pictures' Setting At the main screen press "menu" it will show a item of "Pictures" Setting", then press "enter" , you will see many orders, do as below (picture 12): 1.Setting Image Reverse, under "Pictures' Setting"，choose "X mirror image" or "Y mirror image"，and press "enter'，the picture will be reversed in X or Y direction , then press the "exit"，it will Automatic keep your Setting. - Page 8 DMX CHANNELS DESCRIPTION: Blackout SD Browse Mode 1-40 SD List Mode 41 - 80 Operating Mode Selection 81-100 SD Browse Mode + Voice 101-120 SD Browse Mode + Voice 121-160 Built in Effects 161-200 Built in Effect + Voice 201 -240 DMX Programming Mode 241-255 DMX Programming Mode + Voice...
- Page 9 the dynamic horizontal movement effect, every 32 values for some, each for different horizontal 64-255 movement effects, within the same segment, the larger the value, the faster the action 0-63 static vertical movement adjustment the dynamic vertical movement effect, every 32 The vertical movement of the pattern CH8 / 19 values for some, each for different vertical...
-
Page 10: Warranty
WARRANTY Please refer to your local dealer or please contact Event Lighting. LASER EMISSION DATA * As measured under IEC measurement conditions for classification. Laser Classification： Class 3B Green Laser Medium DPSS： Nd:YVO4+KTP,532nm Red Laser Medium LD： GaAIAs 650nm,typical Blue Laser Medium LD： InGaN 450nm, typical Beam Diameter：r <5mm at aperture...
