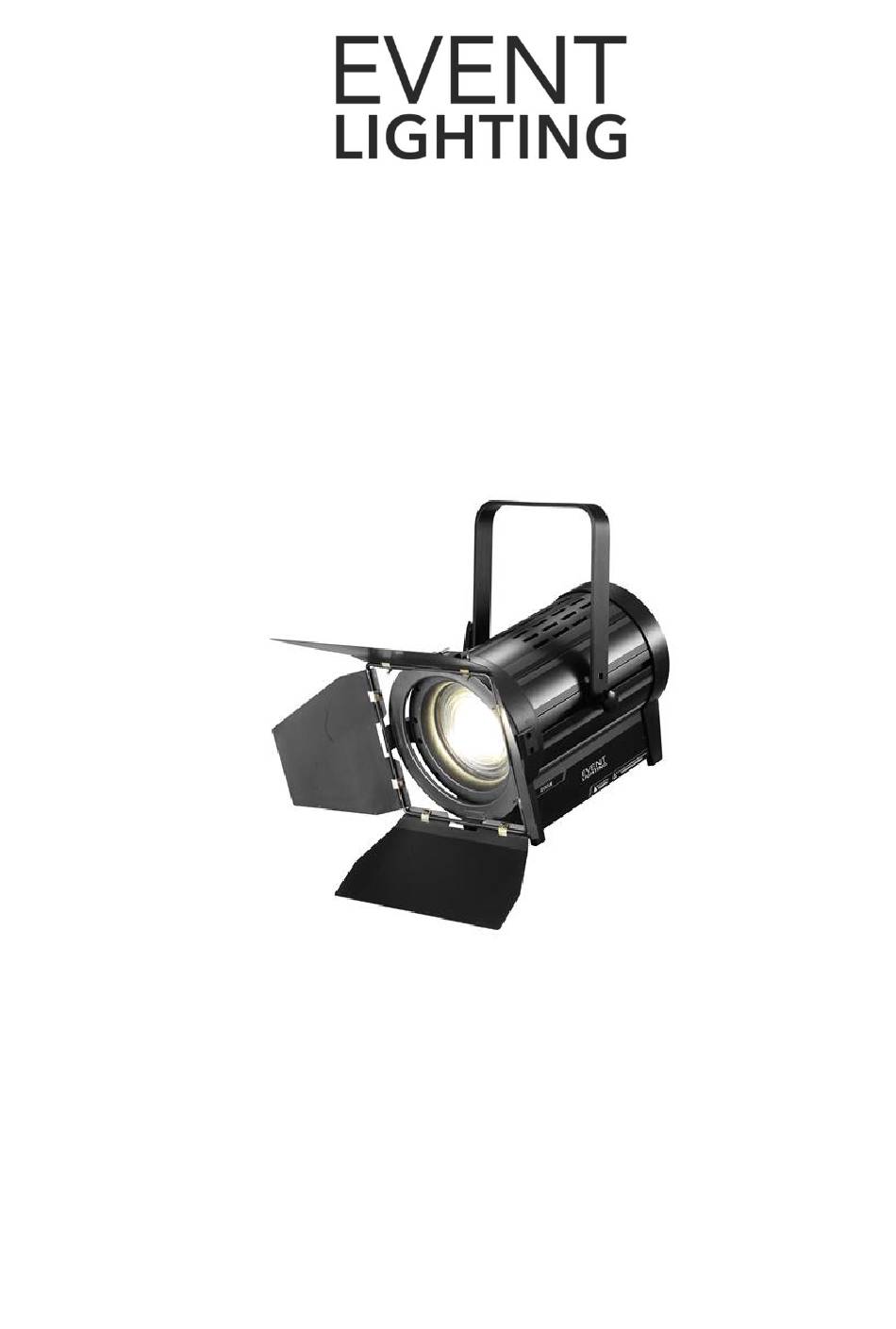

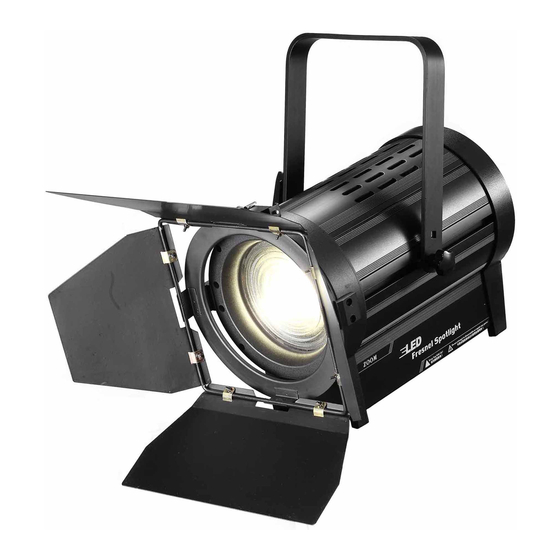

LED Fresnel
F100WWMZ F200WWMZ
PS200CW PS200WW
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.8.0
Advertisement
Table of Contents
Related Manuals for Event Lighting F100WWMZ
Summary of Contents for Event Lighting F100WWMZ
-
Page 1: User Manual
For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item. -
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Power Input & Power Linking Product installation Product Installation Fuse replacement Product appearance Lux Chart Dimensions Control Board Operation DMX Addressing DMX Modes Dimmer Curves Static Settings DMX Values Technical Specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Lux Chart
Dimensions – F100WWMZ, F200WWMZ Lux Chart – F100WWMZ, F200WWMZ... - Page 5 www.event-lighting.com.au Dimensions – PS200CW, PS200WW Lux Chart – PS200CW, PS200WW...
-
Page 6: Control Board Operation
www.event-lighting.com.au CONTROL BOARD OPERATION Press the Menu until one of the following had been displayed: Function Values Description 001 – 512 Set DMX Address. CHAN 01CH, 02CH, 03CH Set DMX Channel Mode. MANUAL DIM: 000 - 255 Manually set intensity of Dimmer (0 = off, 255 = brightest). D_F: 000 - 255 Manually set intensity of Dimmer Fine (0 = off, 255 = brightest). -
Page 7: Dmx Values
www.event-lighting.com.au DMX VALUES 1 channel mode Channel Value Function 000-255 Dimmer Coarse 2 channels mode Channel Value Function 000-255 Dimmer Coarse 000-255 Dimmer Fine 3 channels mode Channel Value Function 000-255 Dimmer Coarse 000-255 Dimmer Fine 000-255 Strobe... -
Page 8: Technical Specifications
Neutrik® Powercon Power Output Neutrik® Powercon DMX connector 3 pin male XLR and 3 pin female XLR Construction Matte Black finish steel and ABS WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.
