14.4.2 Primary Serial Port to RS232 1 and GPIO 3 & 4 to RS232 2
14.4.3 Primary Serial Port and GPIO 3 & 4 to GPIO Header at TTL levels

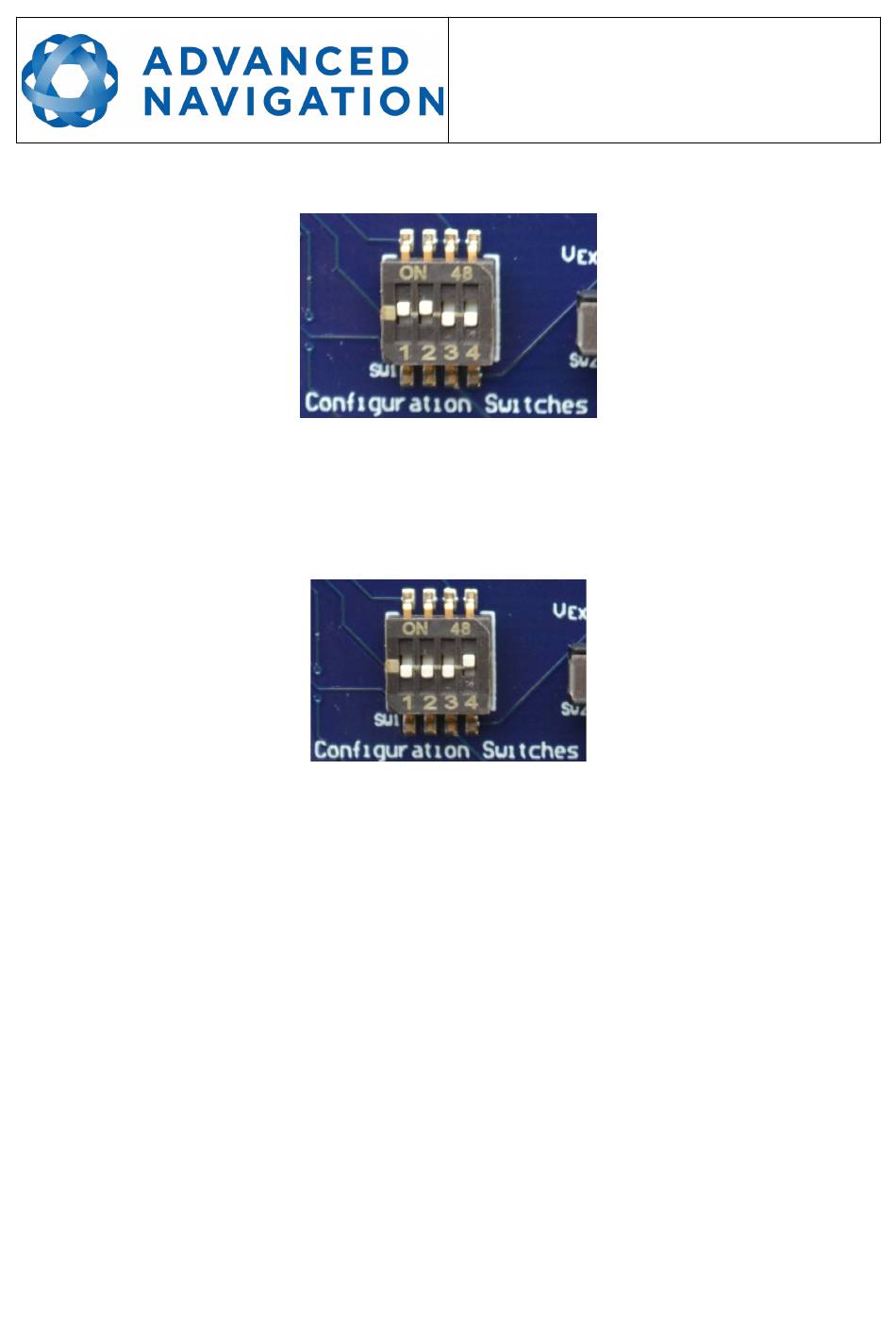

Illustration 68: Switch positions
for primary serial port to RS232
1 and GPIO 3 & 4 to RS232 2
Illustration 69: Switch
positions for primary serial
port and GPIO 3 & 4 to GPIO
header at TTL levels
Motus Reference Manual
Page 87 of 146
Version 1.1
29/11/2019
