3.3.1 Rotary Switch Settings

The GXTRA has a rotary switch which selects the correct resolution
for your display. The switch is shown in Figure 3.1. There are
specific resolutions preprogrammed for each GXTRA card which
are described in detail in the tables below.

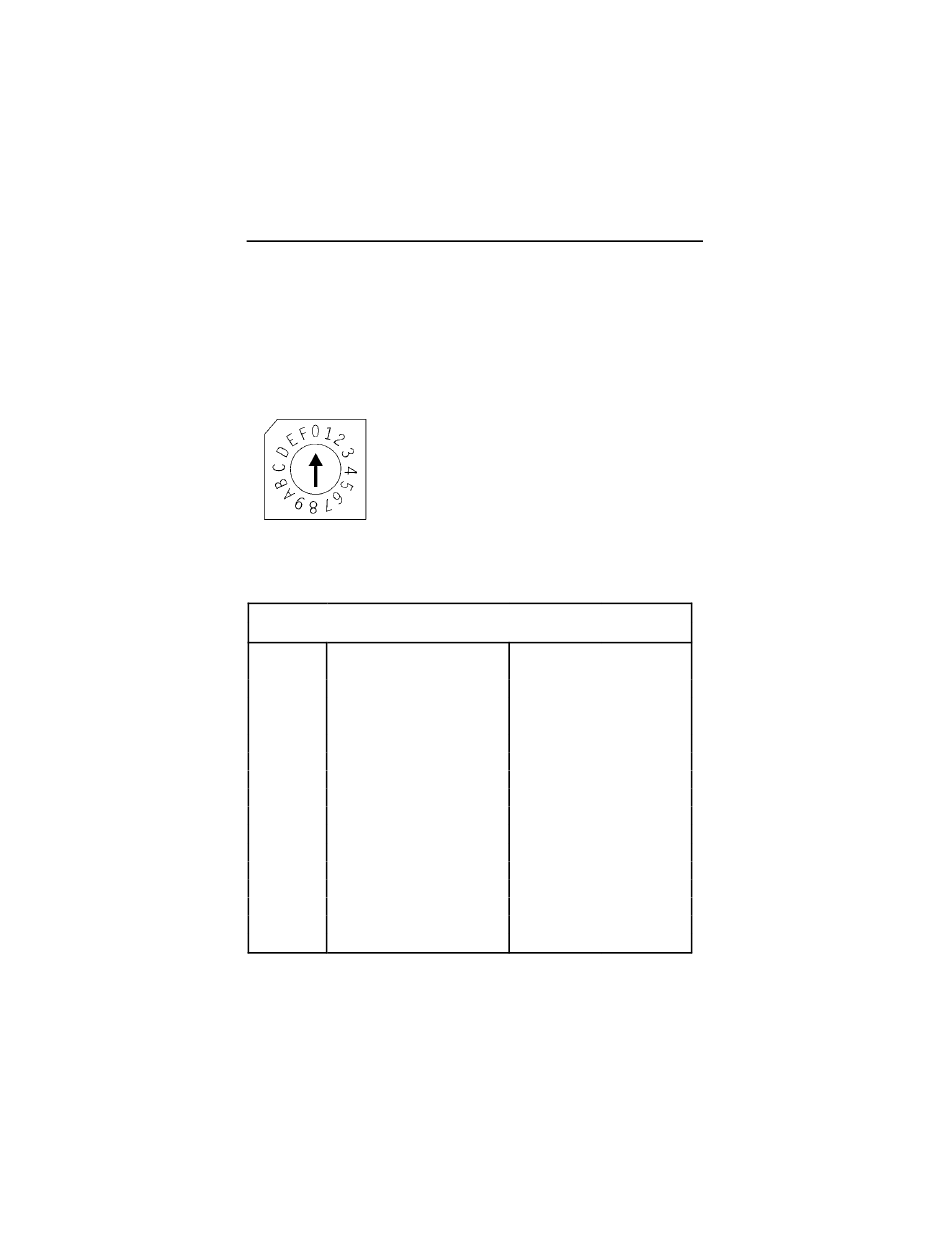

Figure 3.1 Resolution Switch
Table 3-1 through Table 3-6 shows the various switch settings.

Table 3-1 Standard Switch Settings

Switch
0 Sense bits; default
1152 x 900 @ 66 Hz
1 640 x 480 @ 60 Hz
2 1024 x 768 @ 60 Hz
3 1152 x 900 @ 66 Hz
4 1152 x 900 @ 76 Hz
5 1280 x 1024 @ 60 Hz
6 1280 x 1024 @ 67 Hz
7 1280 x 1024 @ 72 Hz
8 1280 x 1024 @ 76 Hz
9 1536 x 1152 @ 66 Hz
A 1600 x 1280 @ 60 Hz
B 1600 x 1280 @ 76 Hz
C 1024 x 768 @ 70 Hz
D 1024 x 768 @ 76 Hz
E Reserved
F Reserved
