Chapter 2 - Unpacking and Installing the GXTRA Card
2. Remove all cables (except the power cord) from the back
of the unit.
3. Loosen the Phillips head screw in the middle of the rear
panel (reference Figure 2.2).

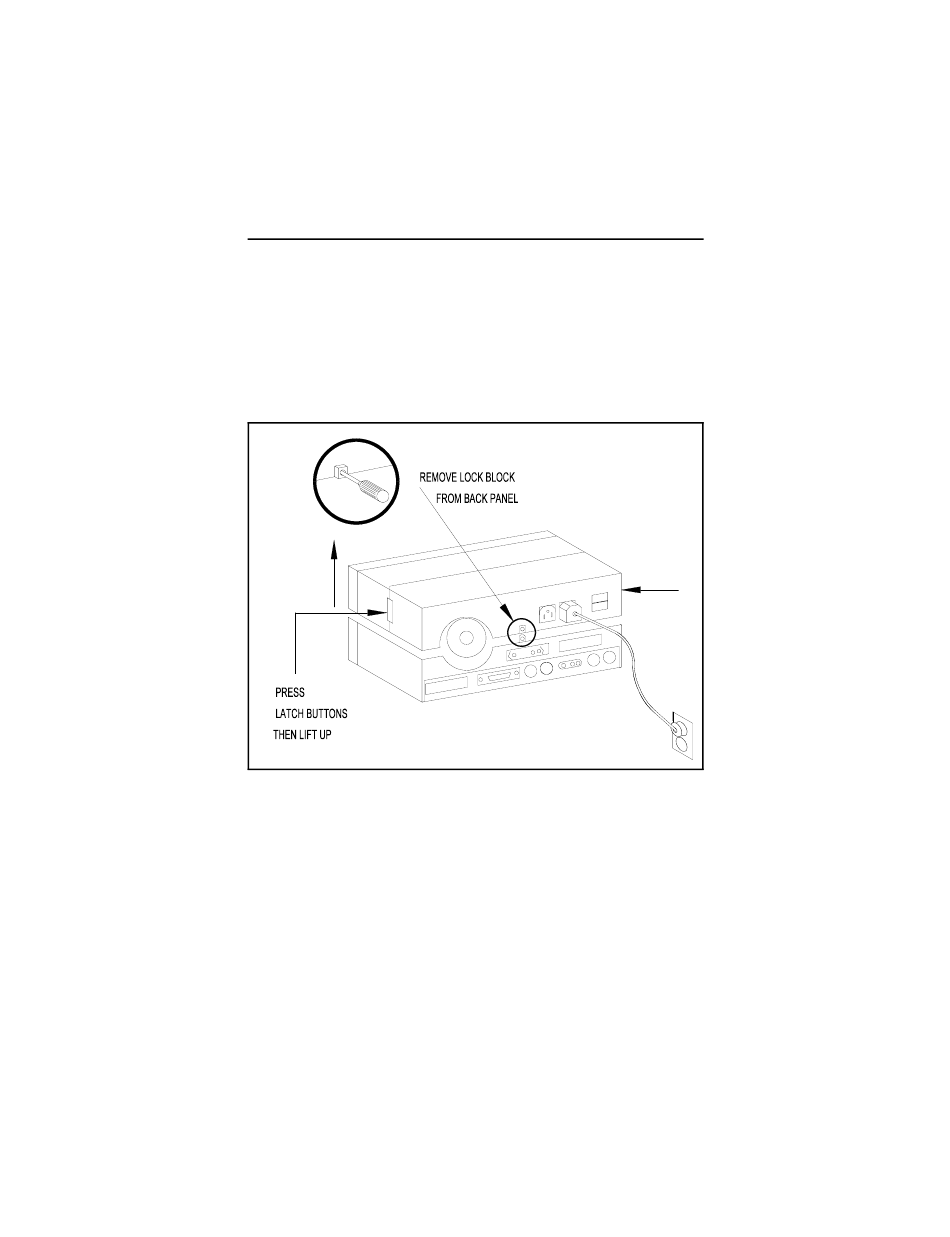

Figure 2.2 Opening the SPARCstation IPC, IPX and
SPARCclassic
4. Secure the workstation top by placing your index fingers on
the latches on each side (refer to Figure 2.2). Squeeze the
latches while pressing down on the top cover.
5. Carefully raise the top cover up and towards the front
panel. The top and bottom are connected with cables, so
gently place the top cover flat on the work surface.
