GXTRA Hardware Installation - September 11, 1997
2.
Remove all cables (except the power cord) from the back
of the SPARCstation 1+ and 2.
3.
Remove the two Phillips screws from the back panel
(reference Figure 2.1).

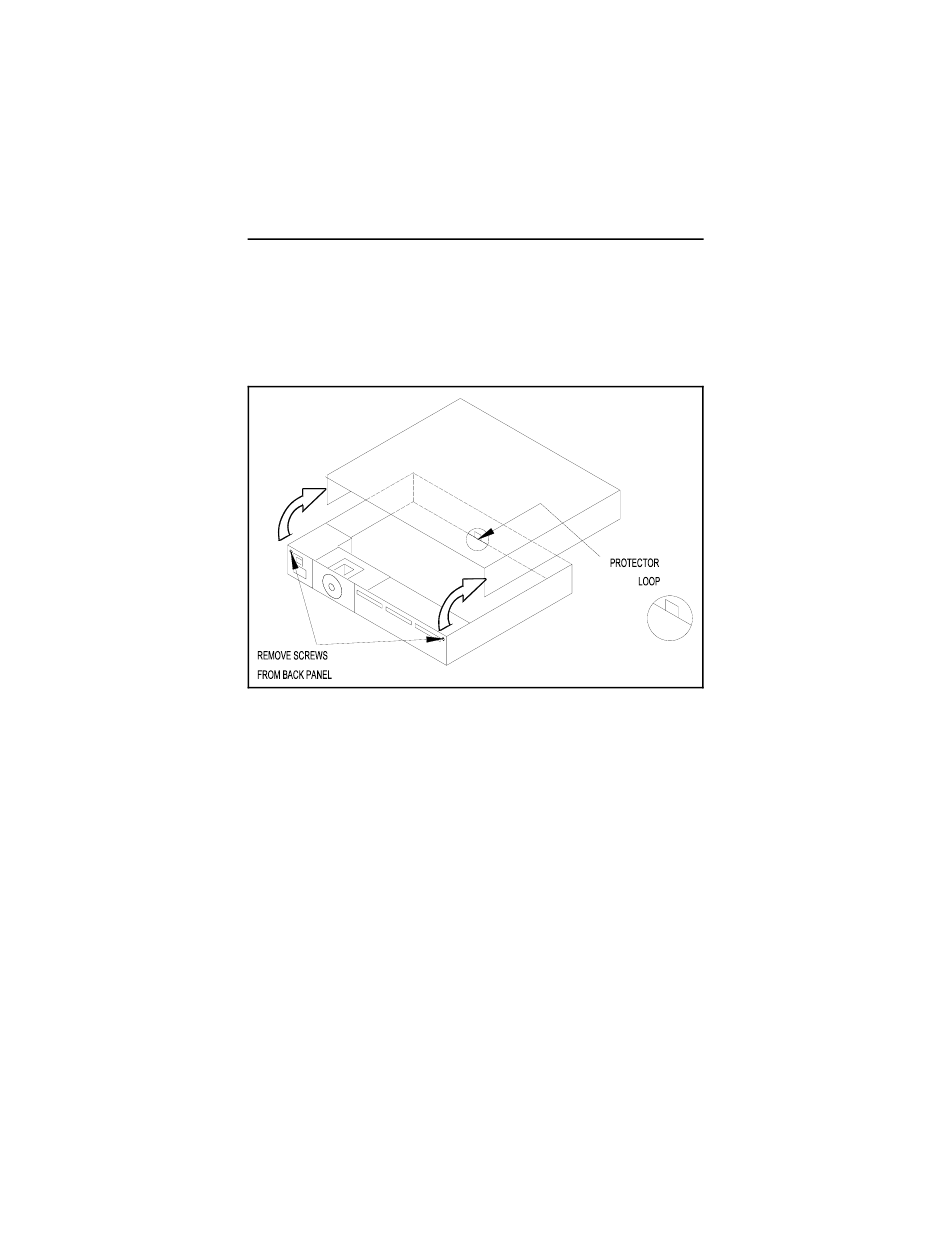

Figure 2.1 Opening the SPARCstation 1+ and 2
4.
Firmly grasp the left and right sides of the cover and tilt
the cover up and forward until the protector loop clears
the chassis.
5.
Carefully push the cover forward so that the tabs which
secure the cover to the front of the chassis are clear.
6.
Carefully lift the cover vertically to remove it.
2.4.2 SPARCstation IPC, IPX and SPARCclassic
1.
Place the workstation system on a stable flat surface with
enough room to place both the top and bottom of the
system on the work surface.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
2-4
