Chapter 2 - Unpacking and Installing the GXTRA Card

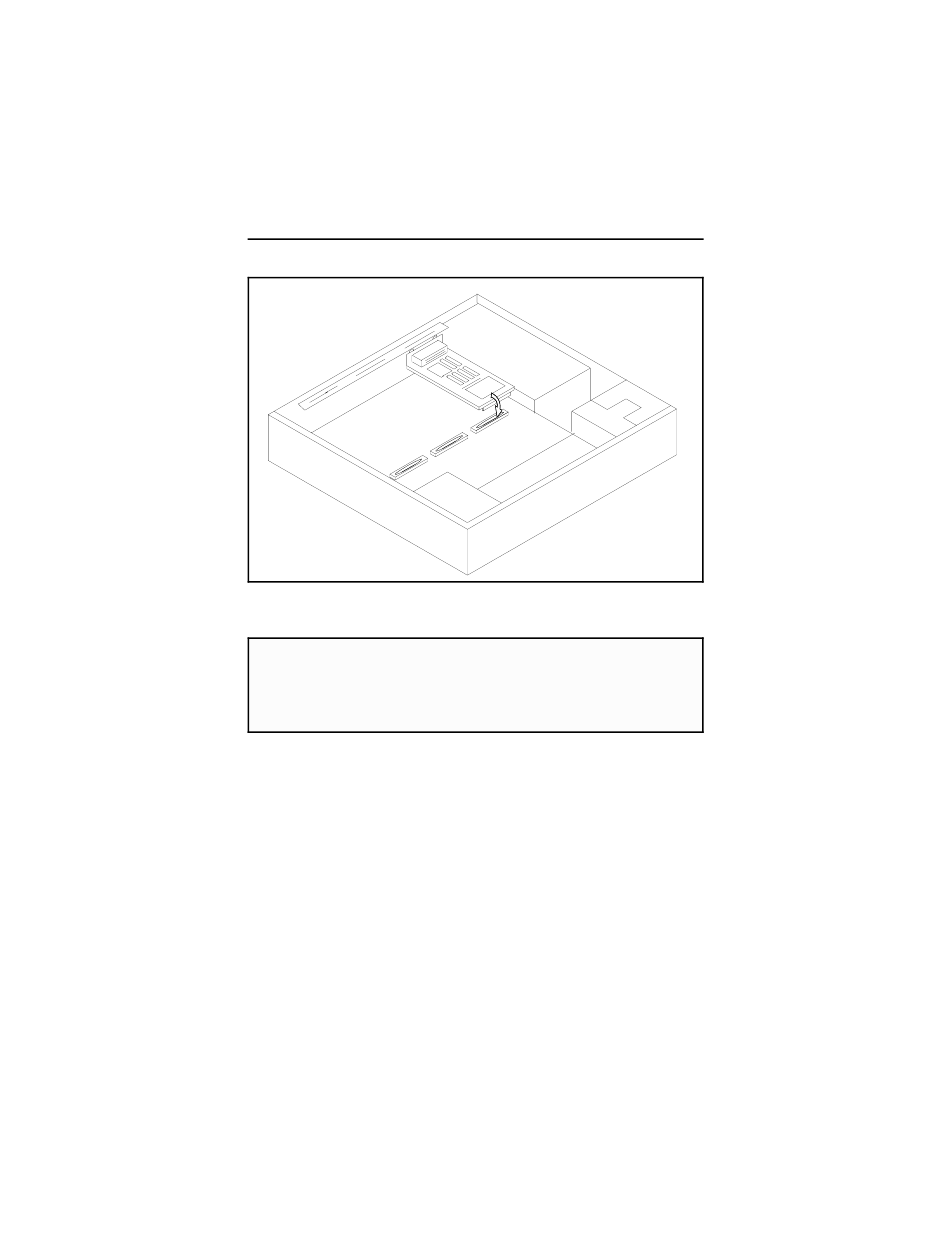

Figure 2.5 Card and Logic Board Alignment

Do not use excessive force or push on the Weitek part as
you may break the bracket or damage the pins on the
bottom of the board.
2.5.2 SPARCstation IPC, IPX, and SPARCclassic
The SPARCstation IPC, IPX and SPARCclassic have two SBus
slots. You may install the GXTRA in either slot. Reference Figure
2.6 for the SBus slot locations for the SPARCstation IPC and IPX.
Reference the Desktop SPARC Hardware Owner's Guide for the
SPARCclassic SBus slot locations.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
CAUTION
2-9
