Chapter 2 - Unpacking and Installing the GXTRA Card

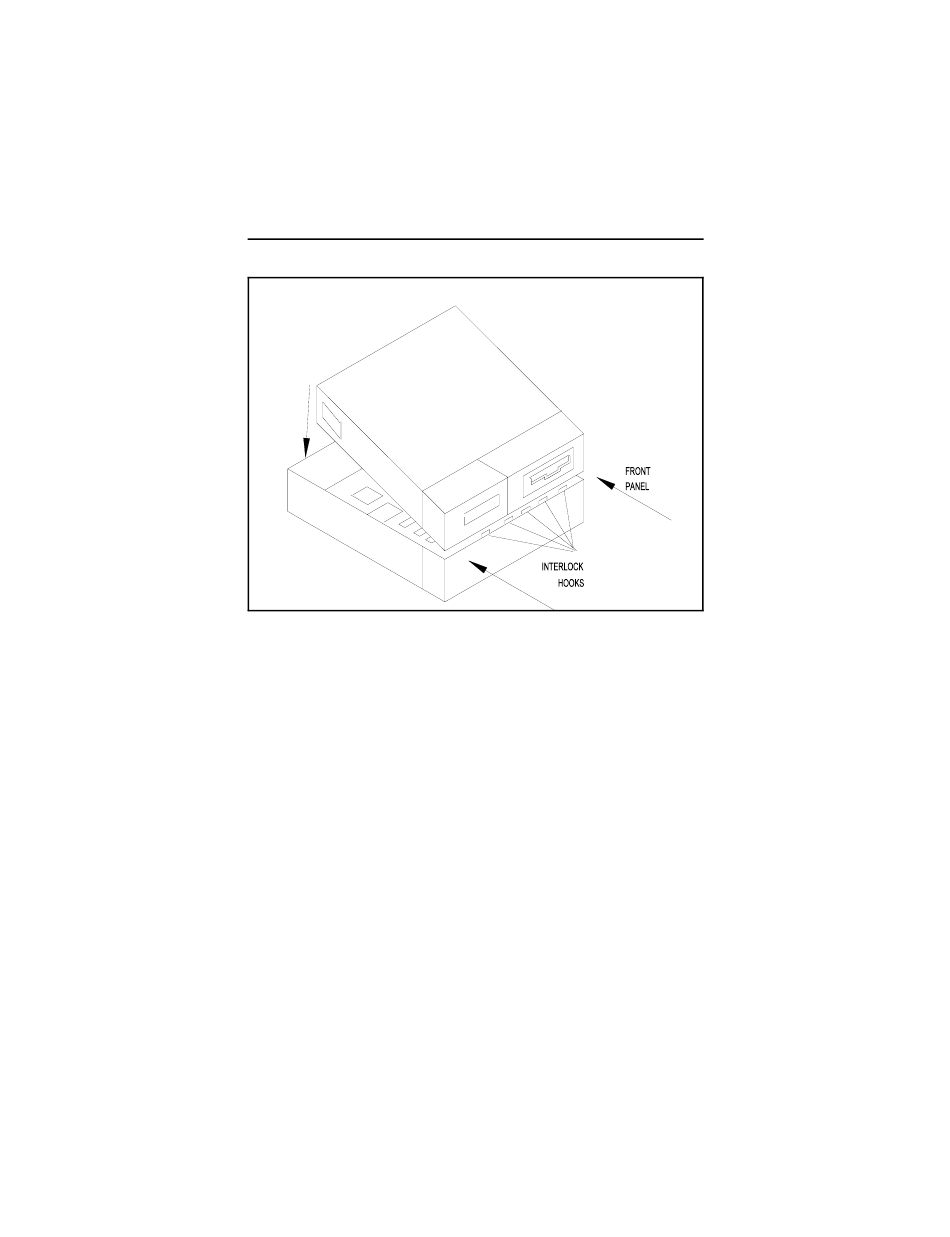

Figure 2.12 IPC, IPX and SPARCclassic Cover Installation

2.8 Powering Up The Workstation

Connect all the cables originally removed from the back of the
workstation. Connect the supplied video cable to the GXTRA
monitor connector at the rear of the GXTRA and the other end to
the monitor. If this is the only display controller, plug the keyboard
into the motherboard keyboard slot. Otherwise, plug the cable for
the additional keyboard into the keyboard port on the back of the
GXTRA card.
Turn the power on in the following sequence:
1. Monitor
2. External device and peripherals
3. SPARCstation system unit.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
2-15
