Chapter 2 - Unpacking and Installing the GXTRA Card

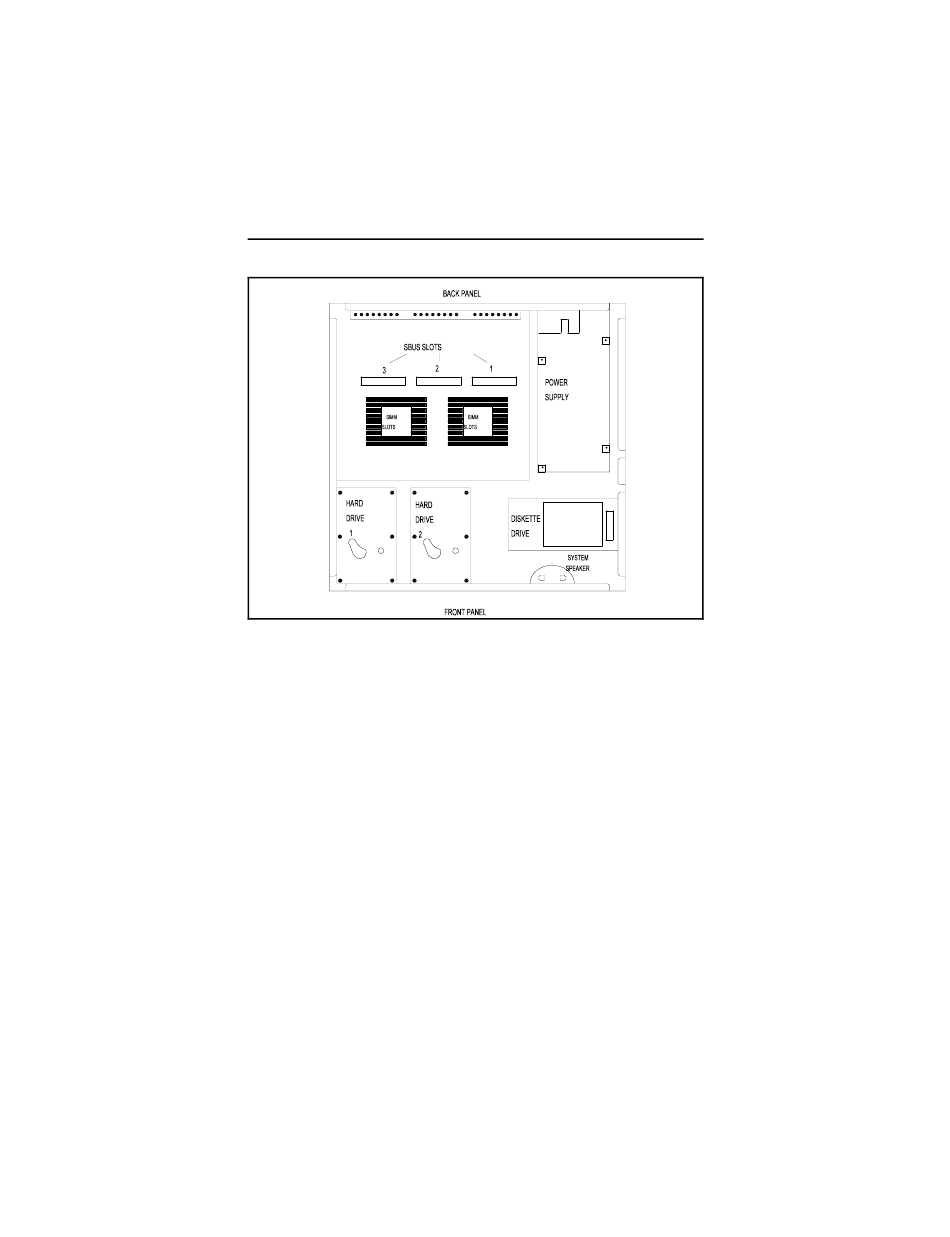

Figure 2.3 SBus Slot Locations for SPARCstation 1+ and 2
1.
Remove the rear panel cover for the SBus slot the card will
be installed in. To do this press the release pins on the
inside of the unit and pull the rear protector plate towards
the front panel. Reference Figure 2.4 for the location of the
rear panel covers.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
2-7
