Chapter 2 - Unpacking and Installing the GXTRA Card

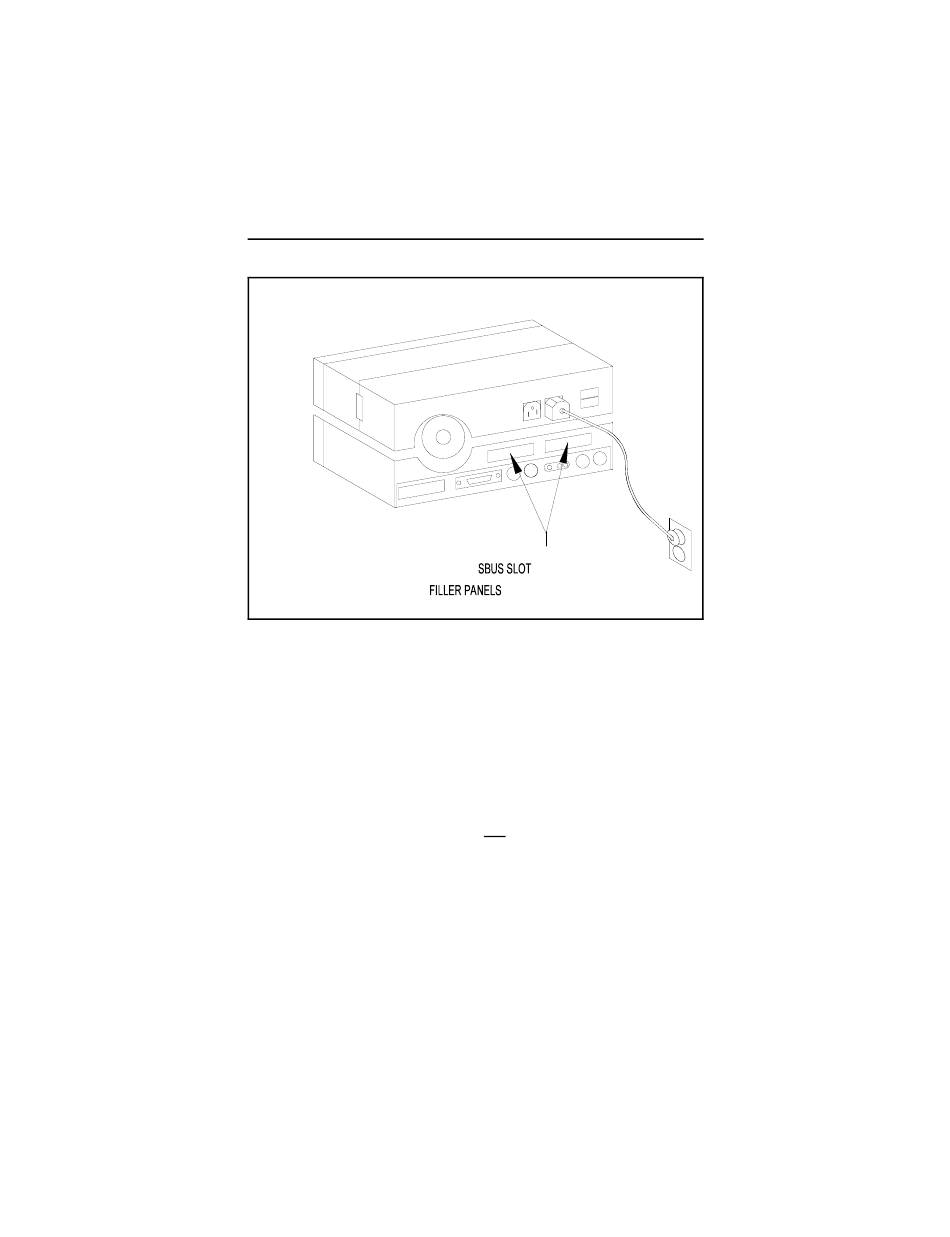

Figure 2.7 IPC, IPX and SPARCclassic Rear Panels
2.
With a ground strap (ESD kit) attached to the workstation,
open the anti-static bag and remove the GXTRA. Place the
card at an angle into the rear panel of the workstation.
Ensure that the DB13W3 video connector is facing the rear
of the unit. Make certain that the cards mounting plate
hooks into the slot opening on the rear panel.
3.
Align the connector on the bottom of the card with the
connector on the main board (reference Figure 2.8).
Gently press the connector into the socket. Press on the
corners of the board. Do not press on the plastic retainer
bracket or Weitek part.
