Chapter 2 - Unpacking and Installing the GXTRA Card

2.6 SPARCstation 600MP and SPARCstation 10

The SPARCstation and SPARCserver 600MP has four SBus slots
mounted on the CPU board. To install the GXTRA, the CPU card
must be pulled from its VME slot. Figure 2.9 shows the locations of
the SBus slots on the CPU card.

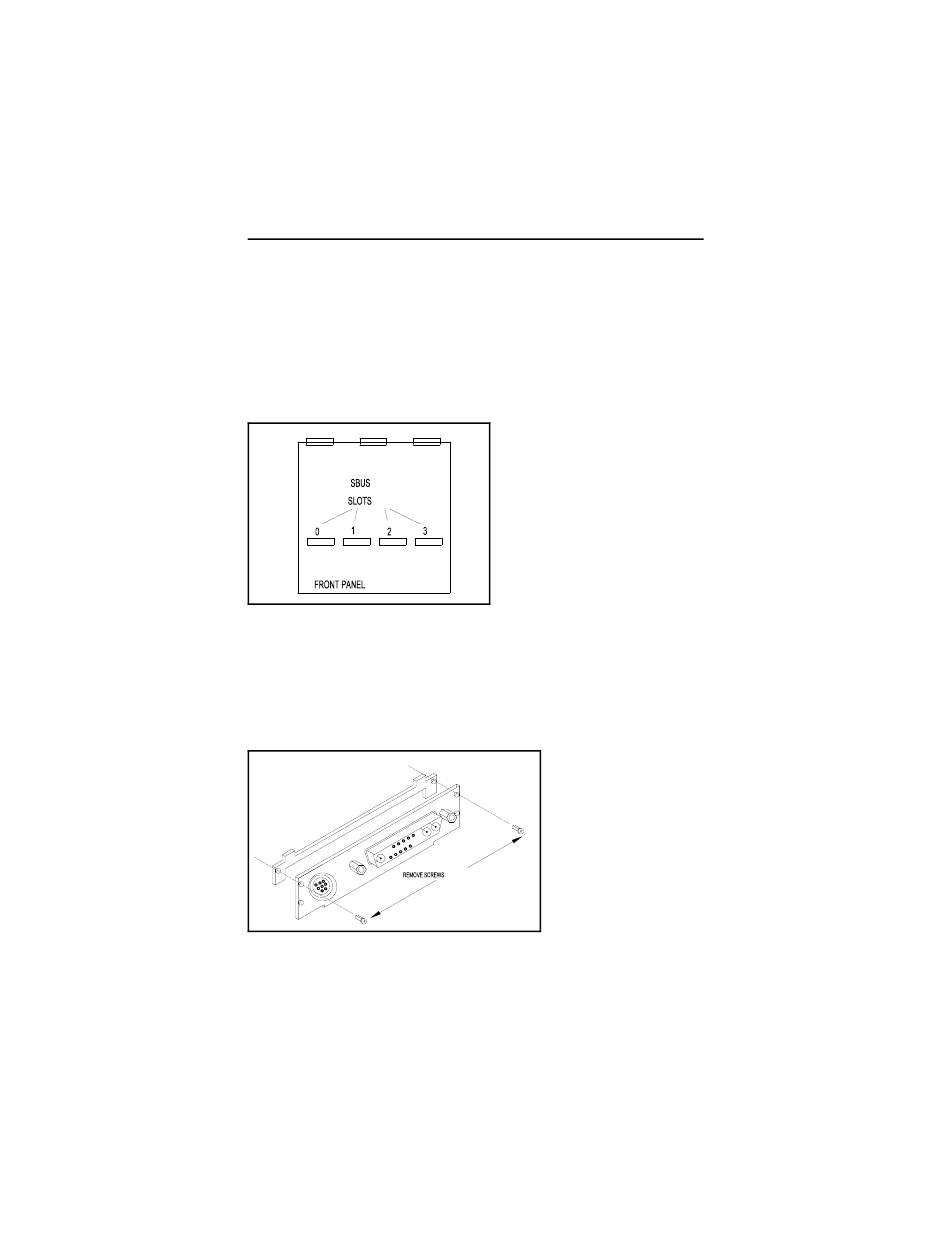

Figure 2.9 600MP CPU Board
In order to fit the GXTRA into the 600MP CPU or the SPARCstation
10, it is necessary to remove the top portion of the GXTRA's two
piece face plate. To remove the top portion of the face plate simply
remove the two screws shown in Figure 2.10.
Figure 2.10 GXTRA Two Piece Face Plate
