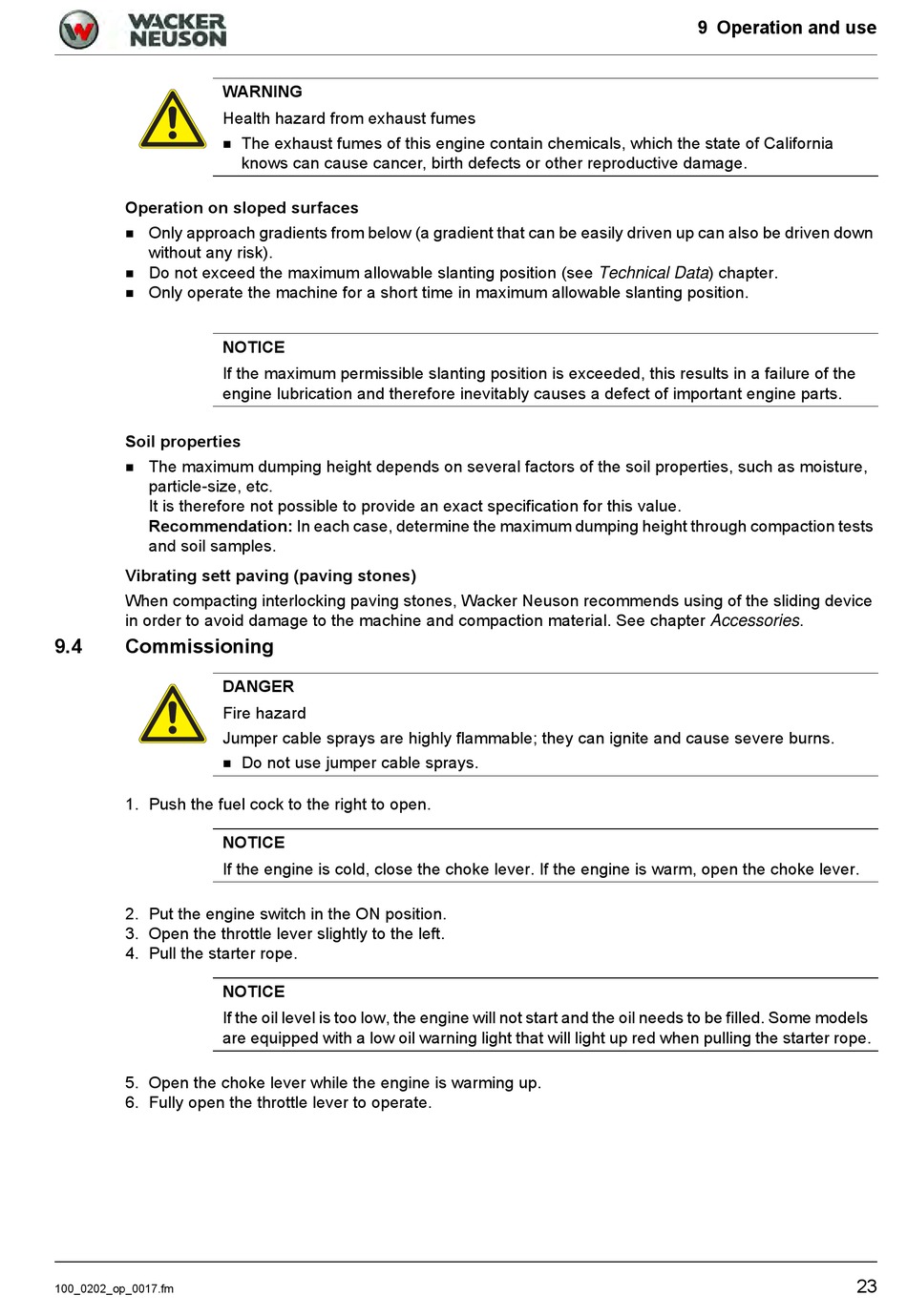

WARNING
Health hazard from exhaust fumes
Operation on sloped surfaces
Only approach gradients from below (a gradient that can be easily driven up can also be driven down
without any risk).
Do not exceed the maximum allowable slanting position (see Technical Data) chapter.
Only operate the machine for a short time in maximum allowable slanting position.
NOTICE
If the maximum permissible slanting position is exceeded, this results in a failure of the
engine lubrication and therefore inevitably causes a defect of important engine parts.
Soil properties
The maximum dumping height depends on several factors of the soil properties, such as moisture,
particle-size, etc.
It is therefore not possible to provide an exact specification for this value.
Recommendation: In each case, determine the maximum dumping height through compaction tests
and soil samples.
Vibrating sett paving (paving stones)
When compacting interlocking paving stones, Wacker Neuson recommends using of the sliding device
in order to avoid damage to the machine and compaction material. See chapter Accessories.
9.4
Commissioning
DANGER
Fire hazard
Jumper cable sprays are highly flammable; they can ignite and cause severe burns.
1. Push the fuel cock to the right to open.
NOTICE
If the engine is cold, close the choke lever. If the engine is warm, open the choke lever.
2. Put the engine switch in the ON position.
3. Open the throttle lever slightly to the left.
4. Pull the starter rope.
NOTICE
If the oil level is too low, the engine will not start and the oil needs to be filled. Some models
are equipped with a low oil warning light that will light up red when pulling the starter rope.
5. Open the choke lever while the engine is warming up.
6. Fully open the throttle lever to operate.
100_0202_op_0017.fm
The exhaust fumes of this engine contain chemicals, which the state of California
knows can cause cancer, birth defects or other reproductive damage.
Do not use jumper cable sprays.
9 Operation and use
23
