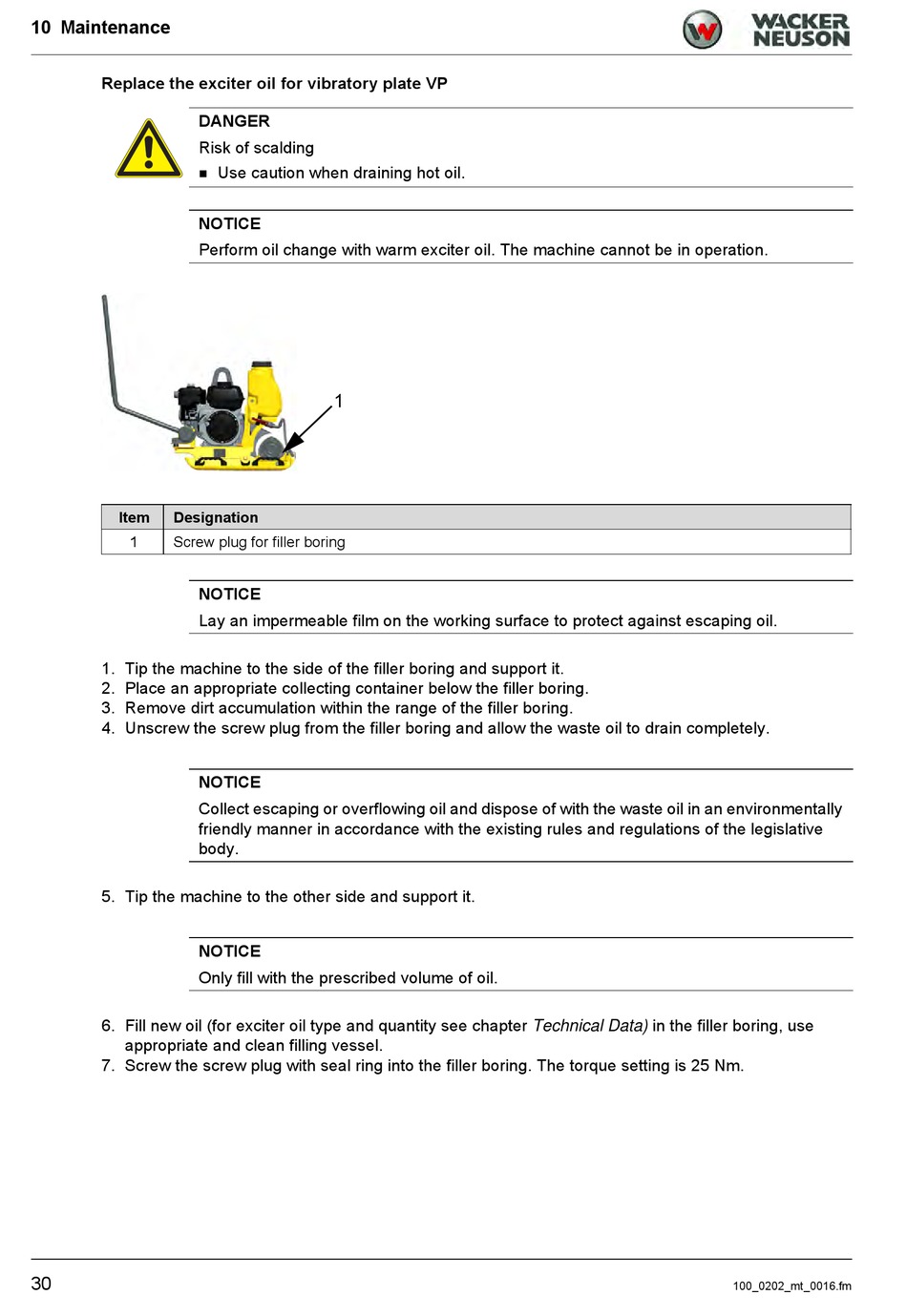

10 Maintenance
Replace the exciter oil for vibratory plate VP
DANGER
Risk of scalding
NOTICE
Perform oil change with warm exciter oil. The machine cannot be in operation.
Item
Designation
1
Screw plug for filler boring
NOTICE
Lay an impermeable film on the working surface to protect against escaping oil.
1. Tip the machine to the side of the filler boring and support it.
2. Place an appropriate collecting container below the filler boring.
3. Remove dirt accumulation within the range of the filler boring.
4. Unscrew the screw plug from the filler boring and allow the waste oil to drain completely.
NOTICE
Collect escaping or overflowing oil and dispose of with the waste oil in an environmentally
friendly manner in accordance with the existing rules and regulations of the legislative
body.
5. Tip the machine to the other side and support it.
NOTICE
Only fill with the prescribed volume of oil.
6. Fill new oil (for exciter oil type and quantity see chapter Technical Data) in the filler boring, use
appropriate and clean filling vessel.
7. Screw the screw plug with seal ring into the filler boring. The torque setting is 25 Nm.
30
Use caution when draining hot oil.
1
100_0202_mt_0016.fm
