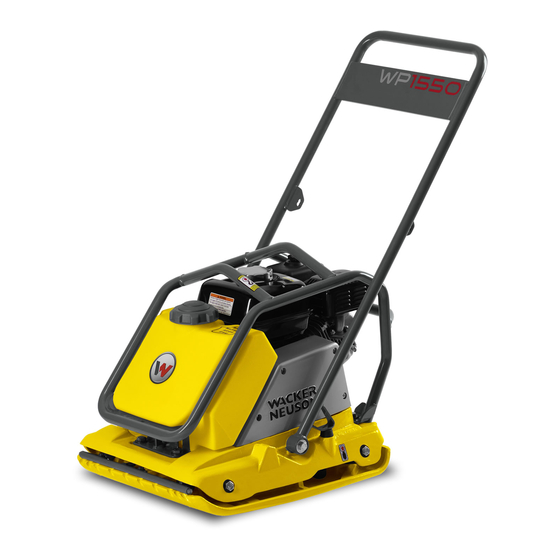

Summary of Contents for Wacker Neuson WP 1550A

  • Page 1 Operator’s Manual Vibroplate WP 1550A WP 1550AW 5000190169 0712...
  • Page 2 This publication may be photocopied by the original purchaser of the machine. Any other type of reproduction is prohibited without express written permission from Wacker Neuson Corporation. Any type of reproduction or distribution not authorized by Wacker Neuson Corporation represents an infringement of valid copyrights. Violators will be prosecuted. Trademarks All trademarks referenced in this manual are the property of their respective owners.

  • Page 3: Table Of Contents

    WP 1550A/AW Table of Contents Foreword Emission System Control Information Safety Information Laws Pertaining to Spark Arresters ............5 Operating Safety .................. 6 Operator Safety while using Internal Combustion Engines ....7 Service Safety ..................8 Label Locations ..................9 Warning and Informational Labels ............
  • Page 4 Table of Contents WP 1550A/AW Maintenance Maintaining the Emission Control System..........23 Periodic Maintenance Schedule ............23 Cleaning Plate ..................25 Drive Belt .....................25 Exciter Lubrication ................26 Spark Plug ...................27 Engine Oil ....................28 Air Cleaner ..................29 Cleaning Sediment Cup ..............30 5.10 Carburetor Adjustment ................31 5.11...

  • Page 5: Foreword

    Foreword This manual provides information and procedures to safely operate and maintain this Wacker Neuson model. For your own safety and protection from injury, carefully read, understand and observe the safety instructions described in this manual. Keep this manual or a copy of it with the machine. If you lose this manual or need an additional copy, please contact Wacker Neuson Corporation.

  • Page 6: Emission Control System Information

    Emission Control System Information Emission Control Systems Information and Warranty The Emission Control Warranty and associated information is valid only for the U.S.A., its territories, and Canada. Emission Control Systems Warranty Statement See the supplied engine owner’s manual for the applicable exhaust and evaporative emission warranty statement.

  • Page 7: Safety Information

    WP 1550A/AW Safety Information Safety Information This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE signal words which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 8: Operating Safety

    These areas get hot and may cause burns. 2.2.3 Do not use accessories or attachments that are not recommended by Wacker Neuson. Damage to equipment and injury to the user may result. 2.2.4 NEVER operate the machine with the beltguard missing. Exposed drive belt and pulleys create potentially dangerous hazards that can cause serious injuries.

  • Page 9: Operator Safety While Using Internal Combustion Engines

    WP 1550A/AW Safety Information Operator Safety while using Internal Combustion Engines Internal combustion engines present special hazards during operation and fueling. Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below. Failure to follow the WARNING warnings and safety standards could result in severe injury or death.

  • Page 10: Service Safety

    A hot muffler could ignite the debris and start a fire. 2.4.6 Replace worn or damaged components with spare parts designed and approved by Wacker Neuson. 2.4.7 Disconnect the spark plug on machines equipped with gasoline engines, before servicing, to avoid accidental start-up.

  • Page 11: Label Locations

    WP 1550A/AW Safety Information Label Locations wpmgr005961 WARNING WARNUNG ADVERTENCIA 10 W 30 AVERTISSEMENT wpm_si000327gb.fm...

  • Page 12: Warning And Informational Labels

    Safety Information WP 1550A/AW Warning and Informational Labels Wacker Neuson machines use international pictorial labels where needed. These labels are described below. Label Meaning WARNING! To prevent hearing loss, wear hearing protec- tion when operating the machine. Read the Operator’s Manual for machine infor- mation.
  • Page 13 WP 1550A/AW Safety Information Label Meaning WARNING! Hand injury if caught in moving belt. Always replace beltguard. CAUTION! Read and understand the supplied Operator’s Manual before operating this machine. Failure to do so increases the risk of injury to yourself and others.
  • Page 14 Safety Information WP 1550A/AW Label Meaning Company logo A nameplate listing the model number, item number, revision number, and serial number is attached to each unit. Please record the infor- mation found on this nameplate so it will be available should the nameplate become lost or damaged.

  • Page 15: Operating Labels

    WP 1550A/AW Safety Information Operating Labels Wacker Neuson machines use international pictorial labels where needed. These labels are described below. Label Meaning Open the fuel flow valve. Push or turn engine switch to ON position. Close the choke. Place throttle in the IDLE position.
  • Page 16 Safety Information WP 1550A/AW Label Meaning Push or turn engine switch to OFF position. Open the choke. Place throttle in the FAST position. Throttle control lever: Turtle = Idle or Slow Rabbit = Full or Fast wpm_si000327gb.fm...

  • Page 17: Technical Data

    WP 1550A/AW Technical Data Technical Data Engine Data Engine Power Rating Net power rating per SAE J1349. Actual power output may vary due to conditions of specific use. WP 1550A/AW 0007576, 0007579, 0009486, 0009546 Engine Engine Make Honda Engine Model GX 160 UT1 QWX2 Max.

  • Page 18: Plate Data

    Technical Data WP 1550A/AW Plate Data WP 1550A/AW 0007576, 0007579, 0009486, 0009546 Plate Operating Weight 92 (203) kg (lbs.) Water Tank Capacity 10.4 (11.0) l (qts.) Exciter Speed 5800 rpm / belt Exciter Lubrication 150 (5) ml (oz.) Automatic Transmission Fluid...

  • Page 19: Dimensions

    WP 1550A/AW Technical Data Dimensions mm (in.) 38 (965) 19.5 (500) 34.5 (875) wpmgr005986 wpm_td000336gb.fm...

  • Page 20: Operation

    Before using an oxygenated fuel, confirm the fuel's contents. Some states and provinces require this information to be posted on the fuel pump. The following is the Wacker Neuson approved percentage of oxygenates: ETHANOL - (ethyl or grain alcohol) 10% by volume. You may use gasoline containing up to 10% ethanol by volume (commonly referred to as E10).

  • Page 21: To Start

    WP 1550A/AW Operation To Start See Graphic: wc_gr000014 4.3.1 Open fuel valve by moving lever to the right (a1). Note: If engine is cold, move choke lever to close position (b1). If engine is hot, set choke to open position (b2).

  • Page 22: Application

    Operation WP 1550A/AW Application This plate is designed for compacting loose, granular soils, gravel, and paving stones. It is intended to be used in confined areas and areas next to structures such as walls, curbs, and foundations. Plates equipped with water tanks can be used for compacting asphalt.

  • Page 23: Operation

    WP 1550A/AW Operation Operation See Graphic: wpmgr006016 Run engine at full throttle and allow plate to pull itself along at its normal speed. When operating on an incline it may be necessary to assist plate by pushing it forward slightly. Depending on the material being compacted, three or four passes are recommended to achieve the best compaction.

  • Page 24: Wheel Kit (0162986)

    Operation WP 1550A/AW Wheel Kit (0162986) See Graphic: wc_gr002793 Wheel kit (Part No. 0162986) is a standard item on Item Number 0009545, 0009546, 0009547 and 0009548 only. Available as an option on all other models. 4.7.1 Disengage wheel kit from holding latch (a) and position wheels in “down”...

  • Page 25: Maintenance

    Wacker Neuson. The use of service parts that are not equivalent in performance and durability to authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty claim.
  • Page 26 Maintenance WP 1550A/AW 5.2.2 Machine Maintenance The chart below lists basic machine maintenance. Daily After Every Every Every before first 2 weeks month year starting 20 hrs. 50 hrs. 100 hrs. 300 hrs. Check external hardware. Check and adjust drive belt.

  • Page 27: Cleaning Plate

    WP 1550A/AW Maintenance Cleaning Plate Clean plate after use to remove dirt, stones, and mud caught under the engine console. If plate is being used in a dusty area, check engine cylinder cooling fins for heavy dirt accumulation. Keep engine cylinder fins clean to prevent engine from overheating.

  • Page 28: Exciter Lubrication

    Maintenance WP 1550A/AW Exciter Lubrication See Graphic: wpmgr006021 The exciter assembly is a self-contained, sealed unit. The bearings are lubricated using automatic transmission fluid (see Technical Data for type). Change fluid once every year or 300 hours of operation. When changing fluid, replace O-ring (a).

  • Page 29: Spark Plug

    WP 1550A/AW Maintenance Spark Plug See Graphic: wc_gr000028 Clean or replace the spark plug as needed to ensure proper operation. Refer to your engine operator’s manual. The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the muffler while it is hot.

  • Page 30: Engine Oil

    Maintenance WP 1550A/AW Engine Oil See Graphic: wc_gr000022 5.7.1 Drain the oil while the engine is still warm. 5.7.2 Remove the oil filler plug (a) and the drain plug (b) to drain the oil. Note: In the interests of environmental protection, place a plastic sheet and a container under the machine to collect any liquid that drains off.

  • Page 31: Air Cleaner

    WP 1550A/AW Maintenance Air Cleaner See Graphic: wc_gr000025 The engine is equipped with a dual element air cleaner. Service air cleaner frequently to prevent carburetor malfunction. NOTICE: NEVER run engine without air cleaner. Severe engine damage will occur. NEVER use gasoline or other types of low flash point solvents for cleaning the air cleaner.

  • Page 32: Cleaning Sediment Cup

    Maintenance WP 1550A/AW Cleaning Sediment Cup See Graphic: wc_gr000029 5.9.1 Turn the fuel valve off. 5.9.2 Remove the sediment cup (a) and the O-ring (b). 5.9.3 Wash both thoroughly in a nonflammable solvent. Dry and reinstall them. 5.9.4 Turn the fuel valve on and check for leaks.

  • Page 33: Carburetor Adjustment

    WP 1550A/AW Maintenance 5.10 Carburetor Adjustment See Graphic: wc_gr000032 5.10.1 Start the engine and allow it to warm up to operating temperature. 5.10.2 Set the pilot screw (a) two turns out. See Note. 5.10.3 With the engine idling, turn the pilot screw (a) in or out to the setting that produces the highest rpm.

  • Page 34: Troubleshooting

    Maintenance WP 1550A/AW 5.11 Troubleshooting Problem / Symptom Reason / Remedy Plate does not develop full • Engine throttle control not completely open. speed. Poor compaction. • Throttle control not adjusted correctly. • Ground too wet, plate sticking. Allow soil to dry before compacting.

  • Page 35: Storage

    WP 1550A/AW Maintenance 5.12 Storage If plate is being stored for more than 30 days: 5.12.1 Remove loose stones and dirt from plate. 5.12.2 Clean engine cylinder cooling fins. 5.12.3 Clean or replace air filter. 5.12.4 Change exciter oil. 5.12.5 Change engine oil and follow procedures described in engine manual for engine storage.

  • Page 36: Lifting Machine

    Maintenance WP 1550A/AW 5.13 Lifting Machine See Graphic: wpmgr006037 See Technical Data for the weight of the machine. To lift machine manually: 5.13.1 Stop the engine. 5.13.2 Obtain help from a partner and plan the lift. 5.13.3 Grasp the machine by its cage (a) and lifting slot (b).

  • Page 37: Transporting Machine

    WP 1550A/AW Maintenance 5.14 Transporting Machine See Graphic: wpmgr006055 To avoid burns or fire hazards, let engine cool before transporting machine or storing indoors. WARNING 5.14.1 Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling.
