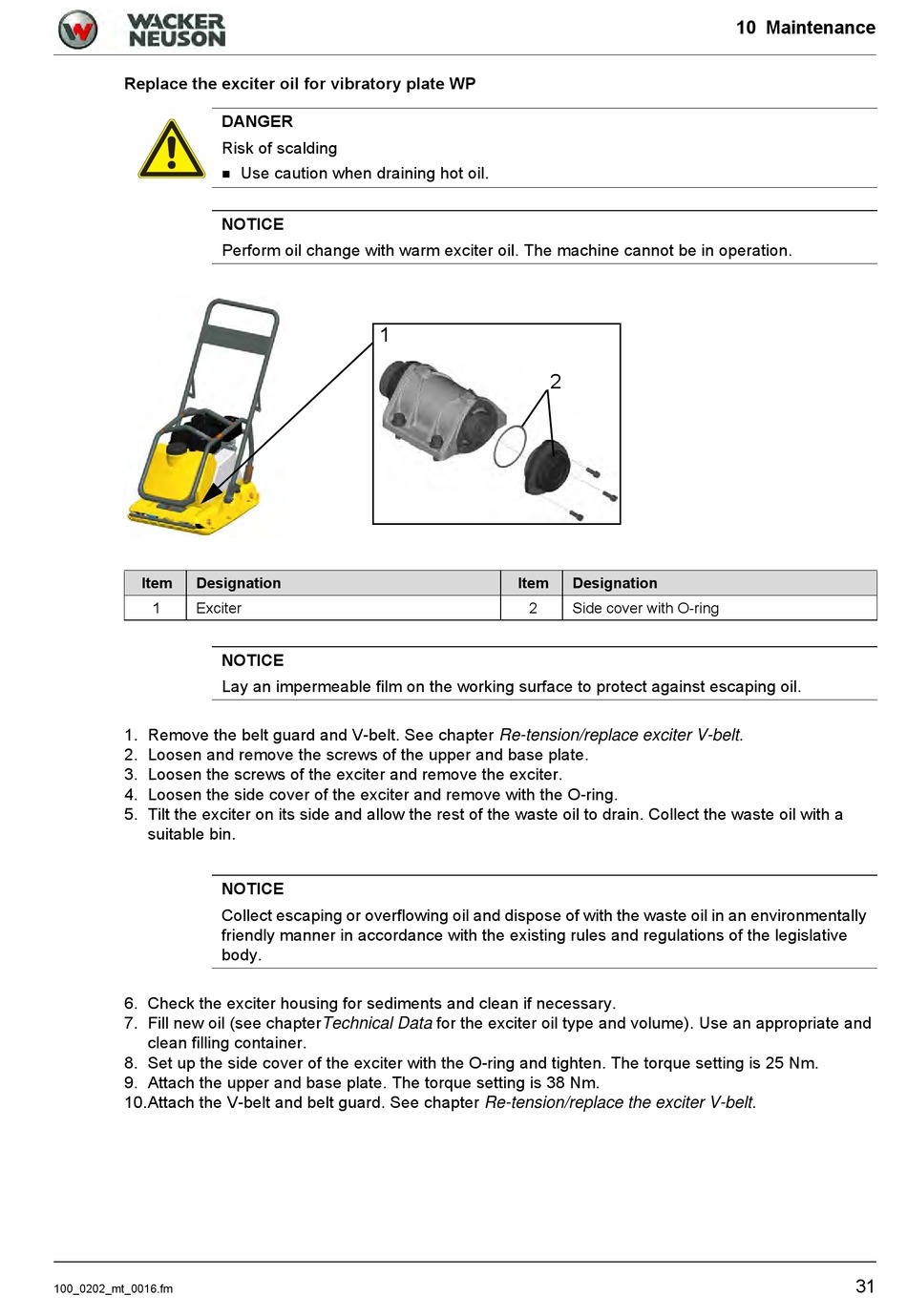

Replace the exciter oil for vibratory plate WP
DANGER
Risk of scalding

NOTICE
Perform oil change with warm exciter oil. The machine cannot be in operation.
Item Designation
1 Exciter
NOTICE
Lay an impermeable film on the working surface to protect against escaping oil.
1. Remove the belt guard and V-belt. See chapter Re-tension/replace exciter V-belt.
2. Loosen and remove the screws of the upper and base plate.
3. Loosen the screws of the exciter and remove the exciter.
4. Loosen the side cover of the exciter and remove with the O-ring.
5. Tilt the exciter on its side and allow the rest of the waste oil to drain. Collect the waste oil with a
suitable bin.
NOTICE
Collect escaping or overflowing oil and dispose of with the waste oil in an environmentally
friendly manner in accordance with the existing rules and regulations of the legislative
body.
6. Check the exciter housing for sediments and clean if necessary.
7. Fill new oil (see chapterTechnical Data for the exciter oil type and volume). Use an appropriate and
clean filling container.
8. Set up the side cover of the exciter with the O-ring and tighten. The torque setting is 25 Nm.
9. Attach the upper and base plate. The torque setting is 38 Nm.
10.Attach the V-belt and belt guard. See chapter Re-tension/replace the exciter V-belt.
100_0202_mt_0016.fm
Use caution when draining hot oil.
1
2
Item Designation
2 Side cover with O-ring
10 Maintenance
