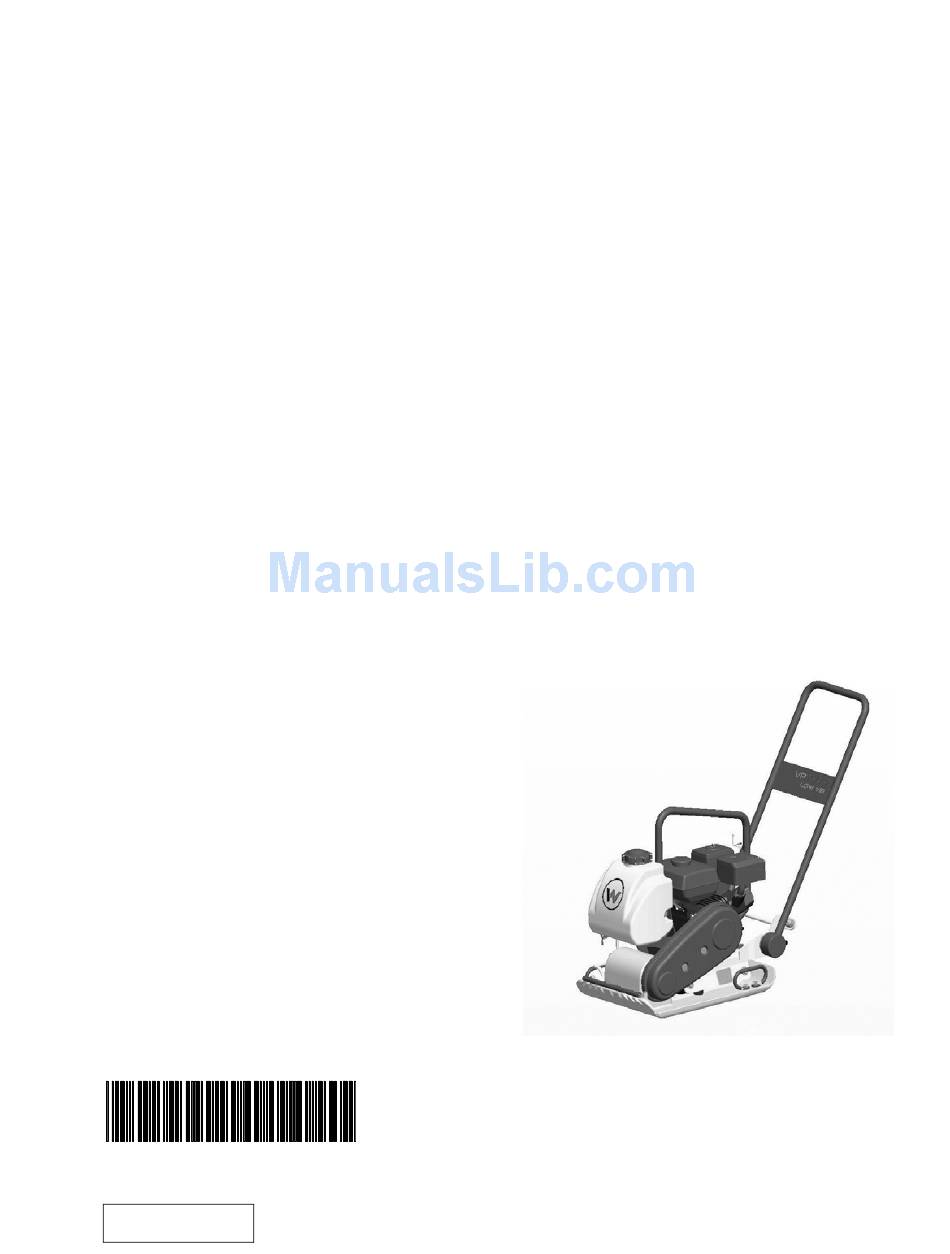

- Page 1 Operator’s Manual Vibroplate VP 1340A VP 1340AW VP 1550A VP 1550AW 0154569en / 008...
-
Page 3: Table Of Contents
VP 1340A/VP 1550A Table of Contents Foreword Safety Information Laws Pertaining to Spark Arresters ............4 Operating Safety .................. 5 Operator Safety while using Internal Combustion Engines ....6 Service Safety ..................7 Label Locations ..................8 Warning and Informational Labels ............9 Technical Data Engine Data .................. - Page 4 Table of Contents VP 1340A/VP 1550A Maintenance Periodic Maintenance Schedule ............18 Spark Plug ...................20 Air Cleaner ..................21 Engine Oil ....................22 Adjusting Engine Speed ..............22 Carburetor Adjustment ................23 Cleaning Sediment Cup ..............23 Drive Belt .....................24 Exciter Lubrication ................25 4.10 Cleaning Plate ..................25 4.11...
-
Page 5: Foreword
Foreword This manual provides information and procedures to safely operate and maintain this Wacker Neuson model. For your own safety and protection from injury, carefully read, understand and observe the safety instructions described in this manual. Keep this manual or a copy of it with the machine. If you lose this manual or need an additional copy, please contact Wacker Neuson Corporation. -
Page 6: Safety Information
Safety Information VP 1340A/VP 1550A Safety Information This manual contains DANGER, WARNING, CAUTION, NOTICE and NOTE callouts which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 7: Operating Safety
These areas get hot and may cause burns. 1.2.3 Do not use accessories or attachments that are not recommended by Wacker Neuson. Damage to equipment and injury to the user may result. 1.2.4 NEVER operate the machine with the beltguard missing. Exposed drive belt and pulleys create potentially dangerous hazards that can cause serious injuries. -
Page 8: Operator Safety While Using Internal Combustion Engines
Safety Information VP 1340A/VP 1550A Operator Safety while using Internal Combustion Engines Internal combustion engines present special hazards during operation and fueling. Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below. Failure to follow the WARNING warnings and safety standards could result in severe injury or death. -
Page 9: Service Safety
A hot muffler could ignite the debris and start a fire. 1.4.6 Replace worn or damaged components with spare parts designed and recommended by Wacker Neuson Corporation. 1.4.7 Disconnect the spark plug on machines equipped with gasoline engines, before servicing, to avoid accidental start-up. -
Page 10: Label Locations
Safety Information VP 1340A/VP 1550A Label Locations wpmgr005939 wpm_si000305gb.fm... -
Page 11: Warning And Informational Labels
VP 1340A/VP 1550A Safety Information Warning and Informational Labels Wacker Neuson machines use international pictorial labels where needed. These labels are described below: Label Meaning WARNING! Always wear hearing and eye protection when operating this machine. WARNING! Hot surface! Guaranteed sound power level in dB(A). - Page 12 Safety Information VP 1340A/VP 1550A Label Meaning Throttle control lever: Turtle = Idle or Slow Rabbit = Full or Fast DANGER! Engines emit carbon monoxide; operate only in well-ventilated area. Read the Operator’s Manual. No sparks, flames, or burning objects near the machine.
- Page 13 VP 1340A/VP 1550A Safety Information Label Meaning This machine may be covered by one or more patents. wpm_si000305gb.fm...
-
Page 14: Technical Data
Technical Data VP 1340A/VP 1550A Technical Data Engine Data Engine Power Rating Net power rating per SAE J1349. Actual power output may vary due to conditions of specific use. VP 1340A/AW VP 1550A/AW 0009031 0009027 0009032 0009028 Engine Engine Make... -
Page 15: Machine Data
VP 1340A/AW VP 1550A/AW 0009031 0009027 0009032 0009028 Plate Weight kg (lbs.) VP 1340A: 74 (163) VP 1550A: 83 (184) VP 1340AW: 76 (168) VP 1550AW: 86 (190) Water Tank Capacity l (qts.) 3.8 (4.0) 7.6 (8.0) Exciter Speed 5800 ± 100 Exciter Lubrication ml (oz.) -
Page 16: Dimensions
Technical Data VP 1340A/VP 1550A Dimensions mm (in.) 911 (36) 400 (16) 588 (23) wpmgr005966 wpm_td000314gb.fm... -
Page 17: Operation
VP 1340A/VP 1550A Operation Operation Recommended Fuel The engine requires regular grade unleaded gasoline. Use only fresh, clean gasoline. Gasoline containing water or dirt will damage fuel system. Consult engine owner’s manual for complete fuel specifications. Application This plate is designed for compacting loose, granular soils, gravel, and paving stones. -
Page 18: To Start
Operation VP 1340A/VP 1550A To Start See Graphic: wc_gr000014 3.4.1 Open fuel valve by moving lever to the right (a1). Note: If engine is cold, move choke lever to close position (b1). If engine is hot, set choke to open position (b2). -
Page 19: Operation
VP 1340A/VP 1550A Operation Operation Run the engine at full throttle and allow the plate to pull itself along at its normal speed. When operating on an incline it may be necessary to assist the plate by pushing it forward slightly. When operating downhill hold the plate back slightly, if it begins to pick up speed. -
Page 20: Maintenance
Maintenance VP 1340A/VP 1550A Maintenance Periodic Maintenance Schedule 4.1.1 Engine Maintenance The chart below lists basic engine maintenance. Refer to the engine manufacturer’s Operation Manual for additional information on engine maintenance. Daily After Every Every Every before first 2 weeks... - Page 21 VP 1340A/VP 1550A Maintenance 4.1.2 Machine Maintenance The chart below lists basic machine maintenance. Daily After Every Every Every before first 2 weeks month year starting 20 hrs. 50 hrs. 100 hrs. 300 hrs. Check external hardware. Check and adjust drive belt.
-
Page 22: Spark Plug
Maintenance VP 1340A/VP 1550A Spark Plug See Graphic: wc_gr000028 Clean or replace the spark plug as needed to ensure proper operation. Refer to your engine operator’s manual. The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the muffler while it is hot. -
Page 23: Air Cleaner
VP 1340A/VP 1550A Maintenance Air Cleaner See Graphic: wc_gr000025 The engine is equipped with a dual element air cleaner. Service air cleaner frequently to prevent carburetor malfunction. NOTICE: NEVER run engine without air cleaner. Severe engine damage will occur. NEVER use gasoline or other types of low flash point solvents for cleaning the air cleaner. -
Page 24: Engine Oil
Maintenance VP 1340A/VP 1550A Engine Oil See Graphic: wc_gr000022 4.4.1 Drain the oil while the engine is still warm. 4.4.2 Remove the oil filler plug (a) and the drain plug (b) to drain the oil. Note: In the interests of environmental protection, place a plastic sheet and a container under the machine to collect any liquid that drains off. -
Page 25: Carburetor Adjustment
VP 1340A/VP 1550A Maintenance Carburetor Adjustment See Graphic: wc_gr000032 4.6.1 Start the engine and allow it to warm up to operating temperature. 4.6.2 Set the pilot screw (a) two turns out. See Note. 4.6.3 With the engine idling, turn the pilot screw (a) in or out to the setting that produces the highest rpm. -
Page 26: Drive Belt
Maintenance VP 1340A/VP 1550A Drive Belt See Graphic: wpmgr005992 On new machines or after installing a new belt, check the belt tension after first 20 hours of operation. Check and adjust the belt every 50 hours thereafter. To adjust the belt: 4.8.1... -
Page 27: Exciter Lubrication
VP 1340A/VP 1550A Maintenance Exciter Lubrication See Graphic: wpmgr006018 The bearings in the exciter assembly are splash lubricated and rotate at very high speed. It is important to maintain the exciter oil at the correct level and change it regularly. -
Page 28: Lifting Machine
Maintenance VP 1340A/VP 1550A 4.11 Lifting Machine See Graphic: wpmgr006022 See Technical Data for weight of the machine. To lift machine manually: 4.11.1 Stop the engine. 4.11.2 Obtain help from a partner and plan the lift. To avoid burns or fire hazards, let the engine cool before transporting the machine or storing it indoors. -
Page 29: Transporting Machine
VP 1340A/VP 1550A Maintenance 4.12 Transporting Machine See Graphic: wpmgr006042 To avoid burns or fire hazards, let engine cool before transporting machine or storing indoors. WARNING 4.12.1 Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling. -
Page 30: Troubleshooting
Maintenance VP 1340A/VP 1550A 4.14 Troubleshooting Problem / Symptom Reason / Remedy Plate does not develop full • Engine throttle control not completely open. speed. Poor compaction. • Throttle control not adjusted correctly. • Ground too wet, plate sticking. Allow soil to dry before compacting. -
Page 31: Ec Declaration Of Conformity
Net installed power / absolute installierte Leistung / Potencia instalada neta / Puissance installée nette : VP 1340A, VP 1340AW, VP 1550A, VP 1550AW 3,6kW Has been sound tested per Directive 2000/14/EC / In Übereinstimmung mit Richtlinie 2000/14/EG bewertet worden ist / Ha sido ensayado en conformidad con la norma 2000/14/CE / A été... - Page 32 Fax: +49 - (0)89-3 54 02-3 90 Wacker Neuson Corporation · P.O. Box 9007 · Menomonee Falls, WI 53052-9007 · Tel. : (262) 255-0500 · Fax: (262) 255-0550 · Tel. : (800) 770-0957 Wacker Asia Pacific Operations · Skyline Tower, Suite 2303, 23/F · 39 Wang Kwong Road, Kowloon Bay, Hong Kong · Tel. +852 2406 60 32 · Fax: +852 2406 60 21...
