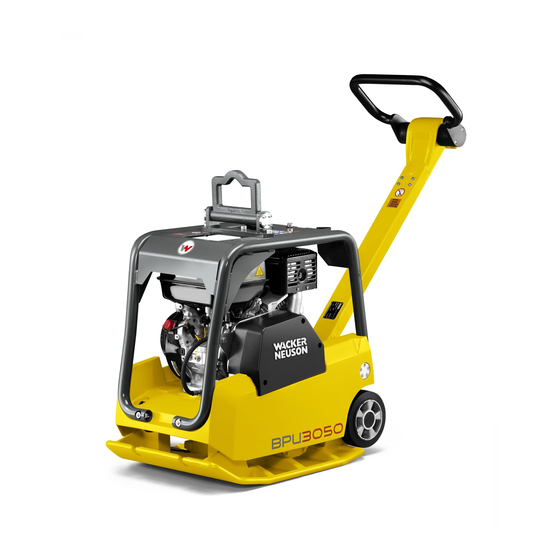

Wacker Neuson BPU 3050A Operator's Manual
  1. Manuals
  2. Brands
  3. Wacker Neuson Manuals
  4. Power Tool
  5. BPU 3050A
  6. Operator's manual

Wacker Neuson BPU 3050A Operator's Manual

Wacker neuson vibratory plate operator's manual
Hide thumbs Also See for BPU 3050A:
Table of Contents

Advertisement

Quick Links

www.wackergroup.com
0203080en
001
01.2005
Vibratory plate
BPU 3050A
Operator´s Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPU 3050A and is the answer not in the manual?

Questions and answers

James kuhns
June 4, 2025

What size belt

0

Related Manuals for Wacker Neuson BPU 3050A

Summary of Contents for Wacker Neuson BPU 3050A

  • Page 1 0203080en 01.2005 Vibratory plate BPU 3050A Operator´s Manual...
  • Page 3 CONTENTS Type Item no. BPU 3050A 0008763 ... This machine has been equipped with an EPA certified engine. Additional information can be found in the engine manufacturers notes. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

  • Page 5: Foreword

    FOREWORD Foreword For your own safety and protection from bodily injuries, carefully read, understand and follow the safety instruc- tions in this manual. Please operate and maintain your Wacker machine in accordance with the instructions in this manual. Defective machine parts are to be replaced as soon as possible. All rights, especially the right for copying and distribution are reserved.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS FOREWORD SAFETY INSTRUCTIONS General instructions Operation Safety checks Maintenance Transport Maintenance checks TECHNICAL DATA DESCRIPTION Applications Dimensions Max. admissible inclination Description of function TRANSPORT TO WORK SITE, RECOMMENDATIONS ON COMPACTION Transport to work site Recommendations on compaction OPERATION Engine check before starting Starting the engine...
  • Page 7 TABLE OF CONTENTS FAULTS Reverse speed too low Forward speed too low No advance Loss of hydraulic oil Engine does not start EC - CONFORMITY-CERTIFICATE...

  • Page 8: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR THE USE OF VIBRATORY PLATES WITH COMBUSTION ENGINES General instructions Vibratory plates may only be operated by persons who * are at least 18 years of age * are physically and mentally fit for this job * have been instructed in guiding vibratory plates and proved their ability for the job to the employer * may be expected to carry out the job they are charged with carefully.

  • Page 9: Safety Checks

    SAFETY INSTRUCTIONS Make sure the soil or subsoil to be compacted has a high enough load carrying capacity. Use appropriate protective clothing while working or while carrying out maintenance work. When traveling backwards the operator has to guide the vibration plate laterally by its guide handle so that he will not be squeezed between the handle and a possible obstacle.

  • Page 10: Technical Data

    TECHNICAL DATA BPU 3050A Item no. 0008763 ... Advance and reverse travel m/min: Compacted area Operating weight Power transmission From drive engine directly to exciter unit via centrifugal clutch and V-belt Exciter Vibrations (Hz): ca. 5400 (90) Centrifugal force Fuchs Titan Unic 10W40 MC (SAE 10W40)

  • Page 11: Description

    DESCRIPTION Applications The machine is perfectly suited for the compaction of all types of soil including semi-cohesive soils in trench and surface compaction applications as well as for the compaction of asphalt pavements and the vibration of interlocking paving stones. This machine is the most universally deployable machine of this line of products thanks to the optimum balance between the centrifugal force and the contact surface.

  • Page 12: Description Of Function

    DESCRIPTION Description of function The vibration required for compaction is produced by the exciter (5) which is firmly joinded to the lower mass (4). This exciter (5) is designed as a central vibrator with aligned vibrations. Such a principle permits the direc- tion of vibration to be changed by turning the eccentric weights (13).

  • Page 13: Transport To Work Site, Recommendations On Compaction

    TRANSPORT TO WORK SITE, RECOMMENDATIONS ON COMPACTION Transport to work site Conditions: To transport the vibration plate, use only suitable lifting equipment with a minimum load-bearing capacity of 200 kg. Only attach suitable tackle at the central lifting point (15) provided. Always tie down the vibratory plate by the protective frame (14) and latch the center pole in place during transport of the vibratory plate on the loading area of a transport vehicle.

  • Page 14: Operation

    OPERATION Engine check before starting 1. Oil level check Insert dipstick in oil filler neck, but without screwing in. If oil level is low, fill to the top of the oil filler neck with high grade Fuchs Titan Unic 10W40 MC oil. ATTENTION! Place machine in horizontal position before checking engine oil level.
  • Page 15 OPERATION 3. Pull the throttle lever (6) back slightly. 4. Turn the engine switch to the „I“ position. 5. Pull the starter grip lightly until resistance is felt, then pull briskly. Caution: Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter.

  • Page 16: Operation The Engine

    OPERATION Operation the engine As the engine warms up, gradually move the choke lever to the OPEN position. Position the throttle lever for the desired engine speed. Oil alert system The oil alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crank- case.

  • Page 17: Stopping The Engine

    OPERATION Stopping the engine To stop the engine in an emergency, turn the engine switch to the „0“ position. Under normal conditions, use the following procedure: 1. Push the throttle lever forward all the way to the stop. 2. Turn the ignition switch to the „0“ position. 3.

  • Page 18: Maintenance

    MAINTENANCE Maintenance schedule Check all external screw connections for tight fit approx. 8 hours after first operation. Parts Maintenance jobs Maintenance interval Air filter Check for external damage and tight fit. daily Check filter cartridge, clean or replace if necessary. Fuel tank Check tank lid for tight fit, replace if necessary.

  • Page 19: Engine Oil

    MAINTENANCE Engine oil Check oil level: The engine must be horizontally place when filling in oil or checking the oil level. Check oil level with dip stick (16). If oil level is to low, top up with brand quality oil Fuchs Titan Unic 10W40 MC through oil feed opening (16).

  • Page 20: Hydraulic Control

    MAINTENANCE Hydraulic control Check oil level: 1. Move centre pole into vertical position. 2. Push operating control handle (7) to forward travel position. 3. Open filler bore (17). 4. The oil level must reach the upper edge of the gear; add Fuchs Renolin MR 520 hydraulic fluid if required.

  • Page 21: Fuel Strainer Cup Cleaning

    MAINTENANCE Fuel strainer cup cleaning Turn the fuel valve to Off. Remove the sediment cup and O-ring, and wash them in nonflammable or high flash point solvent. Dry them thoroughly, and reinstall securely. Turn the fuel valve on, and check for leaks. Spark plug Recommended spark plug: BP6ES-11, BPR6ES-11 (NGK), W20EP-U11, W20EPR-U11 (ND).

  • Page 22: Air Filter Service

    MAINTENANCE Air filter service A dirty air filter will restrict air flow to the carburettor. To prevent carburettor malfunction, service the air filter regularly. Service more freqently when operating the engine in extremely dusty areas. Warning: Never use gasoline or low flash point solvents for cleaning the air cleaner element. A fire or ex- plosion could result.
  • Page 23 FAULTS Reverse speed too low Cause: - Too little hydraulic oil in the centre pole head. - Air in hydraulic control. Remedy: - Top up hydraulic oil. - Bleed system. Forward speed too low Cause: - Too much oil in centre pole head. Remedy: - Correct oil level in accordance with mark.
  • Page 25 Wacker Construction Equipment AG , Preußenstraße 41, 80809 München hereby certify that the construction equipment specified hereunder: 1. Category: Vibratory plate 2. Type: BPU 3050A 3. Equipment item number: 0008763 ... 4. absolute installed power: 6,6 kW has been evaluated in conformity with Directive 2000/14/EC: Conformity At the following notified...
  • Page 27 DIN EN ISO 9001 CERTIFICATE...
  • Page 28 Wacker Construction Equipment AG Preußenstraße 41 80809 München Tel.: +49-(0)89-3 54 02-0 Fax: +49-(0)89-3 54 02-390 Wacker Corporation - P.O. Box 9007 - Menomonee Falls, WI 53052-9007 - Tel.: +1-(1)(262)-255-0500 - Fax: +1-(1)(262)-255-0550 - Tel.: (800)770-0957 Wacker Asia Pacific Operations-Skyline Tower, Suite 2303, 23/F, 39 Wang Kwong Road, Kowloon Bay, Hong Kong-Tel.: +852 2406 6032-Fax: +852 2406 6021...
