Smart Machine Smart Decision
2
Package Information
2.1
Pin Configuration
All hardware interfaces which connect SIM5215&SIM5216 to customers' application platform are through
70 pins B2B connector. Figure 2 is SIM5215&SIM5216 outline diagram.

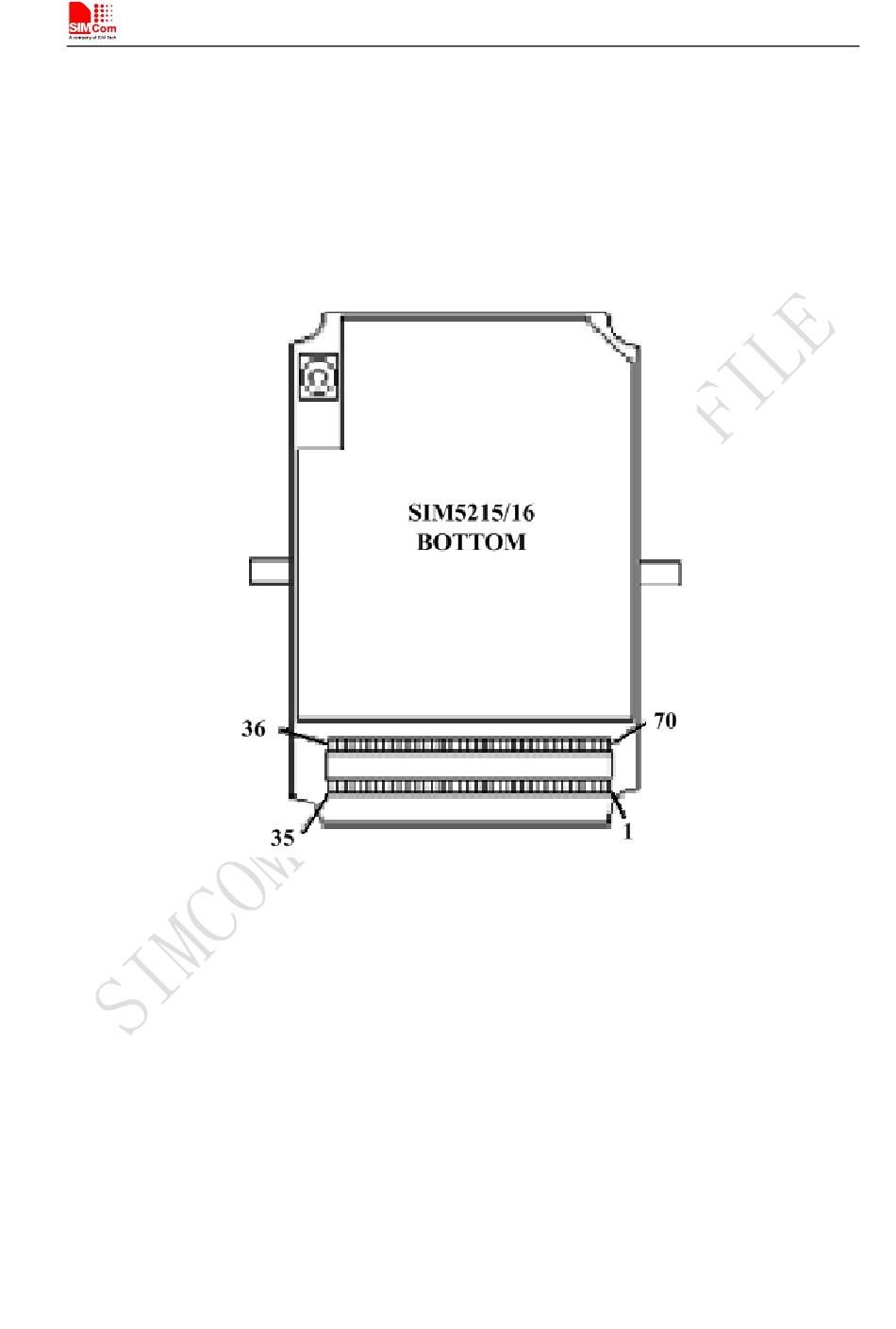

Figure 2: Pin view
13
SIM5215&SIM5216_Hardware Design_V2.02
2012-08-31
