Hardware Interface Overview

Sub-interfaces are described in detail in the next chapter, which includes:
●
Power Supply
●
USB Interface
●
Serial Interface
●
Analog Audio Interfaces
●
SIM Interface
●
GPIO
●
ADC
●
LDO Power Output
●
Camera Interface
●
PCM Interface
●
SDIO Interface
●
RTC
●
I2C Interface
1.3

Hardware Diagram

The global architecture of the SIM5215&SIM5216 Embedded module is described in the figure below.
SIM5215&SIM5216_Hardware Design_V2.02

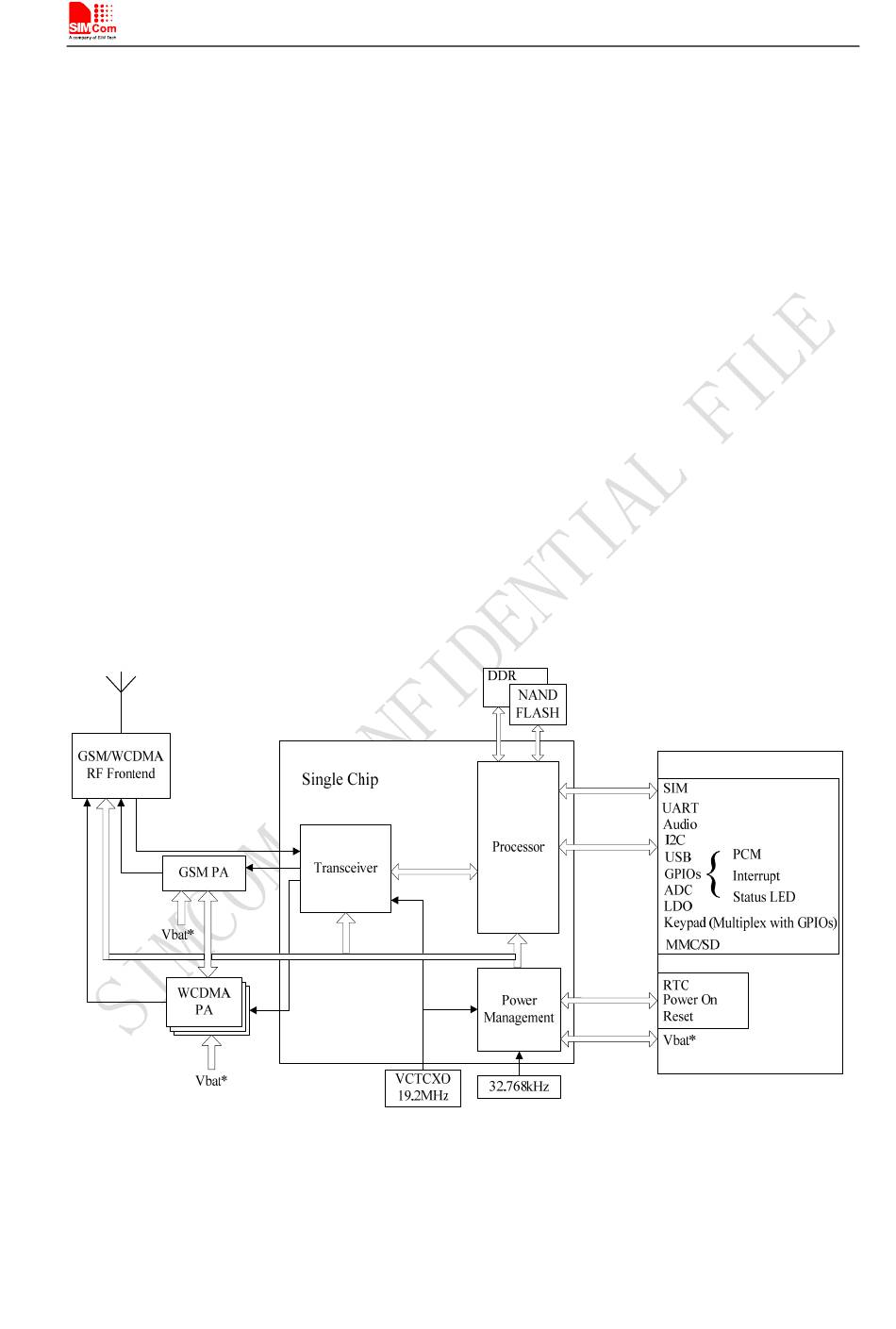

Figure 1: SIM5215&SIM5216 functional architecture
