Smart Machine Smart Decision
2
Package Information
2.1
Pin Assignment Overview
All functions of the SIM7000G will be provided through 68 pads that will be connected to the
customers' platform. The following Figure is a high-level view of the pin assignment of the
SIM7000.

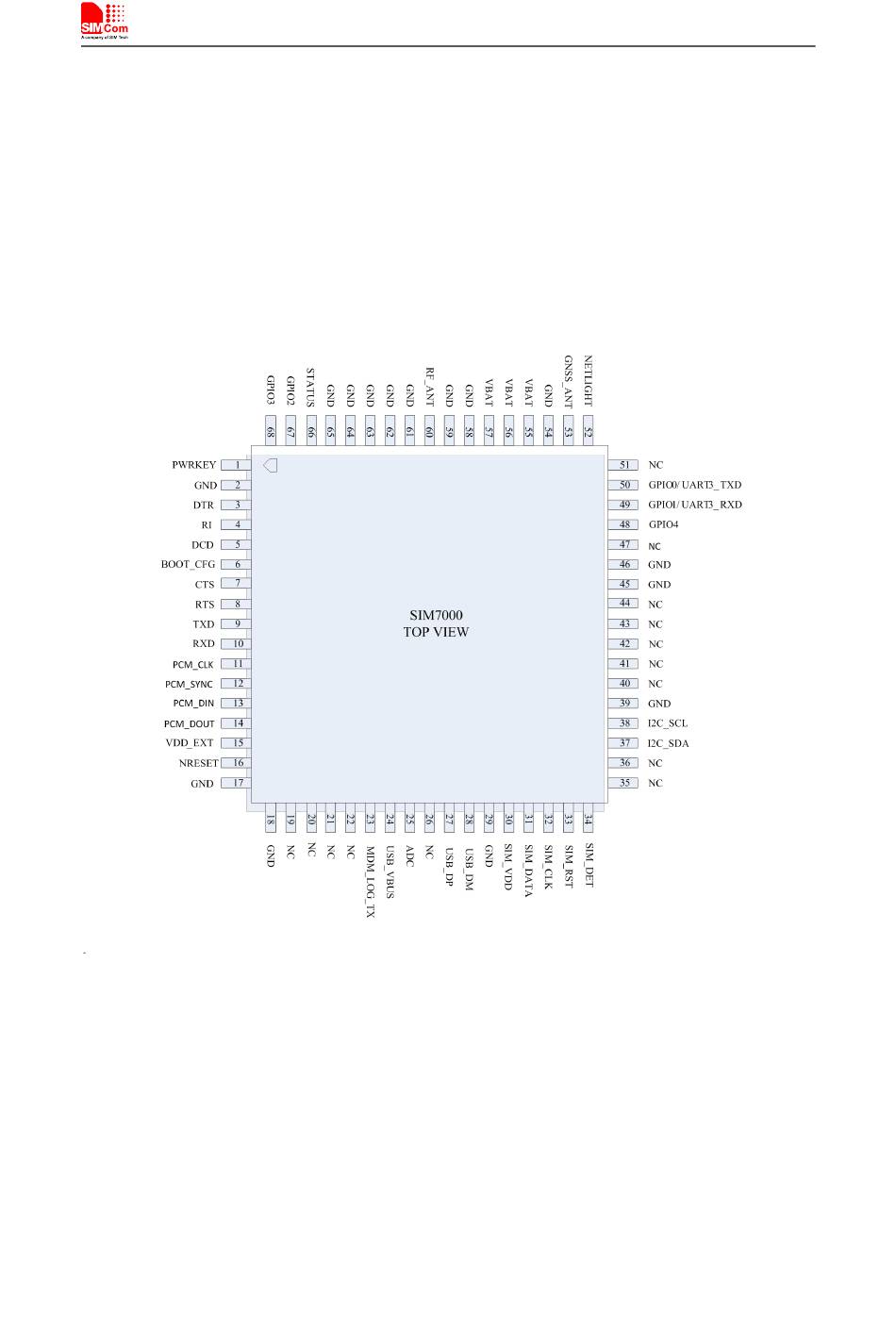

Figure 2: Pin assignment overview
SIM7000 _Hardware Design _V1.00
2017-05-23
