Package Information

2.1

Pin Assignment Overview

All functions of the SIM7600V-H will be provided through 87 pads that will be connected to the
customers' platform. The following Figure is a high-level view of the pin assignment of the
SIM7600V-H.
SIM7600V-H_User Manual_V1.00
SIM7600V-H
(Top View)

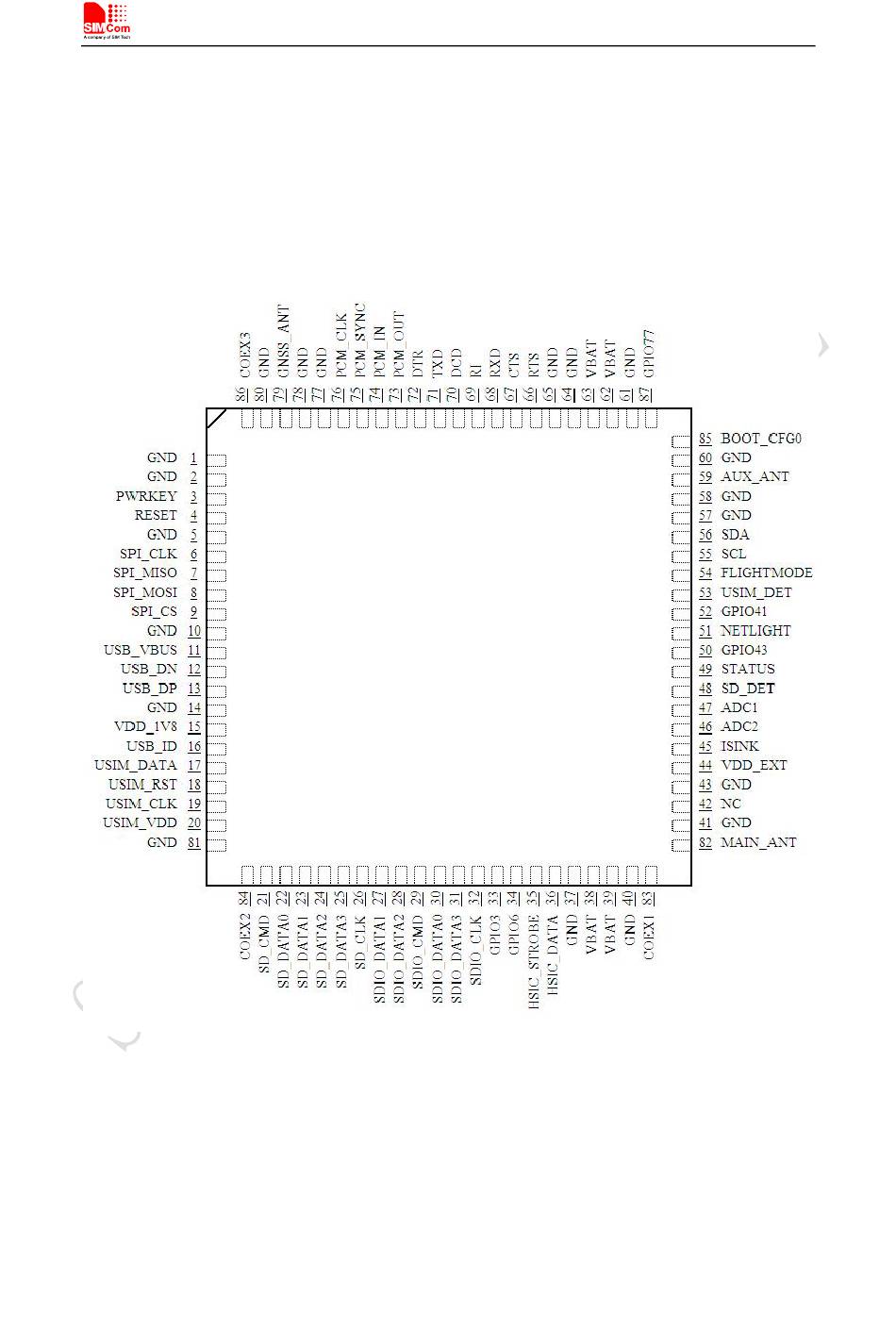

Figure 2: Pin assignment overview
