Smart Machine Smart Decision

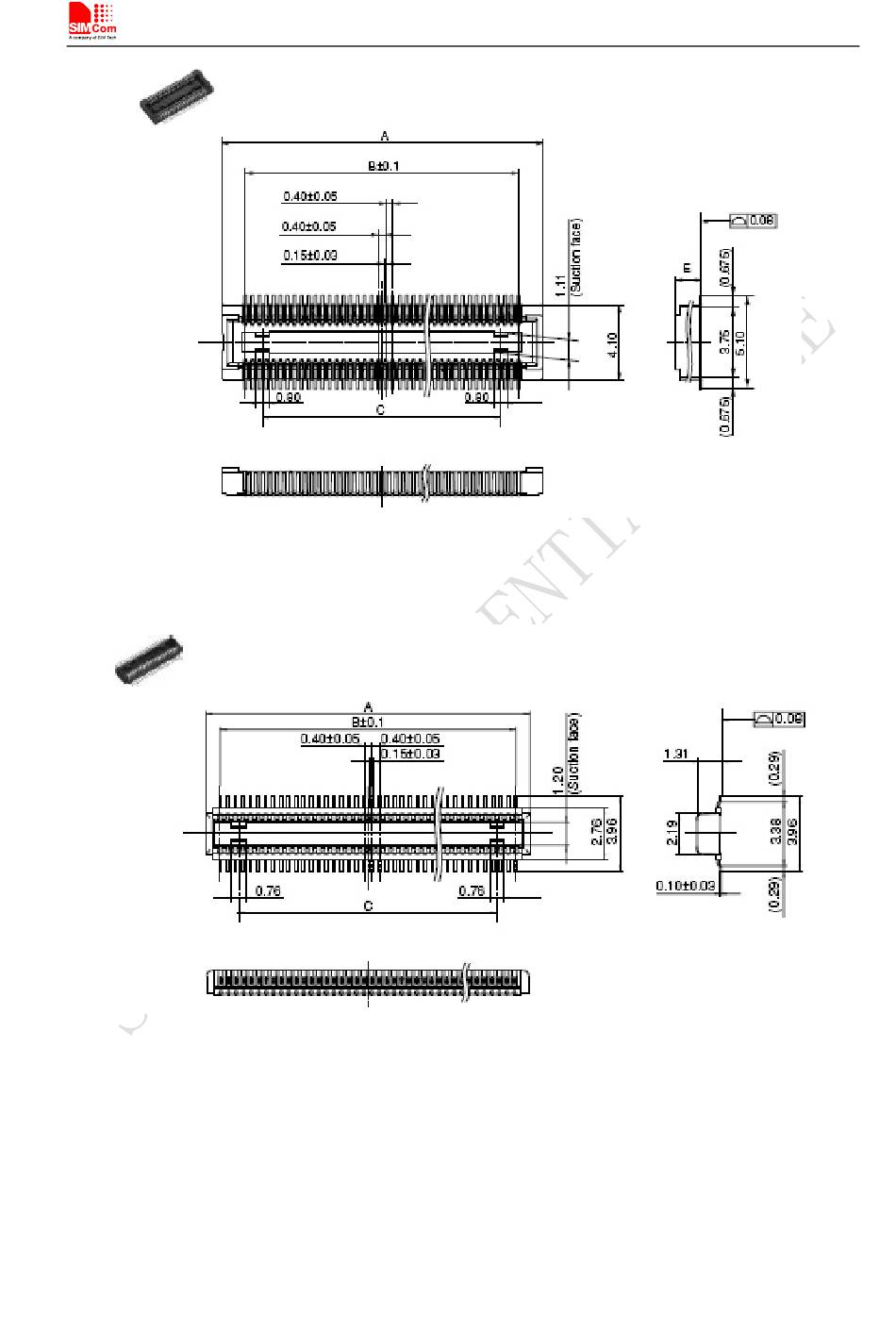

Figure 3: Board to Board connector jack（NAIS AXK770247G）
Figure 4: Board to Board connector pin（NAIS AXK870145W）
（
）
Note: We recommend users to adopt the board to board connector jack
NAIS AXK770247G
to connect with
（
）
SIM5215A&SIM5216A
NAIS AXK870145W
.
14
SIM5215&SIM5216_Hardware Design_V2.02
2012-08-31
