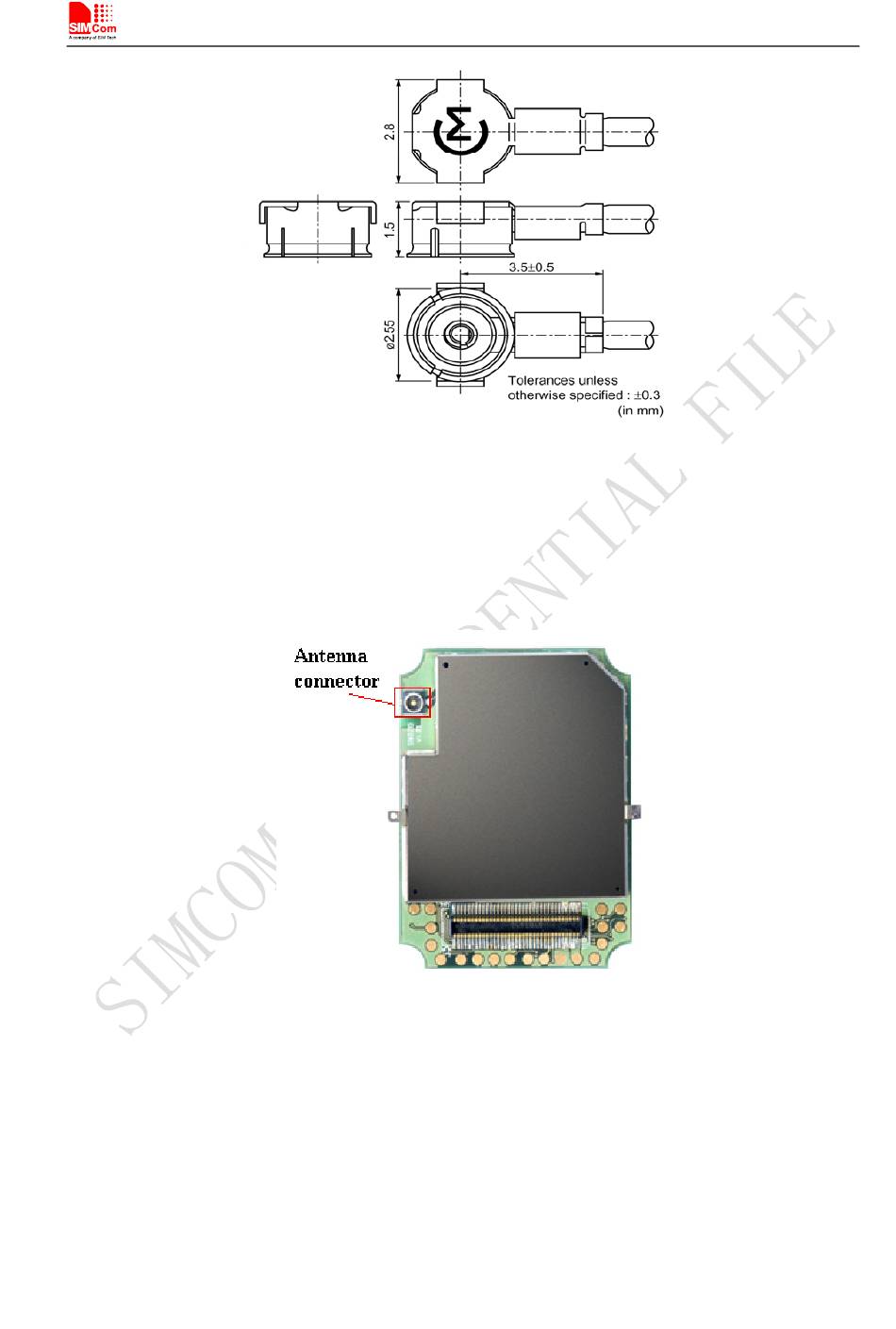

Figure 42: RF adapter cable MXTK88TK2000
4.3.1
Antenna connector
SIM5215A&SIM5216A use MURATA MM9329-2700 RF connector. MURATA MXTK88XXXXX as
matching connector is recommended to use in the host board. Refer to the following figure for details.
Figure 43: Module antenna connector
55
SIM5215&SIM5216_Hardware Design_V2.02
2012-08-31
