2 0 0 3 - 2 0 0 7 K a w a s a k i V N 1 6 0 0

Parts List

1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i209-411
i209-411
www.powercommander.com

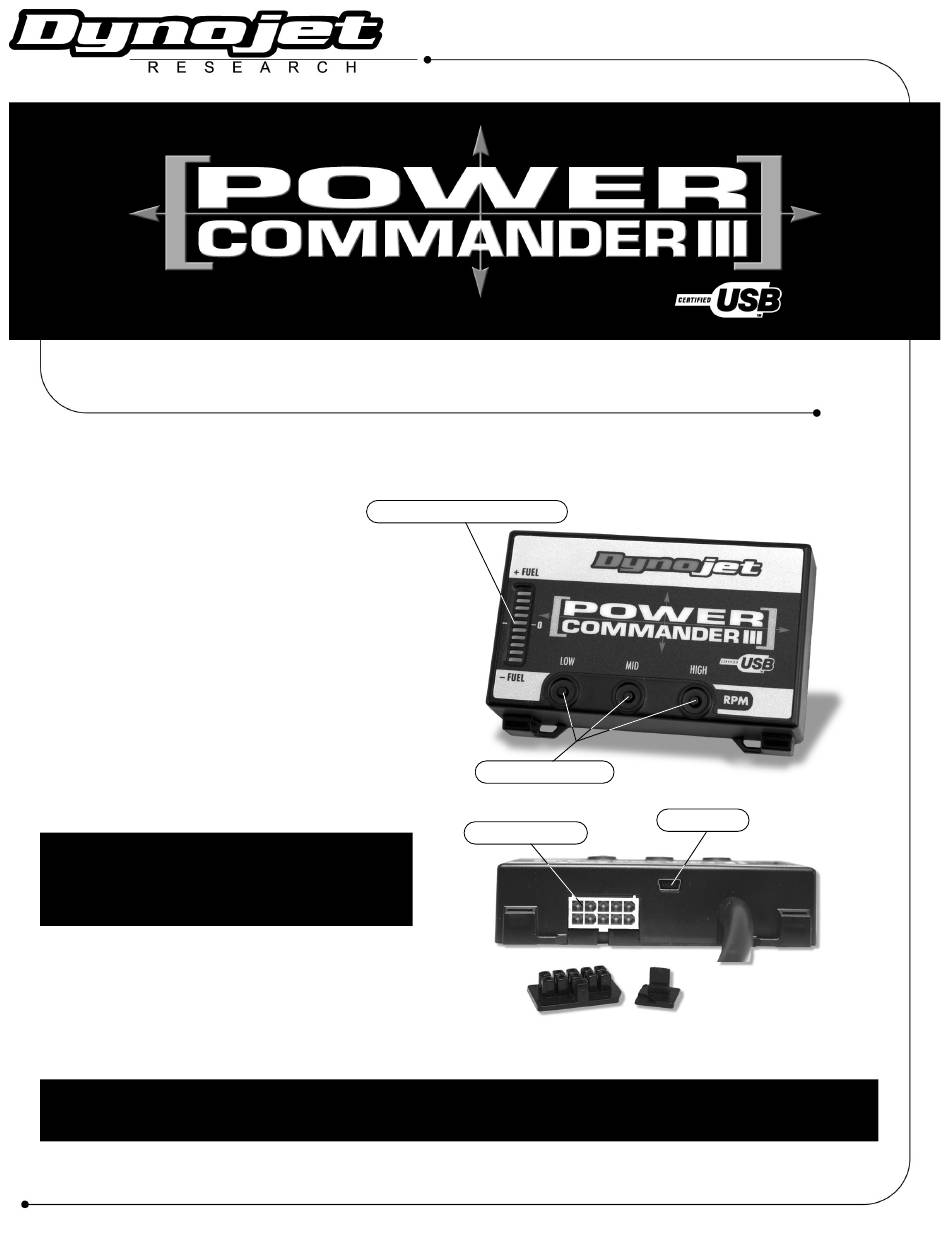

I n s ta l l a t i o n I n s t r u c t i o n s

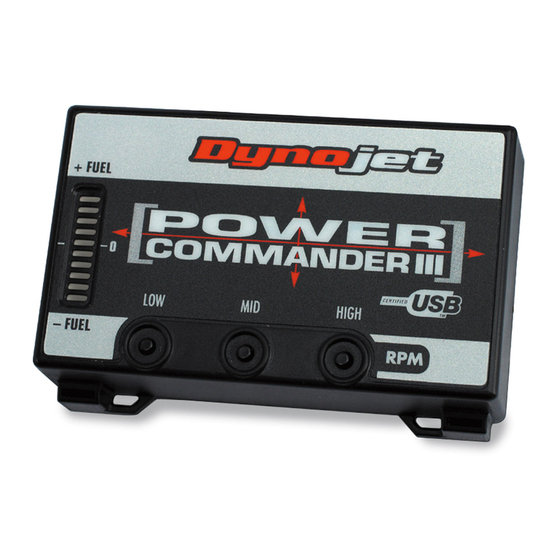

Button Adjustment Display
Faceplate Buttons
Expansion Port
USB Port
2003-2007 Kawasaki VN1600 - PCIII USB - 1
