I Motor and DC coils connections on IP 00
IP 00 enclosed VLTs 5300-5500, VLT 6350-6550 and
VLT 8350-8550 require installation of the motor and
DC coils by the customer. Minimum length of cables
are supplied with the VLT frequency converter.
To DC bus line
+DC 118, - DC 117
To DC bus line
+DC 89, - DC 88
MG.56.A2.02 - VLT is a registered Danfoss trademark
DC bus coils
Motor coils
®
VLT 5000/6000/8000 Series

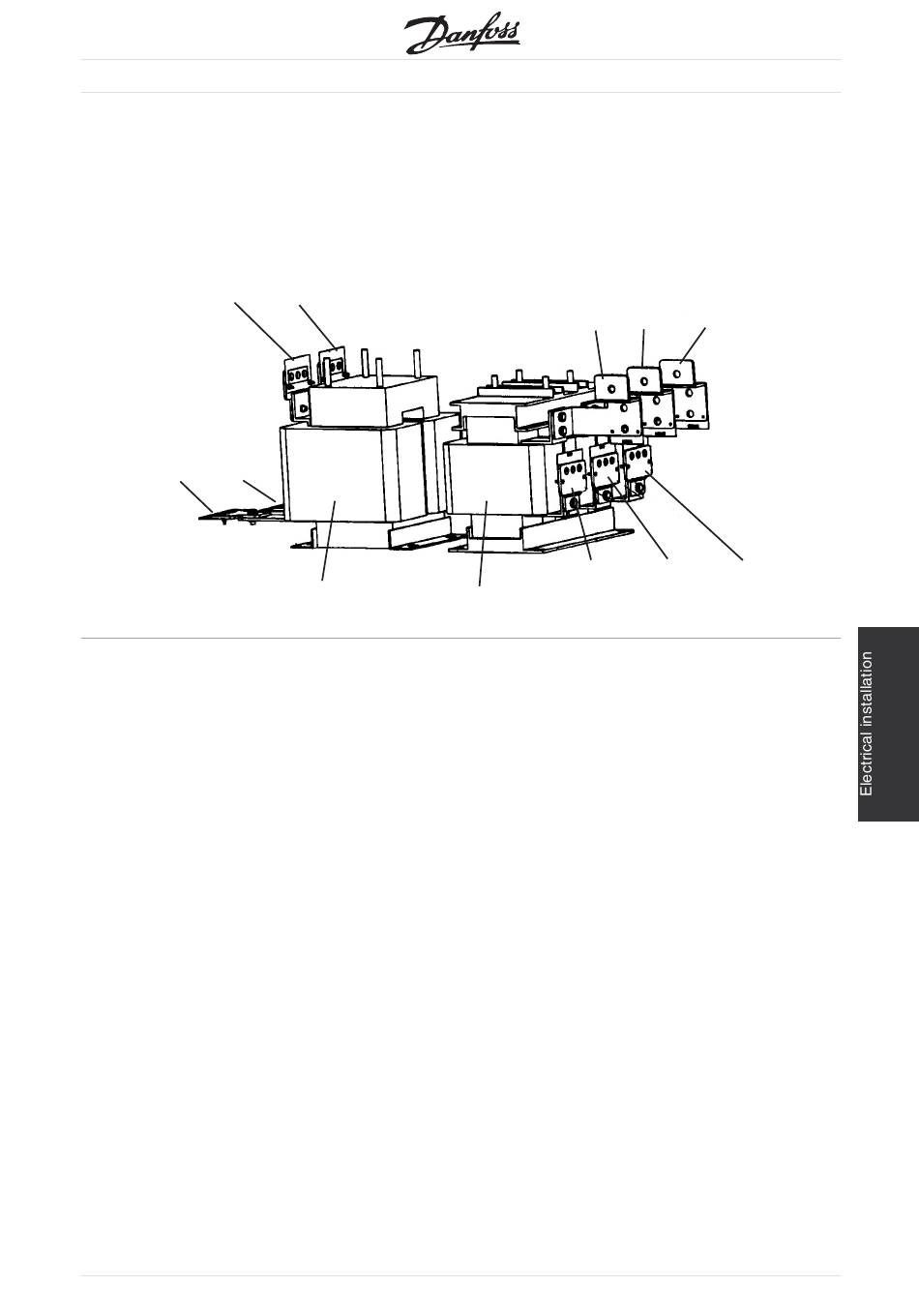

See below drawing for the connection between DC
coils and the VLT frequency converter and motor
coils and the VLT frequency converter.
To motor
U/T1/96, V/T2/97, W/T3/98
U2/T1/119, V2/T2/120, W2/T3/121
To motor terminals on VLT
