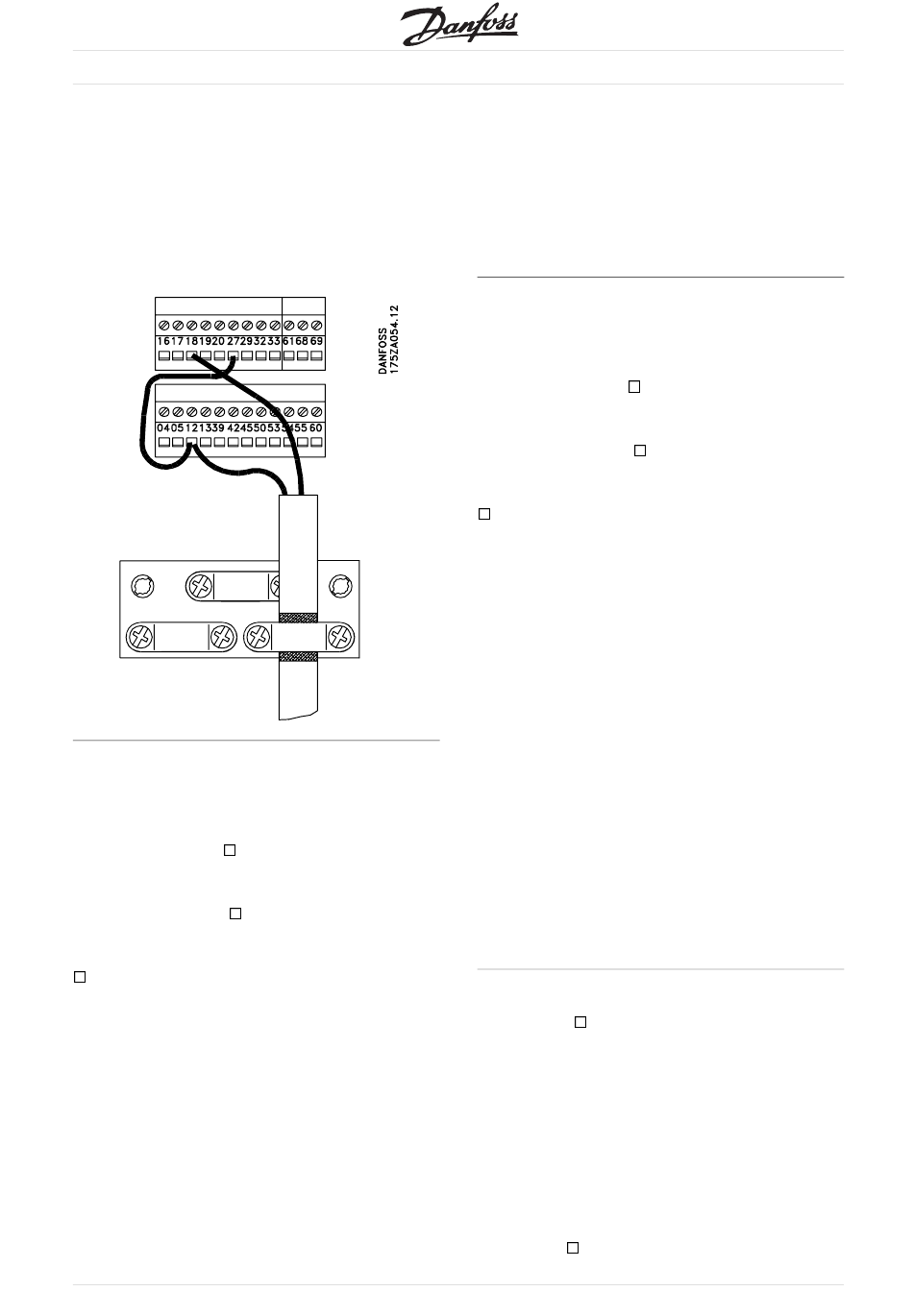

I Electrical installation, control leads
Note: The terminals on the control card are detachable.
Connect a jumper between terminals 12 +
24 Volt and 27 Coast.
Mount screened cable to external start/stop of control
terminals 12 + 24 Volt and 18 Start.
I Programming the VLT 5000
The frequency converter is programmed
over the control panel.
Press QUICK MENU
The Quick Menu appears in the display. You choose
parameters by means of ↑ and ↓.
Press CHANGE DATA
Data values are changed using ↑ and ↓.
Press → or ← to move the cursor. Press OK
to save your parameter setting.
Set the desired language in parameter 001.
You have six possibilities: English, German,
French, Danish, Spanish, Italian.
Set motor parameters according to the motor plate:
Motor power
Motor voltage
Motor frequency
Motor current
Rated motor speed
Set frequency interval and ramp times.
28
.
to change parameter value.
Parameter 102
Parameter 103
Parameter 104
Parameter 105
Parameter 106
®
VLT 5000/6000/8000 Series
Min. reference
Max. reference
Ramp up time
Ramp down time
Set Operation site, parameter 002 for Local.
I Programming the VLT 6000 and VLT 8000 AQUA
The frequency converter is programmed
over the control panel.
Press QUICK MENU
The Quick Menu appears in the display. You choose
parameters by means of ↑ and ↓.
Press CHANGE DATA
Data values are changed using ↑ and ↓.
Press → or ← to move the cursor. Press OK
to save your parameter setting.
Set the desired language in parameter 001. You have
nine possibilities: English, German, French, Danish,
Spanish, Italian, Swedish, Dutch and Portuguese.
Set motor parameters according to the motor plate:
Motor power
Motor voltage
Motor frequency
Motor current
Rated motor speed
Set frequency interval and ramp times.
Min. reference
Max. reference
Ramp up time
Ramp down time
Relay 1 function
Relay 2 function
I Motor start
Press START on VLT 5000 to start the motor or
HAND START on VLT 6000 HVAC to start the motor.
Set motor speed in parameter 003 by VLT 5000.
Set motor speed with the +/- keys on LCP
of VLT 6000 and VLT 8000.
Check if the direction of rotation is as shown
in the display. It can be changed by swapping
two phases of the motor cable.
Press STOP or OFF/STOP to stop the motor.
MG.56.A2.02 - VLT is a registered Danfoss trademark
Parameter 204
Parameter 205
Parameter 207
Parameter 208
.
to change parameter value.
Parameter 102
Parameter 103
Parameter 104
Parameter 105
Parameter 106
Parameter 204
Parameter 205
Parameter 207
Parameter 208
Parameter 323
Parameter 326
