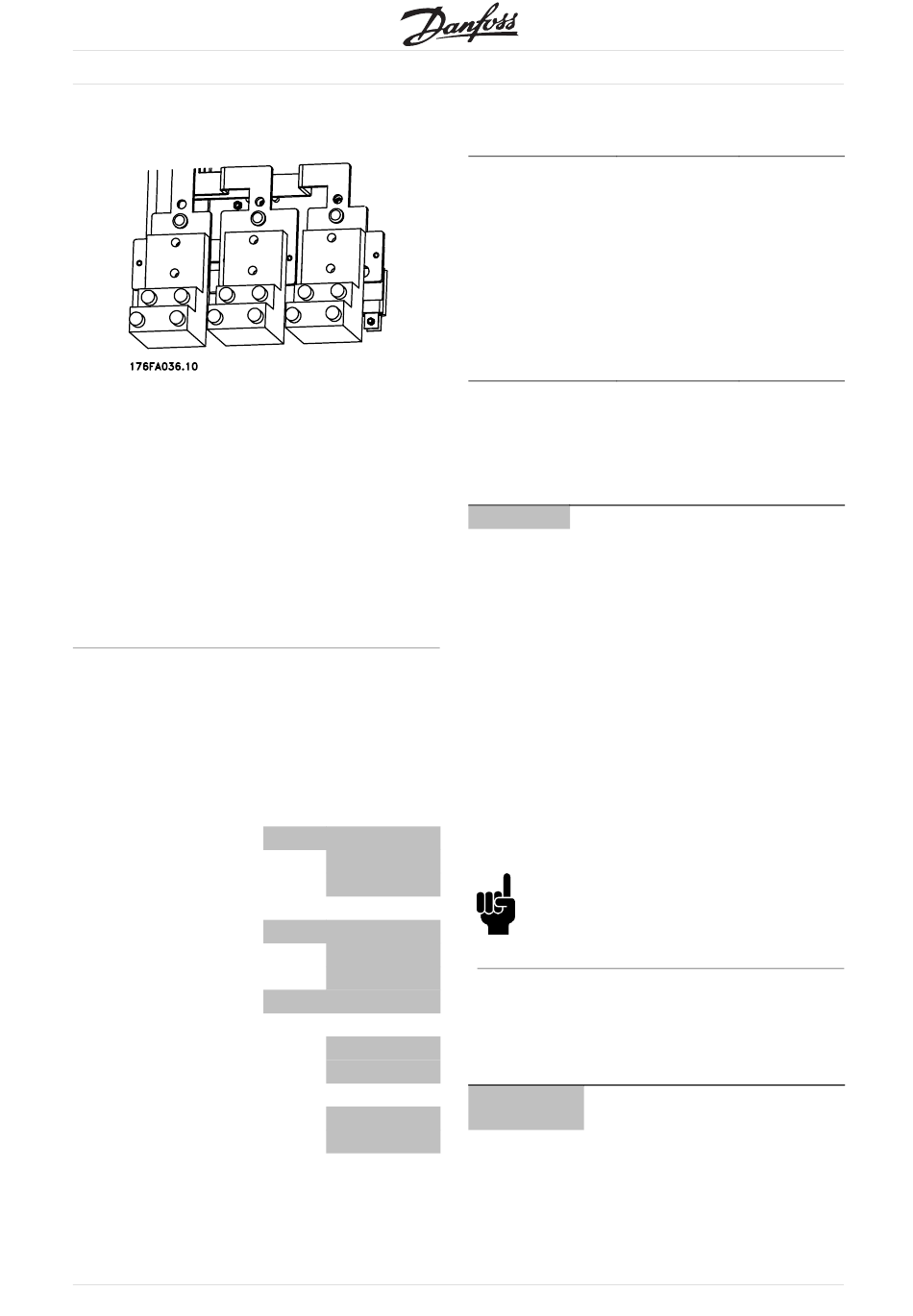

I Terminal adapter kit
The terminal adapter kit is an optional kit for VLT
5300-5500, VLT 6350-6650 and VLT 8350-8550.
The terminal adapter kit makes it possible to connect
the power wires with the power terminals i.e. the
mains-, motor-, load sharing and brake terminals.
The ordering numbers of the terminal adapter kit are:
VLT 5300-5500/6350-6550 EX, DX
VLT 5300-5500 EB, DE
VLT 8350-8550 EX, DX
I Tightening-up torques
The table shows the torque required when fitting
terminals to the VLT frequency converter.
For VLT 5300-5500, VLT 6350-6550 and VLT
8350-8550 the cables must be fastened with
bolts or the terminal adapter kit. These figures
apply to the following terminals:
Mains terminals
Motor terminals
Earth terminal
Brake resistor
terminals
Loadsharing
18
176F1815
176F1816
175F1815
Nos R, L1, 91
S, L2, 92
T, L3, 93
Nos U, T1, 96
V, T2, 97
W, T3, 98
No 95
R- 81
R+ 82
DC- 88
DC+ 89
®
VLT 5000/6000/8000 Series
VLT type
1)
VLT 5300-5500
VLT 6350-6550
VLT 8350-8550
1)
For the brake terminals, the tightening-up torque
is 11.3 (8.33 lb-ft) Nm and the bolt size M8.
I Installation of 24 Volt external DCsupply
Torque: 0.5 - 0.6 Nm
Screw size: M3
No. Function
35, 36 24 V external DC supply
24 V external DC supply can be used as low-voltage
supply to the control card and any option cards
installed. This enables full operation of the LCP
(incl. parameter setting) without connection to mains.
Please note that a warning of low voltage will be
given when 24 V DC has been connected; however,
there will be no tripping. If 24 V external DC supply
is connected or switched on at the same time as
the mains supply, a time of min. 200 msec. must
be set in parameter 120 Start delay.
A pre-fuse of min. 6 Amp, slow-blow, can be
fitted to protect the external 24 V DC supply.
The power consumption is 15-50 W, depending
on the load on the control card.
NB!:
Use 24 V DC supply of type PELV to ensure
correct galvanic isolation (type PELV) on the
control terminals of the VLT frequency converter.
I Installation of brake resistor temperature switch
Torque: 0.5-0.6 Nm
Screw size: M3
No. Function
106, 104, Brake resistor temperature switch.
105
MG.56.A2.02 - VLT is a registered Danfoss trademark
Tightening-up Bolt
torque size
42 Nm M12
(31 lb-ft)
42 Nm M12
(31 lb-ft)
42 Nm M12
(31 lb-ft)
