Mechanical installation

I Mechanical dimensions
VLT 5300-5500 380-500 Volt, VLT 6350-6550 380-460 Volt and VLT 8350-8550 380-480 Volt
VLT type
5300-5500/6350-6550/
8350-8550 IP 00
5300-5500/6350-6550/
8350-8550 Nema 1 (IP 20)
5300-5500/6350-6550/
8350-8550 IP 54
ab: Min. space above enclosure.
l/r: Min. distance between VLT frequency converter
and other plant components, left and right sides.

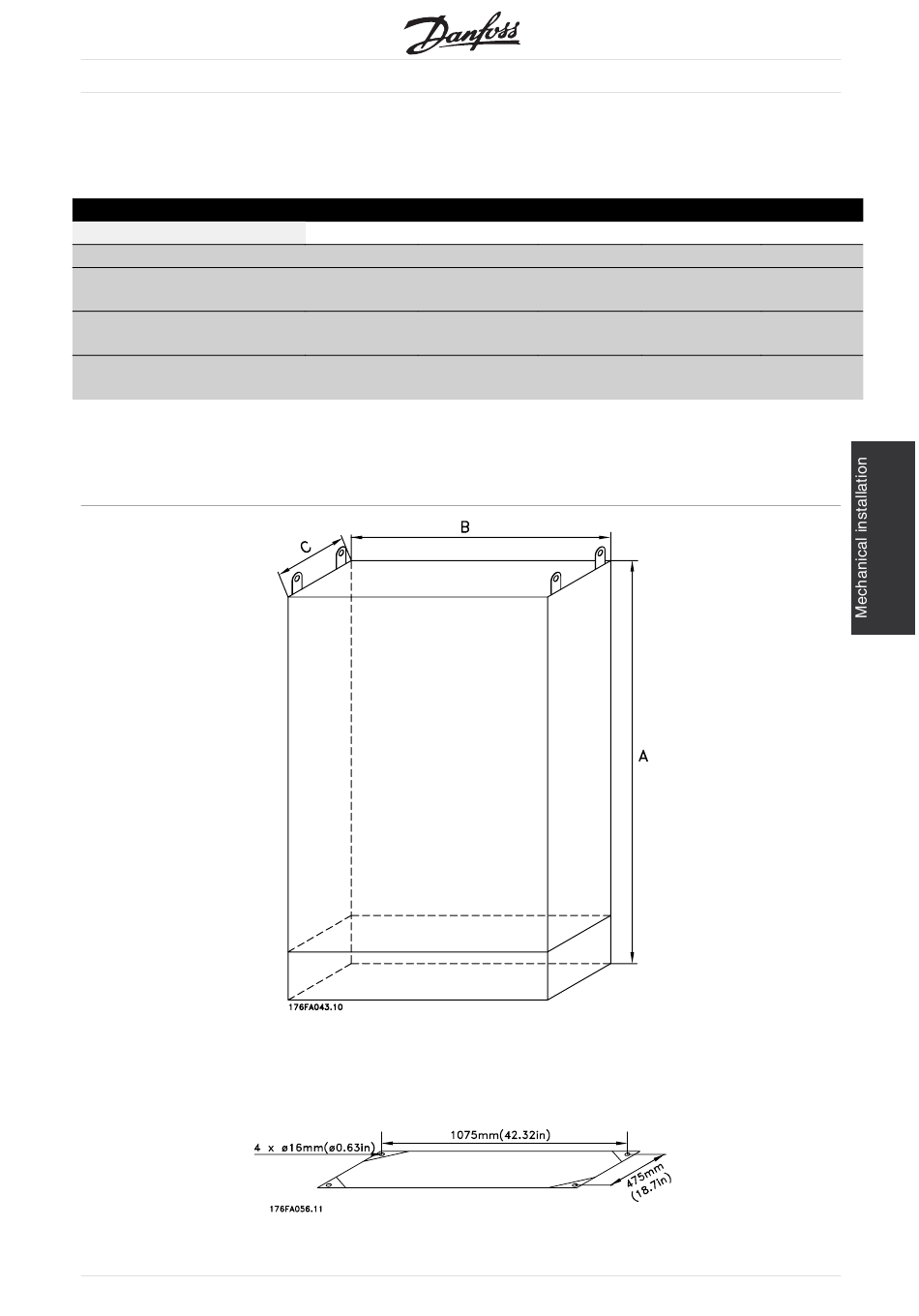

VLT 5300-5500, VLT 6350-6550 and VLT 8350-8550
must be fastened to the floor with bolts. The
drawing shows the dimensions.
MG.56.A2.02 - VLT is a registered Danfoss trademark
A mm (in) B mm (in)
1896 (74.65) 1099 (43.27)
2010 (79.13) 1200 (47.24)
2010 (79.13) 1200 (47.24)
®
VLT 5000/6000/8000 Series
C mm (in) ab mm (in)
494 (19.45) 400 (15.75)
600 (23.62) 400 (15.75)
600 (23.62) 400 (15.75)
l/r mm (in)
0
0
0
