I Mains connection
Mains must be connected to terminals R/L1/91,
S/L2/92, T/L3/93.
NB!:
Check the name plate to ensure that the
mains voltage of the VLT frequency converter
matches the power supply of your plant.
Ensure that the power supply can supply
the necessary current to the VLT frequency
converter, see Technical data.
If the unit is without built-in mains disconnector and
fuses, ensure that the appropriate disconnector or
fuses have the correct current rating.
See Technical data for correct sizing of
cable cross-sections.
See Electrical installation prodedures for how install
the mains connections to the VLT frequency converter.

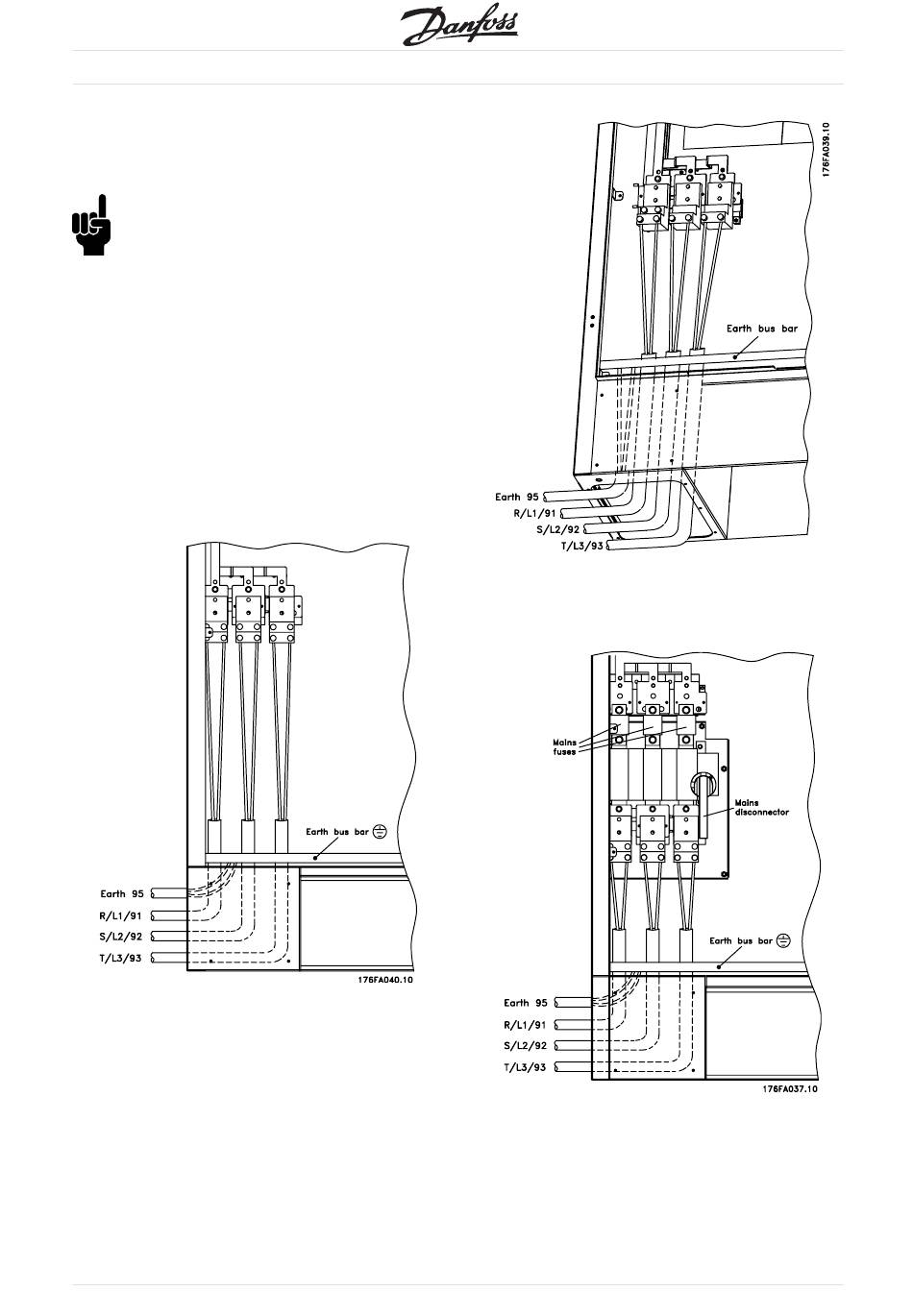

Mains connection from the side without
built-in disconnector and fuses
20
®
VLT 5000/6000/8000 Series
Mains connection from the bottom without
built-in disconnector and fuses
Mains connection from the side with built-in
disconnector and fuses
