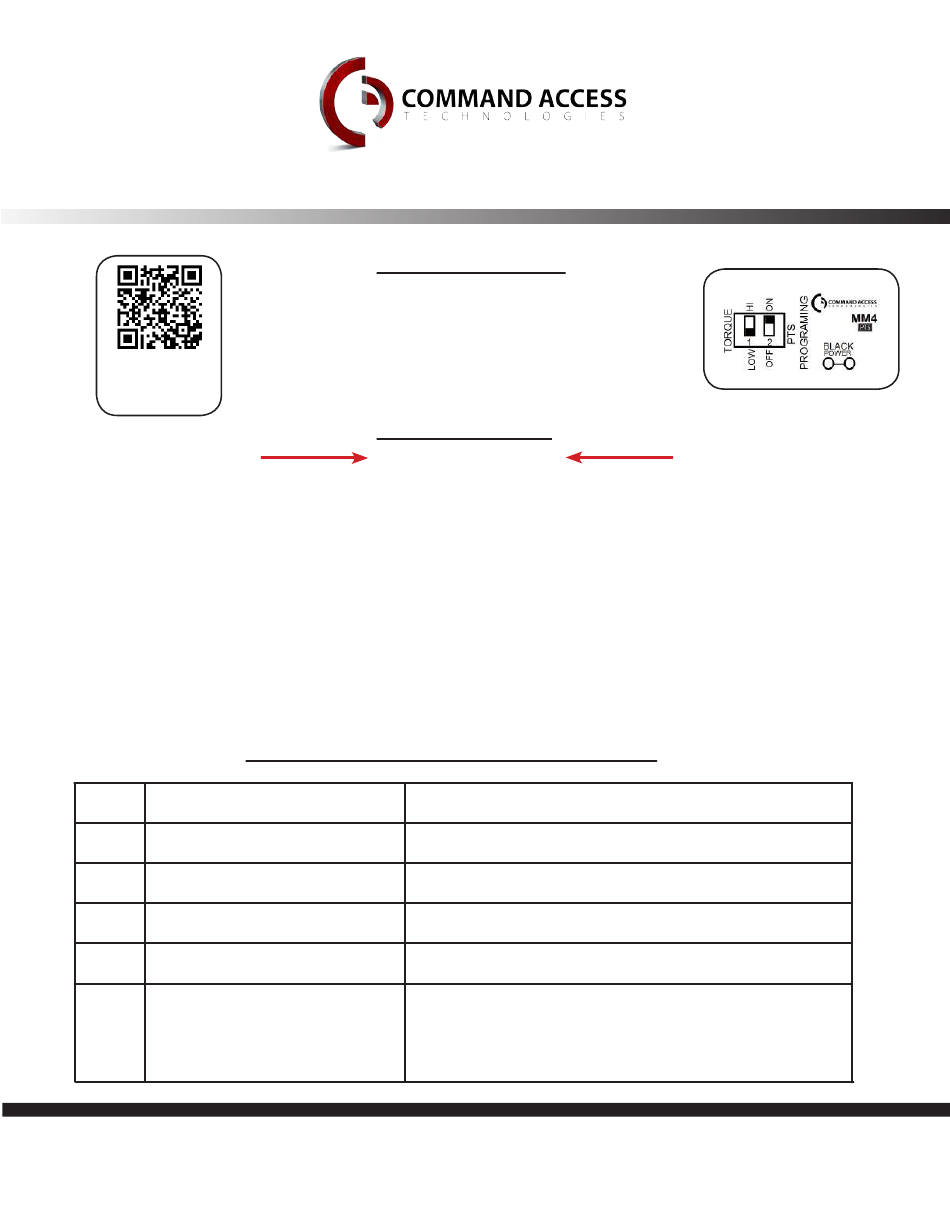

Specifications; Troubleshooting And Diagnostics - Command access PD10-M-RIM Installation Instructions Manual

PTS Video
Click or Scan
Step 1
Press the device push pad to the desired setting. (this can be fully
-
depressed or less than fully depressed).
Step 2 While depressing the push pad, apply power. (i.e. presenting the
-
credential to the reader).
Step 3 Continue to keep pad depressed, the device will beep 6 times, roughly
-
5 seconds. After the beeps have stopped, release the pad and now the
adjustment is complete. If not to your liking repeat the three steps. That's
all there is to it.
B
eePS
Over Voltage
2 Beeps
Under Voltage
3 Beeps
4 Beeps Failed Sensor
Forced Release
5 Beeps
Push pad is depressed. Device is
6 Beeps
re-adjusting
Over-travel or mechanical
7 Beeps
obstruction
U.S. Customer Support
1-888-622-2377
T E C H N I C A L I N F O R M A T I O N

Specifications

• Input Voltage: 24VDC +/- 10%
• Average Latch Retraction Current: 1 Amp
• Average Holding Current: 125 mA
• Wire gauge: Minimum 18 gauge
S
**Important
Make sure to set PTS before finishing installation!
t
rouBleShooting
e
xPlanation
Visit our website for more details
www.CommandAccess.com
PtS
etting
Info**
& D
iagnoSticS
S
> 28V unit will shut down. Check voltage & adjust to 24 V.
< 22V unit will shut down. Check voltage & adjust to 24 V.
Verify all 3 sensor wires are installed correctly. Replace sensor if
problem persists by contacting CAT tech support.
Device will automatically re-engage within 5 seconds.
Check to make sure the push pad is not stuck or catching on
anything.
If mechanical obstruction, remove & push pad down until
beeping stops to reset. If no obstruction, the pad may have
been pushed in too far during PTS calibration. Recalibrate
with the pad slightly out. If problem persists, verify the
magnet is within 1/4" of the sensor at the end of travel.
MM4 Label
olution
Canada Customer Support
1-855-823-3002
