Specifications
Operating Voltage:
Input Wires to PWM202HO:
Output Wires from PWM202HO:
Power Supply:
Wire Run Guidelines:
For best results we recommend that your maximum wire run not exceed the following:
18ga.= 700' 16ga. = 1000' 14ga. = 1250' 12ga. = 1500'.
Note: A longer wire run than the maximum distances listed may result in an increased delay time
and possible solenoid "drop out" due to voltage drop.
Hook up:

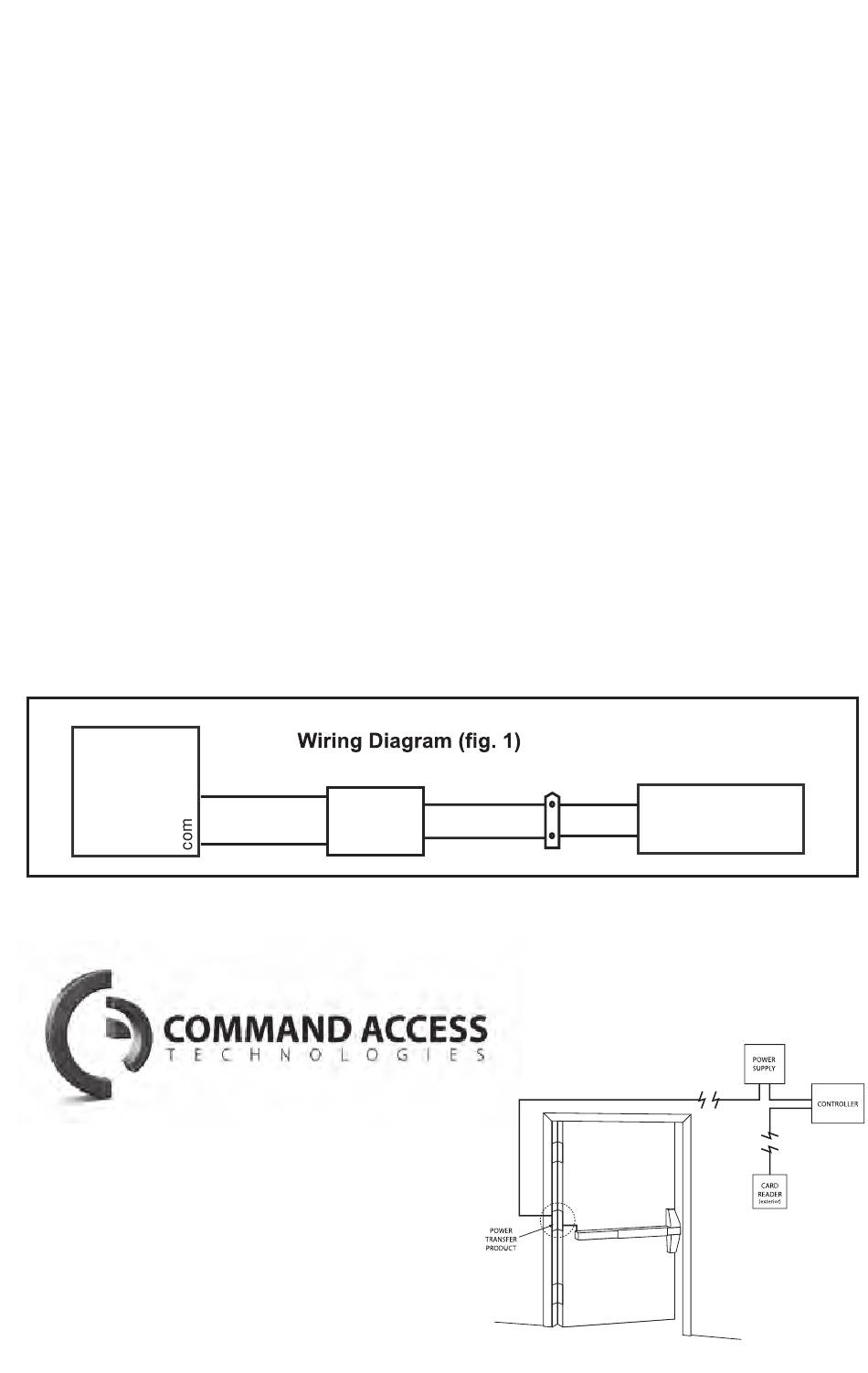

The unit comes with an easy plug-in connector that connects to the solenoid and an easy plug-in
connector for the red & black wires that connect to the positive and negative leads from the power
supply (see fig. 1).
Polarization note:
The unit is polarized. In the event the input leads (red & black) are reversed the PWM202HO will
not work. Simply reverse the leads and the unit should function correctly.
PS1N
Power
+
Supply
22901 La Palma Ave.
Yorba Linda, CA 92887
P: 888-6-ACCESS
F: 888-622-2302
www.commandaccess.com
info@commandaccess.com
PWM202 HO Wiring Instructions
26.5V +/- 15%
Red (+), Black (-)
Yellow (+), Green (-)
PS1N
red
+
PWM202 HO
black
_
Step #7
yellow
green
Solenoid
Installation Flow Chart
