Technical Information; Specifications; Setting Pts; Troubleshooting & Diagnostics - Command access PD15-UL-M Instructions Manual

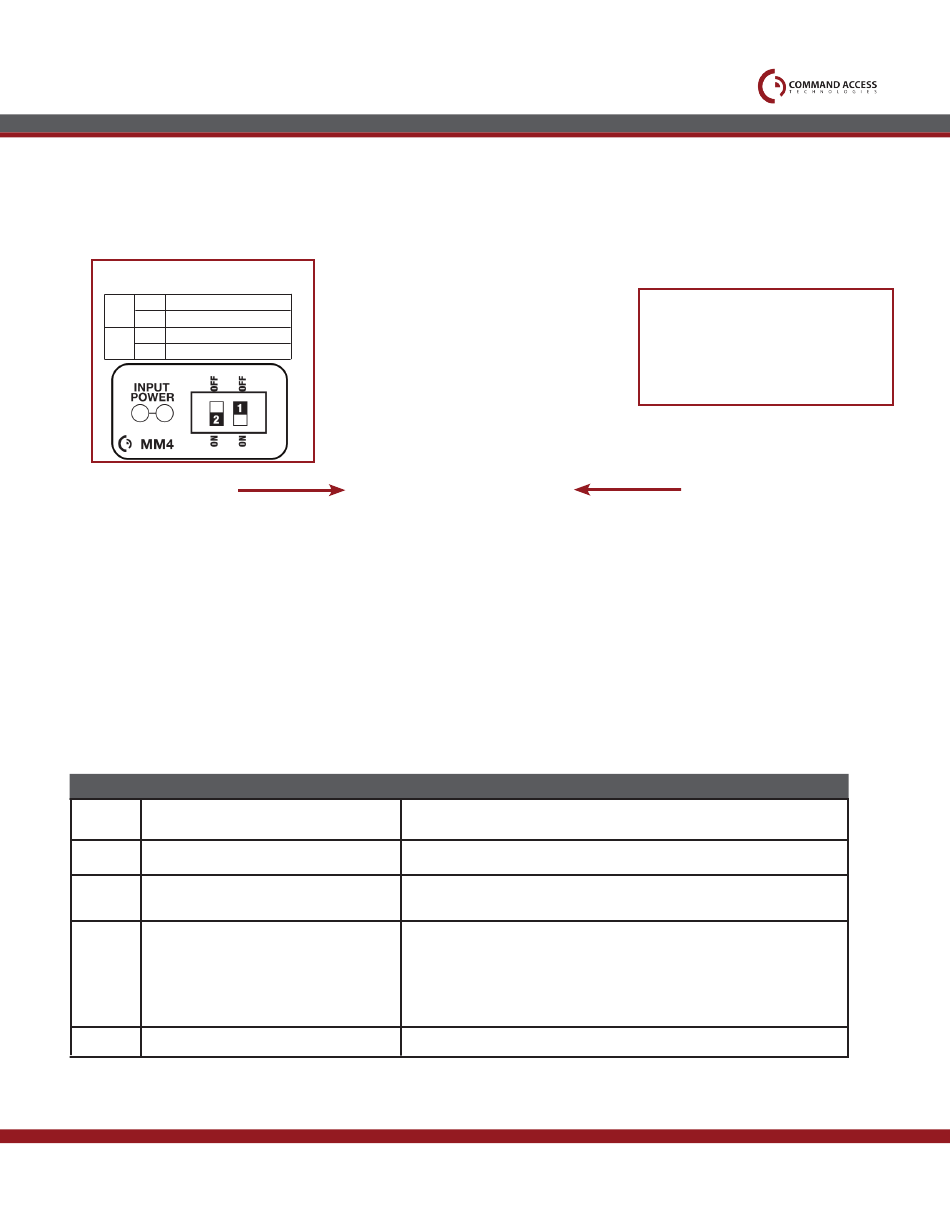

MM4 Switches
off
STANDARD TORQUE
1
on
HIGH TORQUE
on PTS PROGRAMMING ON
2
off
PTS PROGRAMMING LOCKED
Make sure to set PTS before finishing installation
Step 1
• Select your preferred torque mode (ships in standard torque) Press the device push pad to the
desired setting. (Recommend to fully depress and release 5%, giving the device room for changing
door conditions.)
Step 2
• While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Step 3
• Continue to keep pad depressed, the device will beep 6 times. After the beeps have stopped, release the
pad and now the adjustment is complete. If not to your liking repeat the 3 steps.
Step 4
• Once you've found the correct location, flip the dip switch to off to lock programming.
Troubleshooting & Diagnostics
Beeps
Explanation
2 Beeps Over Voltage
3 Beeps Under Voltage
4 Beeps Failed Sensor
5 Beeps Retraction or dogging failure
PUSH TO SET
6 Beeps
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2

Technical Information

SPECIFICATIONS

• Input Voltage: 24VDC +/- 10%
• Wire gauge: Minimum 18 gauge
• Direct wire run - no relays or
access control units in-between
power supply & module

Setting PTS

**Important Info**
> 30V unit will shut down. Check voltage & adjust to 24 V.
< 20V unit will shut down. Check voltage & adjust to 24 V.
Verify all 3 sensor wires are installed correctly. Replace sensor if
problem persists by contacting office.
After 1st fail: 5 beeps then immediately attempts to retract again.
After 2nd fail: 5 beeps with pause in-between for 30 seconds then
device attempts to retract again.
After 3rd fail: 5 beeps every 7 minutes, device will not attempt to
retract.
Device is recording it's new position and power mode after the 6th beep.
Solution
To Reset: Depress bar for 5 seconds at any time.
Standard Torque Mode
Average Latch Retraction Current: 1 Amp
Average Holding Current: 215 mA
High Torque Mode
Average Latch Retraction Current: 2 Amp
Average Holding Current: 250 mA
