S
pecificationS
• Input Voltage:
• Wire gauge: Minimum 18 gauge
Low Torque Mode
•
Average Latch Retraction Current: 600 mA
•
Average Holding Current: 150 mA
Standard Torque Mode- S
•
Average Latch Retraction Current: 900 mA
•
Average Holding Current: 215 mA
High Torque Mode
•
Average Latch Retraction Current: 2 Amp
•
Average Holding Current: 250 mA
Step 1
Press the device push pad to the desired setting. (Recommend to fully depress and
-
release 5%, giving the device a little room for changing door conditions.)
Step 2
While depressing the push pad, apply power. (i.e. presenting the credential to the
-
reader).
Step 3
Continue to keep pad depressed, the device will beep 6 times. After the
-
beeps have stopped, release the pad and now the adjustment is complete.
If not to your liking repeat the three steps. That's all there is to it.
B
e
eepS
xplanation
Over Voltage
2 Beeps
Under Voltage
3 Beeps
4 Beeps
Failed Sensor
5 Beeps
Retraction or Dogging
failure
6 Beeps
Push to Set
U.S. Customer Support
1-888-622-2377

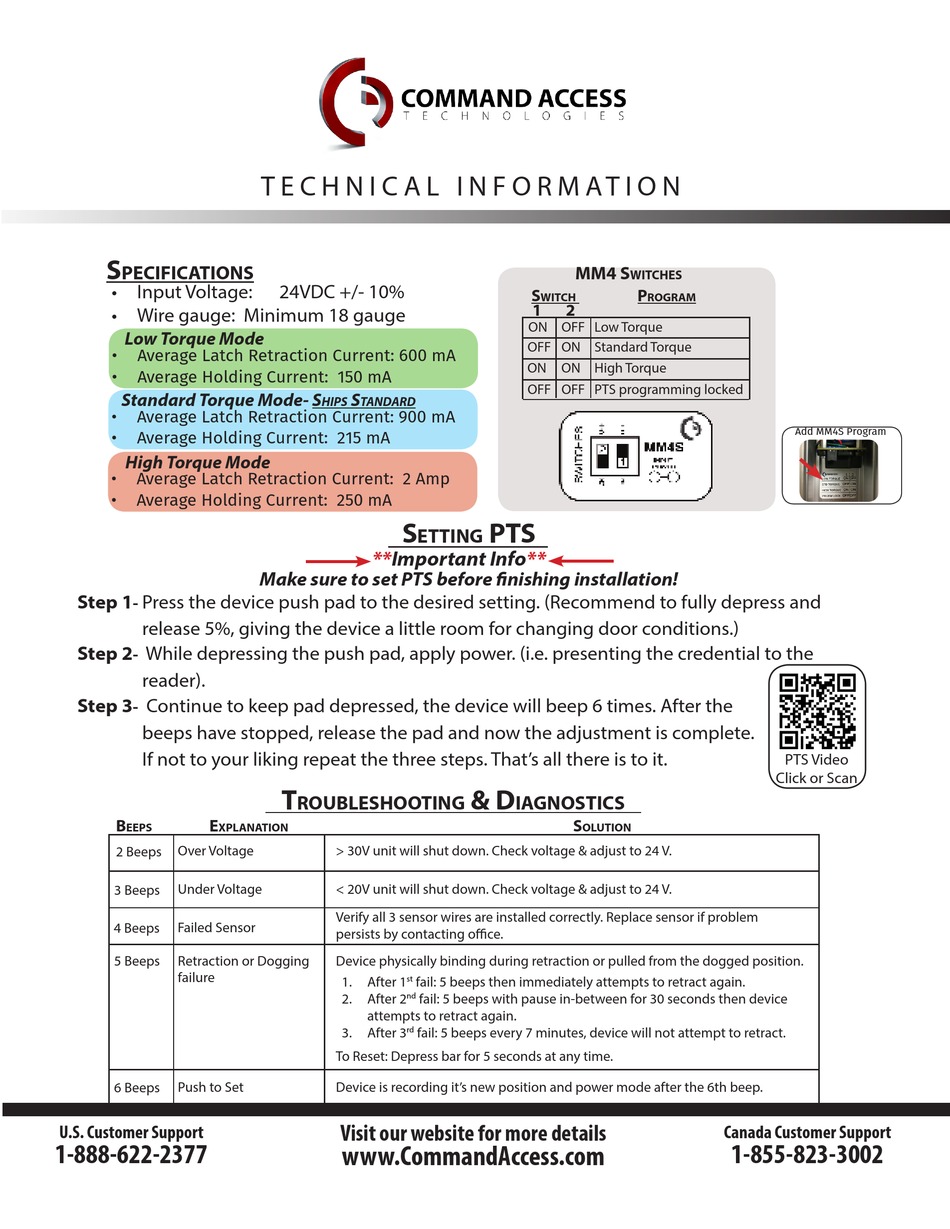

T E C H N I C A L I N F O R M A T I O N
24VDC +/- 10%
S
hipS
tandard
S
etting
**Important
Make sure to set PTS before finishing installation!
t
rouBleShooting
> 30V unit will shut down. Check voltage & adjust to 24 V.
< 20V unit will shut down. Check voltage & adjust to 24 V.
Verify all 3 sensor wires are installed correctly. Replace sensor if problem
persists by contacting office.
Device physically binding during retraction or pulled from the dogged position.
1.
After 1
fail: 5 beeps then immediately attempts to retract again.
st
2.
After 2
fail: 5 beeps with pause in-between for 30 seconds then device
nd
attempts to retract again.
3.
After 3
fail: 5 beeps every 7 minutes, device will not attempt to retract.
rd
To Reset: Depress bar for 5 seconds at any time.
Device is recording it's new position and power mode after the 6th beep.
Visit our website for more details
www.CommandAccess.com
MM4 S
witcheS
S
p
witch
rogram
1
2
ON
OFF
Low Torque
OFF
ON
Standard Torque
ON
ON High Torque
OFF
OFF
PTS programming locked
ptS
Info**
& D
iagnoSticS
S
olution
Add MM4S Program
sticker
PTS Video
Click or Scan
Canada Customer Support
1-855-823-3002
