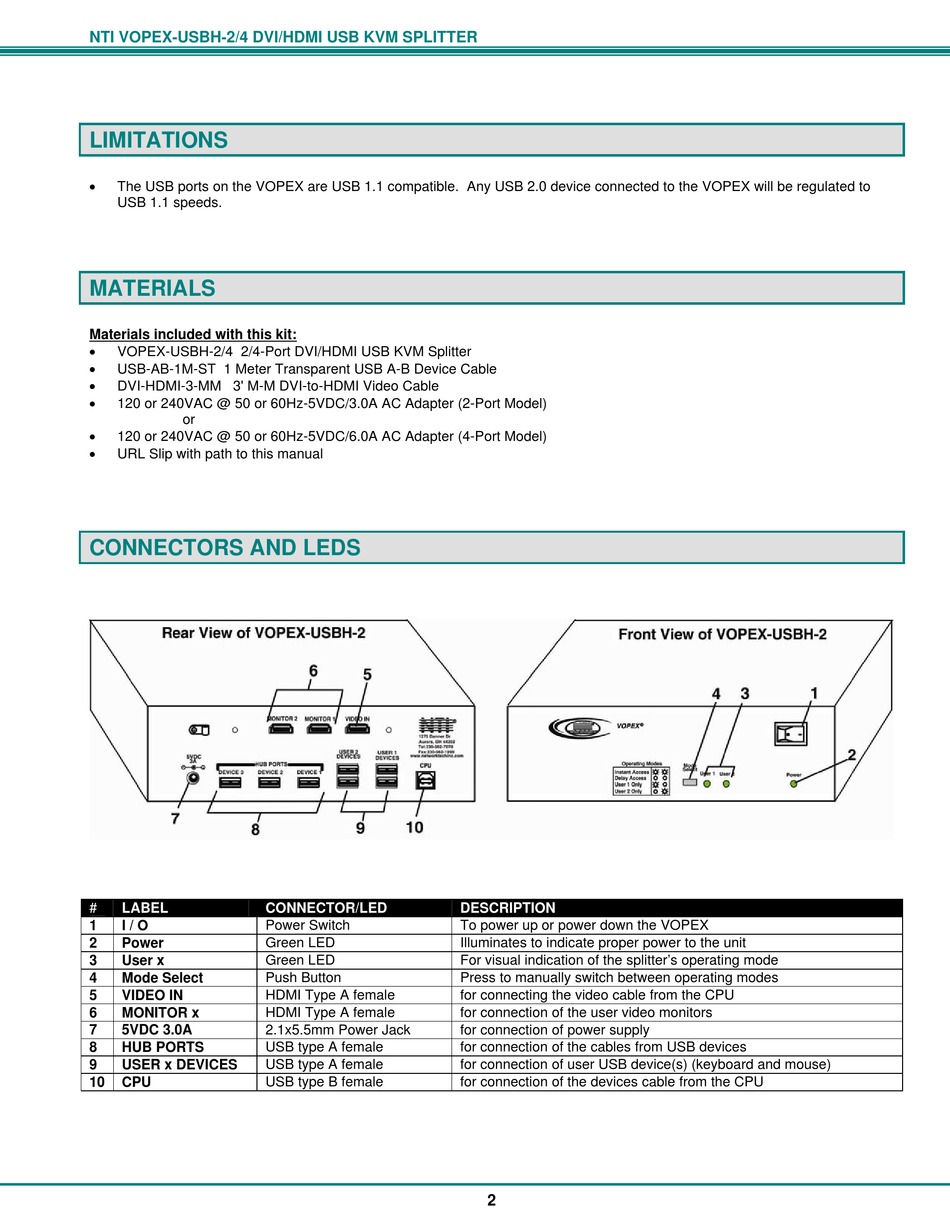

Limitations; Materials; Connectors And Leds - NTI VOPEX Series Installation And Operation Manual

NTI VOPEX-USBH-2/4 DVI/HDMI USB KVM SPLITTER

LIMITATIONS


The USB ports on the VOPEX are USB 1.1 compatible. Any USB 2.0 device connected to the VOPEX will be regulated to
USB 1.1 speeds.

MATERIALS

Materials included with this kit:

VOPEX-USBH-2/4 2/4-Port DVI/HDMI USB KVM Splitter

USB-AB-1M-ST 1 Meter Transparent USB A-B Device Cable

DVI-HDMI-3-MM 3' M-M DVI-to-HDMI Video Cable

120 or 240VAC @ 50 or 60Hz-5VDC/3.0A AC Adapter (2-Port Model)
or

120 or 240VAC @ 50 or 60Hz-5VDC/6.0A AC Adapter (4-Port Model)

URL Slip with path to this manual

CONNECTORS AND LEDS

#
LABEL CONNECTOR/LED
1 I / O Power Switch
Green LED
2 Power
3 User x Green LED
Push Button
4 Mode Select
HDMI Type A female
5 VIDEO IN
6 MONITOR x HDMI Type A female
2.1x5.5mm Power Jack
7 5VDC 3.0A
8 HUB PORTS USB type A female
USB type A female
9 USER x DEVICES
10 CPU USB type B female
DESCRIPTION
To power up or power down the VOPEX
Illuminates to indicate proper power to the unit
For visual indication of the splitter's operating mode
Press to manually switch between operating modes
for connecting the video cable from the CPU
for connection of the user video monitors
for connection of power supply
for connection of the cables from USB devices
for connection of user USB device(s) (keyboard and mouse)
for connection of the devices cable from the CPU
2
