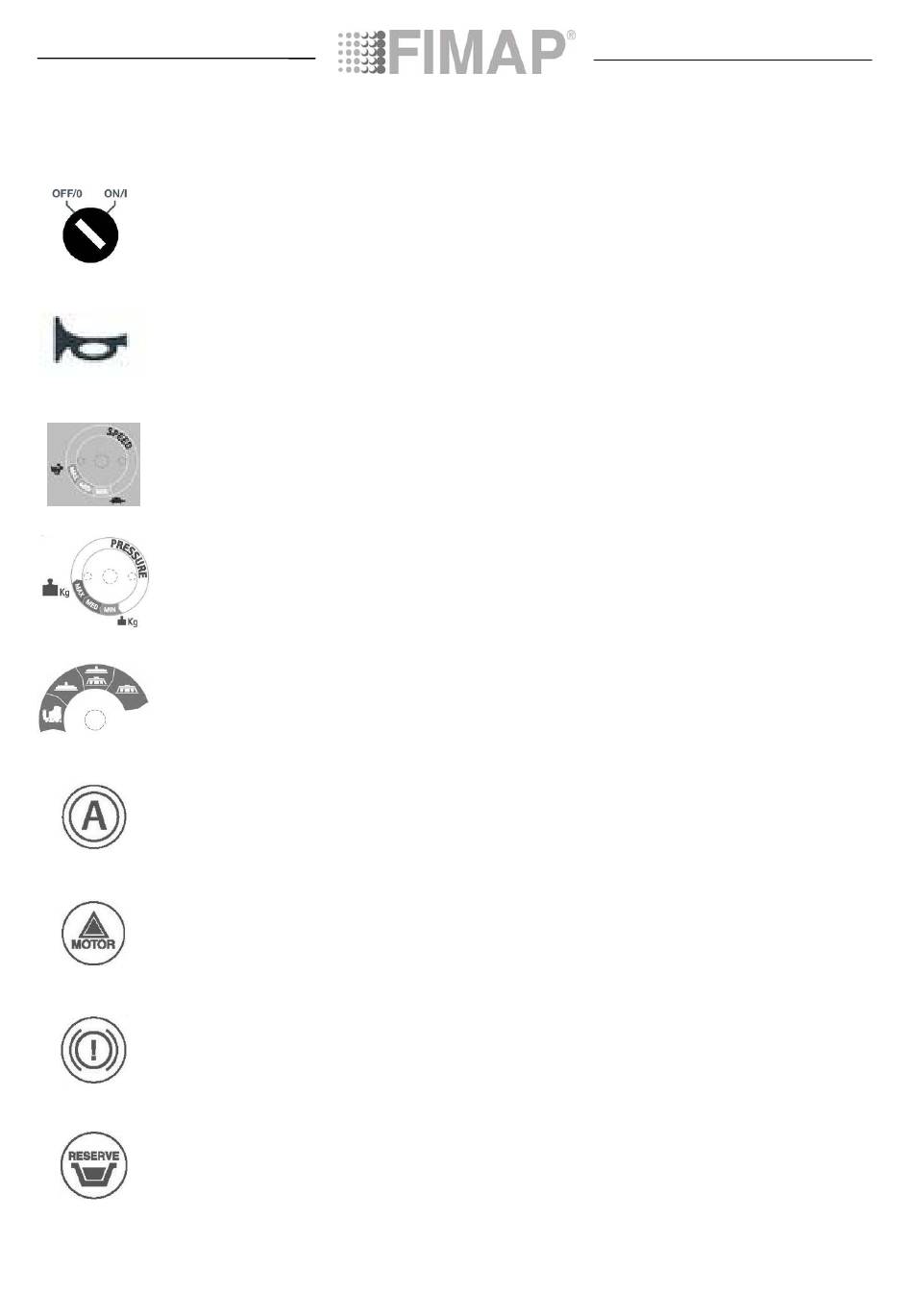

SYMBOLS USED ON THE MACHINE

Main switch or key switch symbol
Used on the instrument panel, to indicate the key switch for machine operation on (ON-I) or off (OFF-0)
Symbol denoting horn
Used to indicate the acoustic alarm button
Symbol denoting forwards and backwards speed selector
Used on the instrument panel, to indicate the speed of the forwards or backwards movements of the machine
Symbol denoting pressure applied to the brushes
Used to indicate the knob for increasing the brush pressure
Brush head / squeegee operating symbols
Used to indicate the I-DRIVE programs selector
Symbol denoting incorrect functioning
Used on the instrument panel to indicate the red warning light showing incorrect machine traction functioning
Symbol denoting ammetric check of the brush motor
Used on the instrument panel, for the red indicator light showing the brush motor is under pressure (force)
Symbol denoting parking brake engaged or incorrect braking system fluid level
Used on the instrument panel to indicate the red warning light showing the engagement of parking brake or the absence of oil in
the work braking system
Symbol denoting solution tank empty
Used on the instrument panel to indicate the red warning light showing a low level of water/detergent solution in the solution
tank
